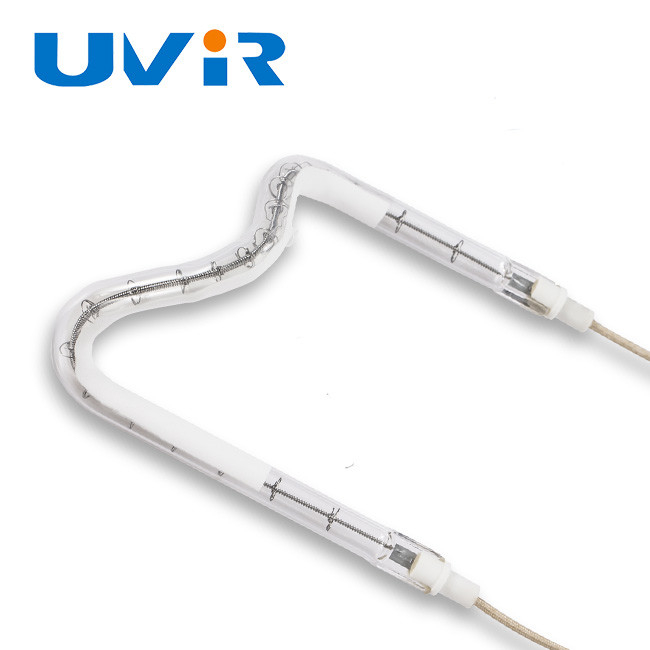

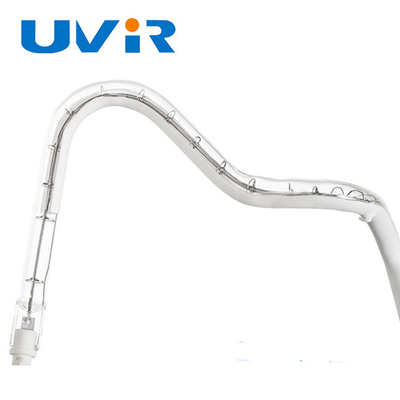

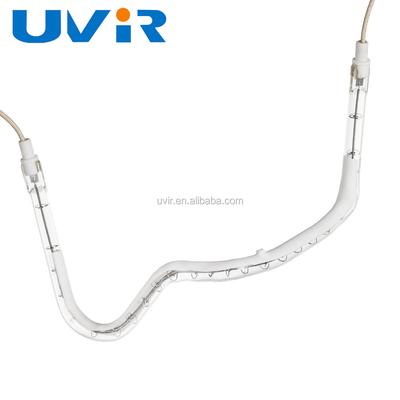

230V 1500W 3D Halogen Heating Tube Short Wave Infrared Lamp

230V 1500W 3D Halogen Heating Tube Short Wave Infrared Lamp

Brand Name:	UVIR
Model Number:	SHW300081
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,MoneyGram,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Name::

3d Halogen Heating Tube Emitter Lamp

Shape::

3D Linear

Voltage::

230V

Material::

Glass

Color::

Transparent

Tube Material::

High Quality Tube

Working Lifetime(Hour)::

5000h

Specification::

Short Wave Infrared Lamp

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

1500W Heater Halogen Tube

Heater Halogen Tube 3D Linear

230V Short Wave Ir Lamps

Product Description

230V 1500W Heater Halogen Tube, 3D Linear Short Wave IR Lamps

Product Specifications

Name	3D Halogen Heating Tube Emitter Lamp
Shape	3D Linear
Voltage	230V
Material	Glass
Color	Transparent
Tube Material	High Quality Tube
Working Lifetime	5000 Hours
Specification	Short Wave Infrared Lamp

Product Description

230V 1500W 3D Halogen Heating Single Tube Short Wave White Emitter Lamp Infrared Heating Lamp

UVIR 14-year Manufacturer infrared heating lamp. Contact us for custom printing options.

Main Design Characteristics

Manufactured from imported high-end quartz tube
Long service life: 5000 hours for mid-temp and low-temp models
High efficiency with over 85% heat efficiency at full power
Customizable wavelength, dimensions, filaments to meet requirements
Energy saving design with lower consumption and better heating results

Available Parameters

Voltage (V)	Wattage (W)	Quartz Tube (mm)	Shape	Reflector	UVIR NO.	FRIMO NO.
115	510	10	U	Gold	SHG300049	284343
230	800	10	U	Gold	SHG300052	293640
115	710	10	U	Gold	SHG300054	282014
230	1100	10	U	Gold	SHG300053	283932
230	1330	10	U	Gold	SHG300166	294058
115	600	10	L	Gold	SHG300050	282106
115	520	10	3D	Gold	SHG300043	282094
230	880	10	3D	Gold	SHG300042	282093
230	1100	11*23	L	Gold	SHG300039	282002
230	2800	11*23	L	Gold	SHG300038	281997
230	2200	10	3D	Gold	SHG300045	282009
230	2200	10	3D	Gold	SHG300046	282008
230	2000	10	3D	Gold	SHG3000167	314255
230	910	10	3D	Gold	SHG300056	280727
230	810	10	3D	Gold	SHG300168	200728
230	1320	10	3D	Gold	SHG300037	280773
115	410	10	3D	Gold	SHG300169	280770
230	1450	10	3D	Gold	SHG300170	305417
230	1630	10	3D	Gold	SHG300035	305418
230	2290	14	3D	Gold	SHG300171	297058

If you don't see suitable parameters, please contact us. Our professional team can provide custom solutions and technical drawings.

Our Services & Strength

Expert sales teams for accurate communication
Professional technical teams for product development
Technical production teams for assembly line production
Quality inspection teams for rigorous quality control
Experienced after-sales teams for customer support

Safety Precautions

Ensure no flammable, explosive, corrosive gas or conductive dust in the environment
Properly position and fix the heating tube using appropriate metal or ceramic pipe clamps
Handle quartz glass carefully as it's brittle; take protective measures to avoid mechanical damage

Frequently Asked Questions

1. How long shall I wait for quotation? And samples?

We typically provide quotes within 24 hours. Sample delivery takes 5-7 days (longer for custom heating lamps).

2. What is your term of delivery?

We accept FOB, CIF, EXW and other terms - choose the most convenient option for you.

3. What about the lead time for mass production?

MOQ lead time is typically 15-20 days. We recommend inquiring at least two months before your required delivery date.

4. Do you offer guarantee for the products?

Yes - 2 years for heaters and 5000-8000 hours for heating lamps. Custom products have specific guarantee periods confirmed in quotation.

5. Is it OK to print my logo on product?

Yes, with MOQ requirements. We offer discounts for using our Goldisgood brand.

6. Can you do the design for us?

Yes, our professional team can develop designs based on your ideas, images, logo and text requirements.
