5W UV Germicidal Lamp Quartz Glass G23G27 85mm

Brand Name:	UVIR
Model Number:	PL-S5W
MOQ:	100
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Uv Germicidal Lamp

Material:

Quartz Glass

Application:

Home, Hotel, Office, Hospital

Voltage:

34V

Power:

Lifetime:

13000

Place Of Origin:

Guangdong, China

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box.

Highlight:

H Shape Uvc Germicidal Lamp

quartz lamp Uvc Germicidal Lamp

5W Uvc Germicidal Lamp

Product Description

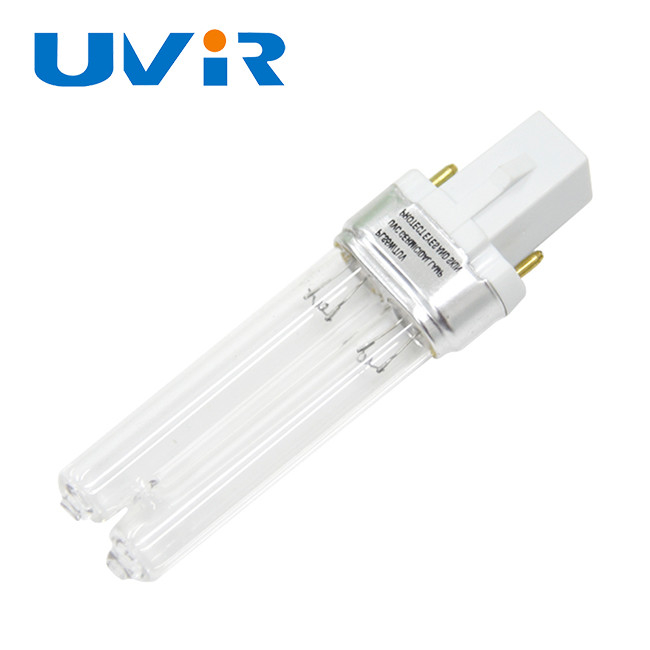

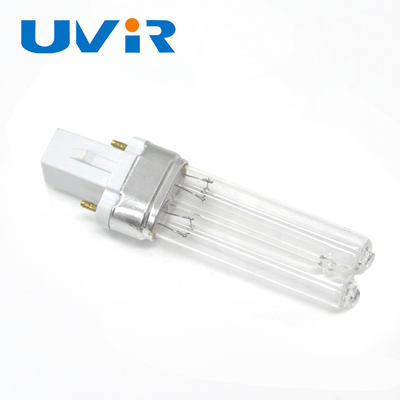

H Shape type 85mm 5W G23G27 UV Germicidal Lamp quartz lamp Uvc Light blub

Product Specifications

Attribute	Value
Product name	Uv Germicidal Lamp
Material	Quartz Glass
Application	Home, Hotel, Office, Hospital
Voltage	34V
Power	5W
Lifetime	13000 hours
Place of Origin	Guangdong, China

Safety Precautions

Important Safety Information

The radiation from UV lamps can be harmful to eyes and skin. Please follow these precautions:

Do not look directly at the UV lamp when it is on. Use ordinary glass as protection if viewing is necessary.
Avoid direct skin exposure to UV radiation.
Keep the tube surface clean to maintain optimal UV output.
Handle the quartz glass with care - avoid touching with bare hands during installation and use.
Clean the lamp with alcohol tampons if dirty stains appear.

Technical Details

Material	Quartz Glass
Diameter	12mm
Power	5W
Voltage	34V
Lamp holder	G23/G27

UV Disinfection Advantages

Compared with traditional disinfection methods, UV disinfection is more comprehensive and simpler to implement.

Comprehensive protection of family and pet health starts with UV germicidal lamp

Product Models

Model No	Diameter	Length (H)	Watt (W)	Voltage (V)	Current (A)	UV Intensity at 1m (uw/cm² W)	Base	Lifetime
PL-S5W	12	85	5	34	180	12 / 1.1	G23/27	13000
PL-S7W	12	115	7	47	175	20 / 1.5	G23/27	13000
PL-S9W	12	145	9	60	170	23 / 2.4	G23/27	13000
PL-S11W	12	214	11	89	160	33 / 3.6	G23/27	13000
PL-S13W	12	155	13	60	290	31 / 3.4	G23/GX23	13000
PL-L18W	17	217	18	60	370	60 / 5.8	2G11	13000
PL-L24W	17	317	24	87	350	90 / 7	2G11	13000
PL-L35W	17	217	35	40	850	105 / 11	2G11	13000
PL-L56W	17	410	36	105	440	120 / 12	2G11	13000
PL-L55W	17	530	55	103	540	170 / 18	2G11	13000
PL-L160W	17	410	60	118	670	170 / 18	2G11	13000
PL-L95W	17	530	95	100	950	305 / 33	2G11	13000

If the parameter is not suitable for you, please contact us. Our professional team can provide customized solutions and technical drawings.

Why Choose Our UV Germicidal Lamps

CE and RoHS certified products
ISO9001 quality management system
Each lamp undergoes individual testing before shipment
1-year warranty with free replacements or repairs
Fast delivery: samples within 5 days, bulk orders within 25 days
Reliable after-sales service
ODM and OEM services available
Low minimum order quantity
24/7 customer support with responses within 24 hours

Usage Guidelines

Goods surface: 5 minutes per session (place items within 4 feet of the lamp)
Small spaces: 5 minutes per session (≤ 50 sq.ft. like shoe cabinets, drawers)
Small rooms: 15 minutes per session (≤ 200 sq.ft. like bathrooms, pet houses)
Larger rooms: 15-60 minutes per session (≤ 400 sq.ft. like kitchens, bedrooms)

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a factory with over 15 years of experience. We welcome visits to our facility.

How can I get samples?

How do I place an order?

Contact our sales team via email or online chat. We'll provide a proforma invoice for your confirmation before processing your order.

Are your products safe?

Our products undergo thorough testing and are certified by international regulatory bodies including CE and RoHS.

Do you offer custom designs?

Yes, we provide OEM and ODM services to realize your product ideas.
