Custom 3D Infrared Heating Tube 720W Short Wave with SCR Regulator

1. Can switch on and off frequently
2. 1~2 seconds fast response time to full power heating
3. Output power can be adjusted simply by voltage regulator (0V~lamp rated voltage)
4. Accurate (±1℃) heating temperature control with SCR regulator
5. Small installation space, flexible horizontal or vertical burning position
6. For all industrial applications, the highest working temperature up to 1000℃
7. Special Gold reflector (90% reflective rate) and Nano-ceramic reflector (70% reflective rate) coated on lamp quartz surface
8. Different objects different matched IR radiation wavelength: Short wave (1.0~1.4μm), Fast response medium wave (1.4~2.0μm), Carbon medium wave (2.0~2.5μm), Medium wave (2.2~3.2μm)
9. Higher density power output: Short wave lamp (200KW/M²), Fast response medium wave lamp (130KW/M²), Carbon medium wave lamp (100KW/M²), Medium wave lamp (60KW/M²)
10. 5000 hours average working life guarantee

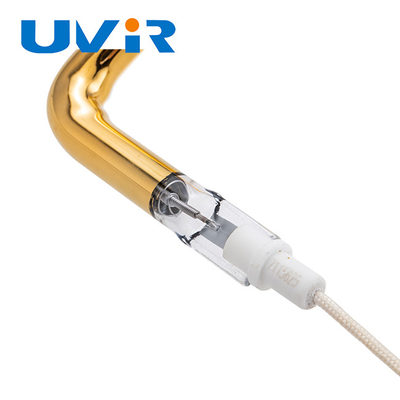

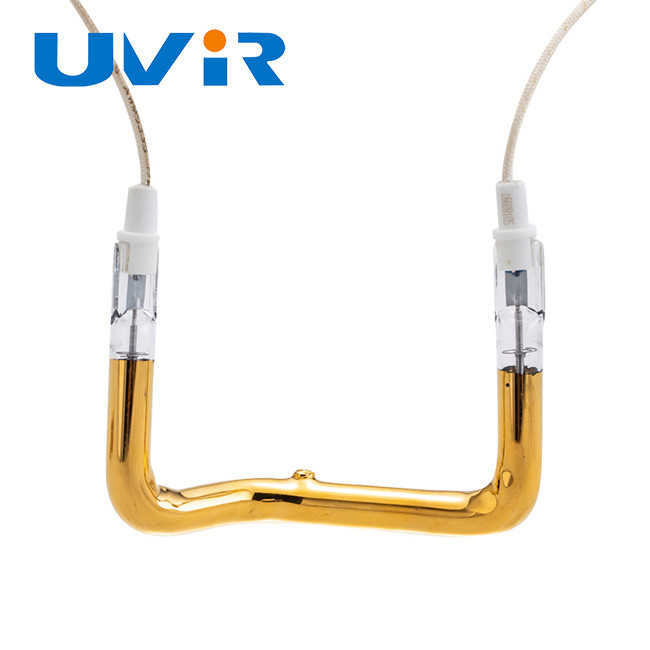

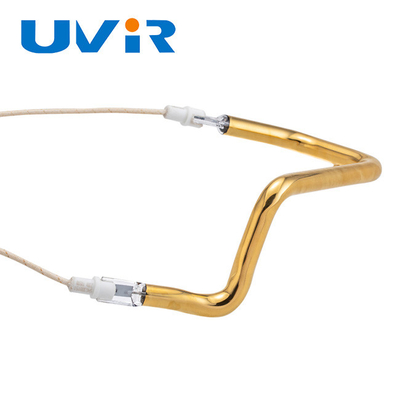

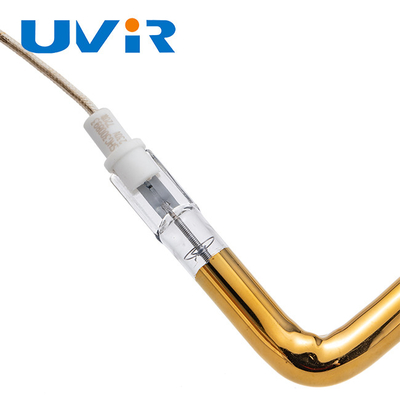

Heatelement Twin-Tube infrared lamps are manufactured from high-quality two single quartz tubes fused together and have a gold reflector for maximum efficiency. The unique design provides the infrared emitters with numerous advantages such as higher radiation density and improved mechanical stability, better focus and so on.

The infrared heaters are available as short-wave, medium-wave and fast response medium-wave infrared emitters. This allows you to choose the optimal wavelength for the material to be heated. Dimensions and filaments of all the infrared emitters are manufactured to match the requirements.

Infrared Heating For Plastics Process: IR drying of coatings on plastics, IR stretching or shrinking plastics, IR Heating For Plastic Packaging, IR heating for blow moulding of PET bottles

Infrared Heating For Photovoltaic Industry: IR heating for string soldering, IR preheating for sputtering processes

Infrared Heating For Printing Industry: IR curing ink on cloth, IR drying for inkjet-based CTP plates, IR drying of printing products

Infrared Heating For Food And Chemical Industry: IR heating for disinfection of tableware, IR heating of chicken and vegetables, IR heating of natural herbal medicine

Infrared Heating For Glass Industry: IR preheating of car glass, IR drying of coatings on glass, IR heating for manufacturing and cutting laminated glass

Infrared Heating For Textiles Industry: IR drying of coatings on textiles, IR heating for laminating of fabrics

Infrared Heating For Electronic Industry: Coatings on electronic components, The aging of the electronic components
