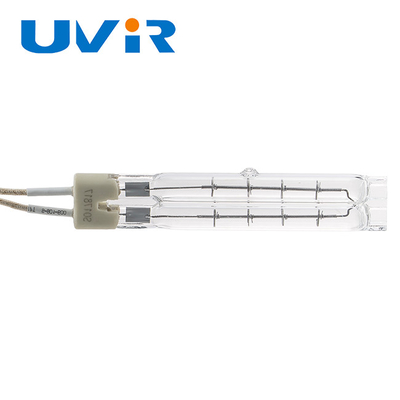

Your Infrared Radiator Customization Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | UVIR |
| Certification: | CE & ROHS |
| Model Number: | THC100029 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Each lamp in a cylinder .Then in a professional plywood box |
| Delivery Time: | 15-20 Work day |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Place Of Origin: | Guangdong, China | Power: | 450W |
|---|---|---|---|
| Voltage: | 115V | Light Source: | Quartz Tube |
| Material: | Quartz | Head Base: | TC01 |
| Dsgn Type: | B | Coating: | Clear |
| Highlight: | 55V Twin Tube Infrared Lamps,400W Twin Tube Infrared Lamps,Clear Quartz Infrared Heat Lamps |
||
Our Services & Strength
* Expert sales teams are responsible for accurate communication.
* Professional technical teams are responsible for new product development.
* Technical production teams are responsible for assembly line production.
* Expert quality inspection teams are responsible for quality inspection.
* Experienced after-sales teams are for all customers.
Product parameters
| Product name | Twin tueb infrared lamp |
| UVIR NO. | THC100029 |
| Voltage | 115V |
| Power | 450W |
| Material | Quartz Glass |
| Color | Clear |
|
Filament Temperature |
1800-2400 ℃ |
| OEM/ODM | many types of voltage,wattage,length,base,cables,universal burning position is available |
Main components of a twin tube infrared lamp:
1. Fused silica
2. Tungsten heating elements
3. Supports for heating wire
4. End plate and ceramic end
5. Wire leads ,
6. Reflective layer. Shown: gold layer
7. Proprietary gas composition.
Product details
High quality raw material:
Combining high-quality transparent quartz tube materials and halogen principles,effectively increasing the density of infrared radiation. This achieves the user's ideal heating purpose.
Stock and Standard (Non-Stock) Twin Tu be Short-Wave Lamps
| Voltage V |
Wattage W |
Twin Tube |
Total Length |
Heated Length |
Disgn Type |
Gold | White | Clear |
| 55 | 400 | 11x23 | 115 | 50 | B | THG100151 | THW100025 | THC100026 |
| 115 | 400 | 11x23 | 115 | 50 | B | THG100152 | THW100026 | THC100027 |
| 115 | 450 | 11x23 | 70 | 25 | B | THG100153 | THW100027 | THC100028 |
| 115 | 450 | 11x23 | 72 | 25 | B | THG100154 | THW100028 | THC100029 |
| 115 | 600 | 11x23 | 145 | 80 | B | THG100155 | THW100029 | THC100030 |
| 115 | 900 | 11x23 | 170 | 115 | B | THG100156 | THW100030 | THC100031 |
| 115 | 1000 | 11x23 | 192 | 127 | B | THG100157 | THW100031 | THC100032 |
| 115 | 1100 | 11x23 | 205 | 140 | B | THG100158 | THW100032 | THC100033 |
| 120 | 700 | 11x23 | 140 | 89 | B | THG100159 | THW100033 | THC100034 |
| 120 | 800 | 11x23 | 167 | 102 | B | THG100160 | THW100034 | THC100035 |
| 120 | 1180 | 11x23 | 250 | 150 | B | THG100161 | THW100035 | THC100036 |
| 230 | 1200 | 11x23 | 405 | 340 | B | THG100162 | THW100036 | THC100037 |
| 230 | 1500 | 11x23 | 300 | 200 | B | THG100163 | THW100037 | THC100038 |
| 230 | 2350 | 11x23 | 410 | 355 | B | THG100164 | THW100038 | THC100039 |
| 230 | 3000 | 11x23 | 650 | 500 | C | THG100165 | THW100039 | THC100040 |
| 230 | 500 | 15x33 | 510 | 500 | B | THG100114 | THW100061 | THC100061 |
| 400 | 4800 | 15x33 | 500 | 800 | B | THG100141 | THW100062 | THC100062 |
| 400 | 6200 | 15x33 | 1100 | 1030 | B | THG100002 | THW100063 | THC100063 |
| 400 | 15720 | 15x33 | 850 | 1334 | H | THG100186 | THW100064 | THC100064 |
| 480 | 6000 | 15x33 | 1550 | 1000 | B | THG100140 | THW100065 | THC100065 |
If the parameter is not suitable for you,Please contact me.We have a professional elite team,will provide the professional knowledge and drawings for you!
Product Coding Rule Table
After Sales Service
1. Package tracking
2. Technical support
3. 24 hours working time
4. Discount for reorder
5. Replacements for quality problems
6. Confidentiality of customer information
OEM Service
We can advise the customer choosing the right heat lamp for the specific application. Furthermore, the Technical Department can design the right lamp based on the customer’s specific technical instructions.
We can product many sizes and types heat lamp according to customers requirement, and so on.If have drawing is beat, then we can do samples for you.
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 5-7 days, about 30 days for mass production.
Q3. Do you have any MOQ limit?
A: Usually MOQ is 2pcs for each model.
Q4. How do you ship the goods?
A: We usually ship by DHL, UPS, FedEx or TNT for sample. Airline and sea shipping for large quantity
Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system
Secondly, during the guarantee period, we will send the replacement in next order.
