Your Infrared Radiator Customization Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | UVIR |
| Certification: | CE & ROHS |
| Model Number: | RHC800304 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Each lamp in a cylinder .Then in a professional plywood box |
| Delivery Time: | 5-8 Work day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Product Name: | Ring Tube Ir Emitters | Input Voltage(V): | 220V |
|---|---|---|---|
| Reflector: | White Coating | Warranty(Year): | 1 Year |
| Power: | 300W | Customized: | Yes |
| Tube Diameter: | 8mm | Place Of Origin: | Guangdong, China |
| Highlight: | 606nm Ring Infrared Heating Element Tube,Ring Infrared Heating Element Tube 230W |
||

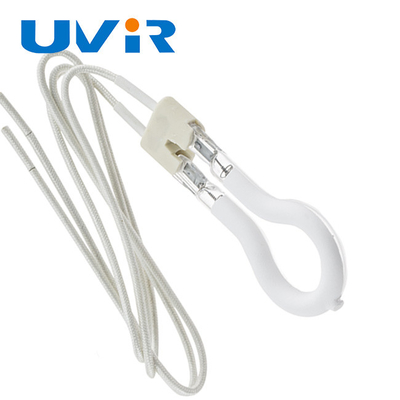

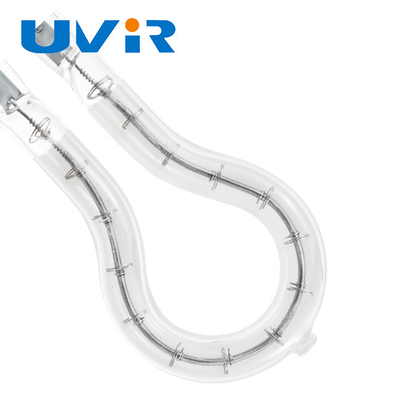

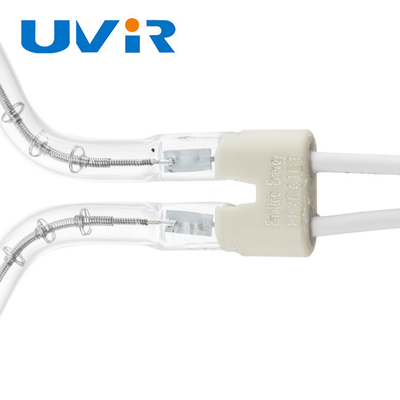

39mm Ring type Infrared Heating Element Tube 220W 300W For Heating plastic parts
| Plastics | • Bottle blowing | Wood & Composites | • Drying |
| • Thermoforming | • Curing | ||
| • Plastic forming | • Powder coating | ||
| • Welding | Shoes & Fabrics | • Drying | |
| • Serigraphy | • Curing | ||
| • Strapping | • Strapping | ||
| Paper | • Drying | Metal | • Coil coating |
| • Copying | • Powder coating | ||
| • Offset printing | Paint | • Automobile repair shops | |
| • Ink jet | • Powder coating | ||
| • Serigraphy | Animal care | • Breeding and rearing of animals | |
| Food | • Food catering | • Veterinary clinics, zoos,pet shops and beauty parlors | |
| • Food processing |
Why Reflector
All of our emitters can be coated with a layer of gold or ceramic as reflectors. The gold/ ceramic coating can concentrate the heat, increasing the effectiveness of the heat output. The emitters with coating are highly economical, converting practically all the consumed electrical power into heat. For the emitters with high watt density or the surface temperature of the tube above 800°C , we suggest to use ceramic coating as
reflector because the temperature resistance is up to 1000°C In addition to 180° (half-tube) coating, we also provide customer specified degrees.
Application
Infrared heating is a kind of radiation heating. It spreads by a kind of infrared radiation (light)-- infrared light from material in the form of molecular (atomic) resonance absorption, so as to achieve the purpose of heating. It can be applied in many fields such as the heating process of industry coating, plastic forming, automotive industry, glass making, spinning, solar PV, food baking, drying of printing inks, quick drying of primer and paint on furniture, printed circuit, and so forth.
QUICK CONNECT RING 39 mm
Stock and Standard (Non-Stock) Ring Short-Wave 0 =39 mm Quick Connect Lamps
| 1 | 115 | 200 | 8 | RHC800300 | RHG800300 | RHG800306 | RHG800312 |
| 2 | 115 | 200 | 10 | RHC800301 | RHG800301 | RHG800307 | RHG800313 |
| 3 | 115 | 450 | 8 | RHC800302 | RHG800302 | RHG800308 | RHG800314 |
| 4 | 220 | 200 | 8 | RHC800303 | RHG800303 | RHG800309 | RHG800315 |
| 5 | 220 | 300 | 8 | RHC800304 | RHG800304 | RHG800310 | RHG800316 |
| 6 | 220 | 450 | 8 | RHC800305 | RHG800305 | RHG800311 | RHG800317 |
Product details:
Product Coding Rule Table:
After Sales Service
1. Package tracking
2. Technical support
3. 24 hours working time
4. Discount for reorder
5. Replacements for quality problems
6. Confidentiality of customer information
FAQ
2. could you supply clamps for lamp installing ?
Yes, we will provide mounting clamps for clients, and the corresponding clamps quantity with purchased lamps are supplied freely bu us.
3. What information should i provide when enquire?
Lamp’s type, Total length,Heating length ,Wattage,Voltage,Ceramic end connection ,Lead length in mm (Standard lead wire length 300 mm),Coating available - Gold coating / Ceramic coating, quantity, it couldn’t be better if there is drawing or picture can be provided.
But if it is a new project or it is the first time for you to use infrared emitter, just tell us about your application in details like object material, required working temperature, required time, heating size..
