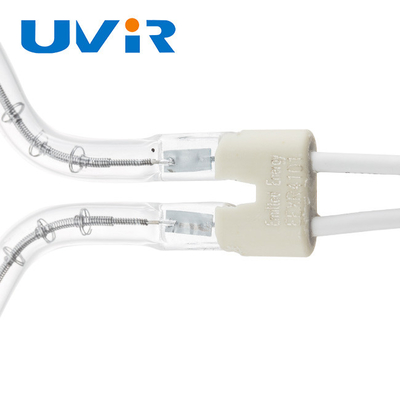

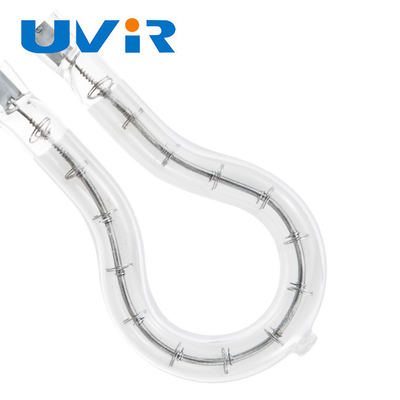

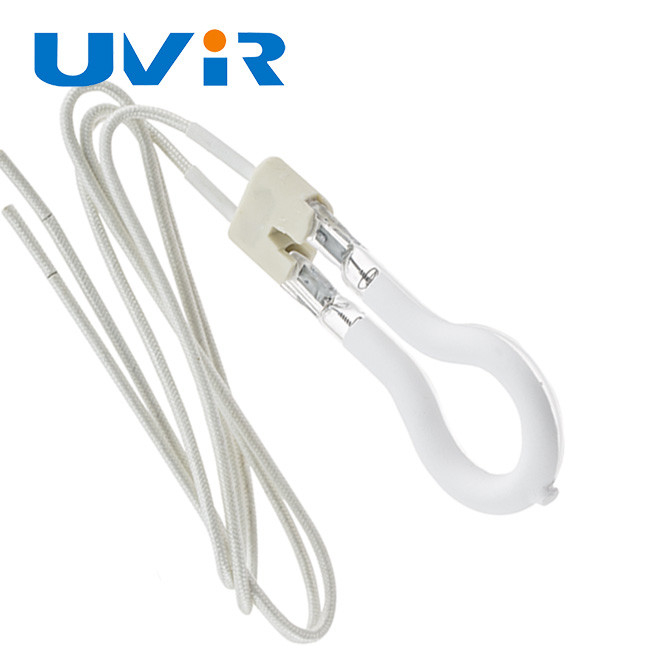

39mm Ring Infrared Heating Tube 300W for Plastic Parts

39mm Ring Infrared Heating Tube 300W for Plastic Parts

Brand Name:	UVIR
Model Number:	RHC800304
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Product Name:

Ring Tube Ir Emitters

Input Voltage(V):

220V

Reflector:

White Coating

Warranty(Year):

1 Year

Power:

300W

Customized:

Yes

Tube Diameter:

8mm

Place Of Origin:

Guangdong, China

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

606nm Ring Infrared Heating Element Tube

Ring Infrared Heating Element Tube 230W

Product Description

39mm Ring type Infrared Heating Element Tube 220W 300W For Heating plastic parts

Product Specifications

Product name	ring tube ir emitters
Input Voltage(V)	220V
Reflector	White Coating
Warranty(Year)	1 Year
Power	300W
Customized	Yes
Tube diameter	8mm
Place of Origin	Guangdong, China

Product Description

Applications

Plastics

Bottle blowing
Thermoforming
Plastic forming
Welding
Serigraphy
Strapping

Wood & Composites

Drying
Curing
Powder coating

Shoes & Fabrics

Drying
Curing
Strapping

Paper

Drying
Copying
Offset printing
Ink jet
Serigraphy

Metal

Coil coating
Powder coating

Paint

Automobile repair shops
Powder coating

Animal care

Breeding and rearing of animals
Veterinary clinics, zoos, pet shops and beauty parlors

Food

Food catering
Food processing

Reflector Technology

All of our emitters can be coated with a layer of gold or ceramic as reflectors. The gold/ceramic coating can concentrate the heat, increasing the effectiveness of the heat output. The emitters with coating are highly economical, converting practically all the consumed electrical power into heat.

For emitters with high watt density or surface temperature above 800°C, we recommend ceramic coating as reflector because its temperature resistance is up to 1000°C. In addition to 180° (half-tube) coating, we also provide customer specified degrees.

Technical Specifications

No.	Voltage	Wattage	Tube Diameter	Model 1	Model 2	Model 3	Model 4
1	115	200	8	RHC800300	RHG800300	RHG800306	RHG800312
2	115	200	10	RHC800301	RHG800301	RHG800307	RHG800313
3	115	450	8	RHC800302	RHG800302	RHG800308	RHG800314
4	220	200	8	RHC800303	RHG800303	RHG800309	RHG800315
5	220	300	8	RHC800304	RHG800304	RHG800310	RHG800316
6	220	450	8	RHC800305	RHG800305	RHG800311	RHG800317

After Sales Service

Package tracking
Technical support
24 hours working time
Discount for reorder
Replacements for quality problems
Confidentiality of customer information

Frequently Asked Questions

What parameters are needed when purchasing a lamp?

Input Voltage, Lamp Wattage, Total Length, Heated Length, Tube Diameter, Reflector, Lead wire.

Do you supply clamps for lamp installation?

Yes, we provide mounting clamps for clients, and the corresponding clamps quantity with purchased lamps are supplied freely by us.

What information should I provide when making an inquiry?

Lamp's type, Total length, Heating length, Wattage, Voltage, Ceramic end connection, Lead length in mm (Standard lead wire length 300 mm), Coating available - Gold coating / Ceramic coating, quantity. If available, please provide a drawing or picture.

For new projects or first-time infrared emitter users, please describe your application in detail including object material, required working temperature, required time, and heating size.
