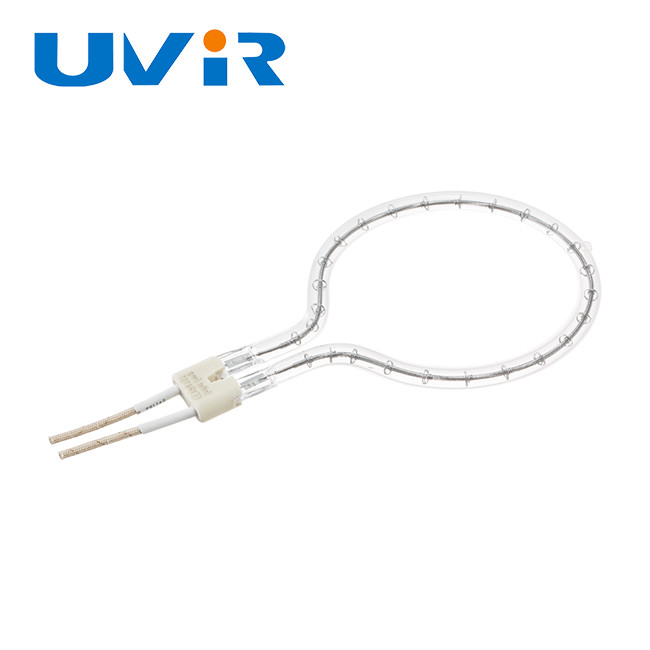

230V 1850W Clear Quartz Tube Ring Infrared Lamp

230V 1850W Clear Quartz Tube Ring Infrared Lamp

Brand Name:	UVIR
Model Number:	RHC800025
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Place Of Origin::

Guangdong, China

Color::

Clear

Material::

Quartz Tube

Type::

Infrared Heater

Voltage::

230V

Reflector::

CLEAR / Ceramic White

Power:

1850W

IR Diameter:

102mm

Tube Diameter:

8mm

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

Gold Reflector Ring Infrared Lamps

575V Ring Infrared Lamps

Product Description

Customized Clear High Quartz Tube Ring Infrared Lamps 230V Heat Impact Resistance

Product Specifications

Attribute	Value
Place of Origin	Guangdong, China
Color	Clear
Material	Quartz Tube
Type	Infrared Heater
Voltage	230V
Reflector	CLEAR / Ceramic White
Power	1850W
IR Diameter	102mm
Tube Diameter	8mm

Key Advantages

Economy: Compact and lightweight design reduces production facility costs with long lamp life minimizing maintenance expenses.
Heat Impact Resistance: Quartz glass envelope provides superior resistance to thermal shock compared to standard incandescent lamps.
High Efficiency: Quartz glass construction delivers high luminous output per watt with minimized tungsten filament evaporation.
Long Life: Halogen cycle technology extends service life to approximately twice that of conventional incandescent lamps.
Stable Color Temperature: Maintains consistent light intensity and color temperature throughout lamp lifespan.
Fast Response: Achieves maximum radiation output in 40-50 seconds with rapid cool-down when switched off.

Technical Parameters

Pipe Diameter: 8mm | IR Diameter: 102mm | Voltage: 230V | Power: 1850W

Wavelength: Short wave, medium wave, long wave

Coating: Gold/White/Clear

Shape: Ring, oval, omega, etc. (Custom shapes available)

Standard Product Specifications

Voltage (V)	Power (W)	Tube Dia. (mm)	IR Dia. (mm)	Angle (°)	Model Numbers
115	250	8	39	0	RHC800023	RHG800063	RHG800064	RHG800065
120	650	10	32	90	RHC800028	RHG800078	RHG800043	RHG800093
230	1500	8	80	0	RHC800024	RHG800066	RHG800067	RHG800068
230	1850	8	102	90	RHC800025	RHG800025	RHG800025	RHG800025
230	2000	8	154	90	RHC800026	RHG800072	RHG800073	RHG800074

Custom specifications available - Contact our team for professional consultation and technical drawings.

Common Applications

Heating: Space heaters, saunas, electric hot tables, incubators, brooders, farm greenhouses
Automotive: Primer/color/powder coating, seat de-wrinkling, headliner forming
Plastics: Welding, forming, softening, curing, drying
Printing: Ink drying, silk screening, bindings, glue drying
Food Processing: Baking, browning, dehydrating, pasteurizing
Textiles: Web drying, finishing, pre-shrinking
Glass-Ceramics: Heating safety glass, drying mirrors, drying frit

OEM Services

Our technical team can assist in selecting or designing the optimal heat lamp for your specific application requirements. We manufacture customized sizes and types of heat lamps based on customer specifications. Technical drawings are welcome for precise customization.
