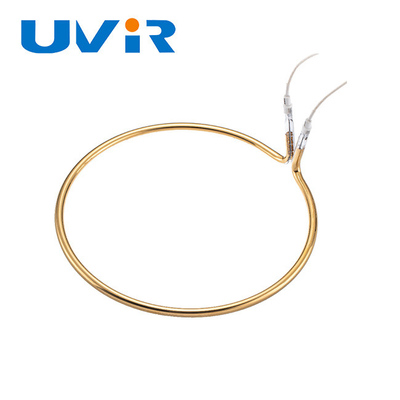

1850W Gold Coated Ring Infrared Heater Lamp 102mm

1850W Gold Coated Ring Infrared Heater Lamp 102mm

Brand Name:	UVIR
Model Number:	RHG800025
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Ring Diameter::

102mm

Reflector::

Gold

Quartz Tube::

8mm

Wattage::

1850W

Material::

Quartz Tube

Input Voltage(V)::

230

Place Of Origin:

Guangdong, China

Application:

Heating Plastic Parts

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

Gold Circular infrared heater tube

Tungsten Circular infrared heater tube

Product Description

Gold Coating Circular Infrared Heater Tube Halogen Tungsten Filament Lamp Tube

Product Specifications

Attribute	Value
Ring Diameter	102mm
Reflector	Gold
Quartz Tube	8mm
Wattage	1850W
Material	Quartz Tube
Input Voltage	230V
Place of Origin	Guangdong, China
Application	Heating plastic parts

Product Description

Gold Circular Dry-Burning Tungsten Filament Infrared Electric Heating Lamp With Coating

Application: Passing a rotating object through a ring, elliptical or omega-shaped radiator can achieve single-radiator heating of the entire rotating object. These specially shaped radiators are ideal for automatic industrial production equipment, including welding, bending, and plastic parts heating applications.

Infrared Heat Lamp Advantages

Long service life: Over 5000 hours
Fast reaction time: Achieves full power output in 1-2 seconds
Energy efficient: Gold and ceramic coating maximizes infrared radiation reflection up to 90%
Compact design: Smaller footprint with superior heating performance
Environmentally friendly: Non-toxic with no risk of contamination

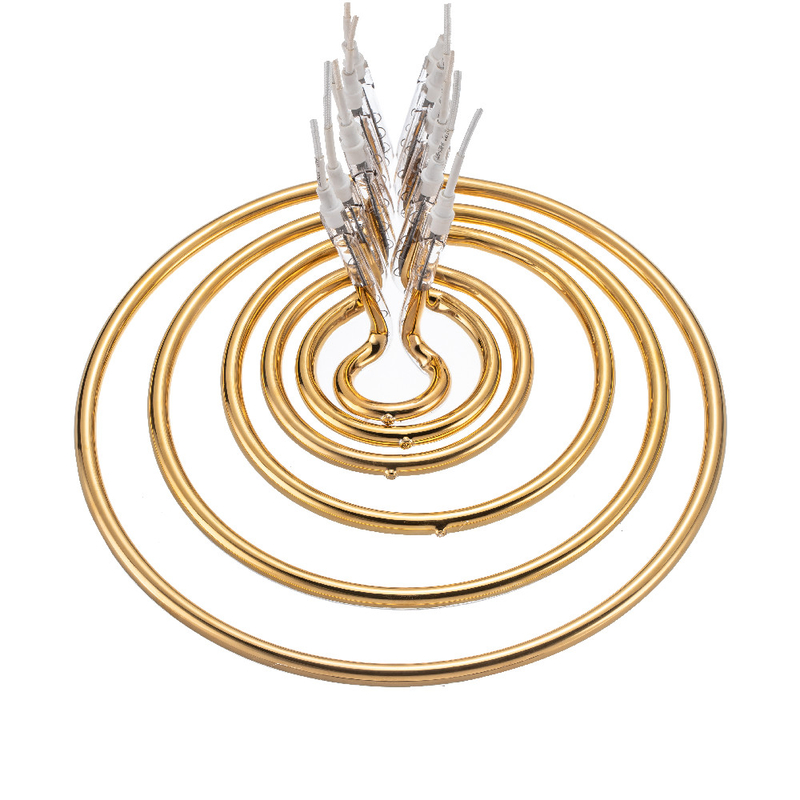

Ring Tube IR Lamps - Special Designs for Circular & 3D Surfaces

Ring diameter range: 39mm to 600mm
Voltage range: 24V to 575V
Short, medium, and long-wave IR designs available
Multiple tube color options
Tube diameter options: 8mm to 14mm (selected based on heater diameter and voltage/wattage requirements)
Standard stock items available for immediate delivery
Custom and OEM designs available

Product Details

Product Name	Ring tube infrared lamp
UVIR No.	RHG800025
Voltage	230V
Wattage	1850W
Coating	Gold

Stock and Standard (Non-Stock) Short-Wave Ring Lamps

OEM Service

Our technical team can advise on selecting the optimal heat lamp for your specific application and design custom solutions based on your technical requirements. We manufacture various sizes and types of heat lamps to customer specifications.

Frequently Asked Questions

Q1: Are you factory or trading company?

A: We are a trading company with our own factory.

Q2: Can I have a sample first before bulk order?

A: Yes, we provide free samples for quality testing (customer covers freight).

Q3: What's your delivery date?

A: 5-7 working days for samples; 15-25 days for bulk orders.

Q4: What's your shipping methods?

A: Express (DHL, FedEx, etc.), air freight, or sea freight options available.

Q5: What's your MOQ?

A: Minimum order quantity is 2 pieces; sample orders can be less than 100 pieces.

Q6: Are the products safe enough?

A: Our products are thoroughly tested and certified by internationally recognized safety organizations.
