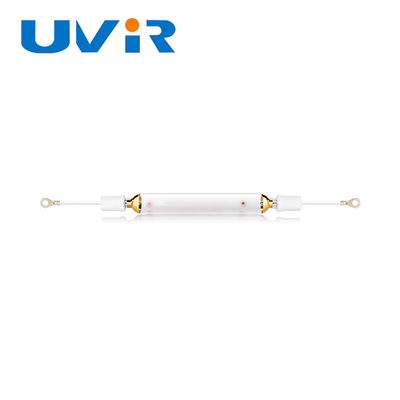

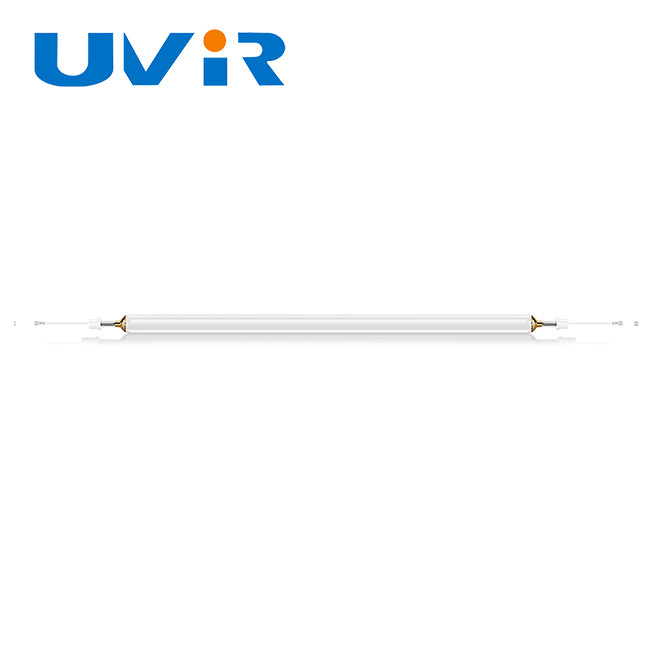

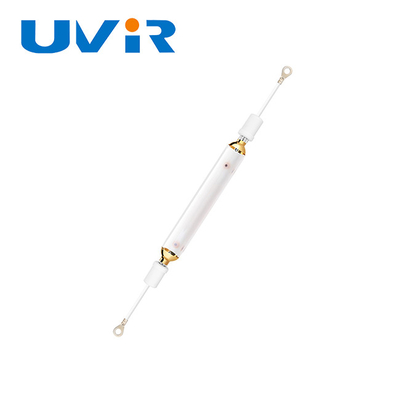

7KW Metal Halide UV Curing Lamp 365nm for Wood Coating

7KW Metal Halide UV Curing Lamp 365nm for Wood Coating

Brand Name:	UVIR
Model Number:	-
MOQ:	10
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Voltage:

928V

Power:

780mm

End Caps:

Ceramic / Metal

Application:

Electronic Components ,Printing，Furniture,Decorative Materials And Other Industries Curing

Lamp Base:

Total Length (mm):

780

Type:

Mercury Lamp

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box.

Highlight:

Ultra Violet Curing Lamp 7KW

Metal Halide Ultra Violet Curing Lamp

Wood Base Coating metal halide lamps

Product Description

Metal Halide Ultra Violet Curing Lamp 7KW For Wood Base Coating

Product Specifications

Attribute	Value
Voltage	928V
Power	780mm
End caps	Ceramic / metal
Application	Electronic components, Printing, Furniture, Decorative materials and other industries curing
Lamp Base	HC
Total Length (mm)	780
Type	Mercury lamp

Product Description

Ultra Violet Curing Metal Halide Lamp for wood base coating and electronic product coating applications.

Technical Details

Metal Halide technology with additives (iron, lead, gallium, indium) for deep UV curing
Ideal for PCB, wood-based coating, electronic product coating, optical fiber manufacturing
High Quality Quartz Tubing with 99% UV light transmittance
Ceramic lamp base resistant to high temperatures

Lamp Parameters

Parameter	Value
Power output	7KW
Wavelength	365nm
Arc length	780mm
Material	High Quality Quartz Tube
End caps	Ceramic / metal
Service life	800 to 1000 hours

Key Features

High Quality Quartz Tubing: High temperature resistance, slow UV attenuation, UV light transmittance up to 99%, and long lamp life.

High Quality Ceramic: Lamp base made of high-quality ceramic materials, resistant to high temperatures and not easy to age.

Product Models and Specifications

Model No.	Power (KW)	Voltage (V)	Current (A)	Total Length (mm)	Arc length (mm)	Tube Φ (mm)	Lamp Base	Wave Peak
XUV 005004 FC	0.4	90	5	115	50	17	FC	365nm
XUV 020010 BC	1	135	8	335	200	22	BC	365nm
XUV 025020 AC	2	300	7.5	400	250	22.5	AC	365nm
XUV 025030 AC	3	700	5	360	250	25	AC	365nm
XUV 025040 DC	4	320	14	330	250	25	DC	365nm
XUV 070056 BC	5.6	950	7.2	825	700	25	BC	365nm
XUV 050060 AC	6	850	7.8	640	500	22.5	AC	365nm
XUV 065070 HC	7	928	7.4	780	653	22.5	HC	365nm
XUV 100080 BC	8	850	9	1172	1028	22.5	BC	365nm
XUV 124096 AC	9.6	1500	8	1387	1247	25	AC	365nm

Professional Curing Solutions

We provide customized UVA-UVB-UVC-UVV spectrum solutions with technical support and design services for painting, coating, glue, paint ink, UV curing, air purification, water treatment, and UV photochemical reactions.

After Sales Service

Package tracking
One year guarantee
Technical support
Discount for reorder
Replacements for quality problems
Confidentiality of customer information

Frequently Asked Questions

Q1: Are you factory or trading company?

A: We are trading company with factory.

Q2: Can I have a sample first before bulk order?

A: Yes. We offer you free sample to test the quality, you only undertake the freight.

Q3: What's your delivery date?

A: 5-7 working days for samples and 15-25 days for bulk order.

Q4: What's your shipping ways?

A: 1. By Express: TNT, DHL, FedEX, UPS, EMS, etc... Door to door
2. By Air: Please let us know your airport.
3. By Sea: Please let us know your delivery port.

Q5: What's your MOQ?

A: Our MOQ is 100pcs. First order as samples can be less than 100 pcs.

Q6: Are the products safe enough?

A: Our products have been tested thoroughly and are certificated by numerous internationally recognized regulatory bodies and safety organizations.
