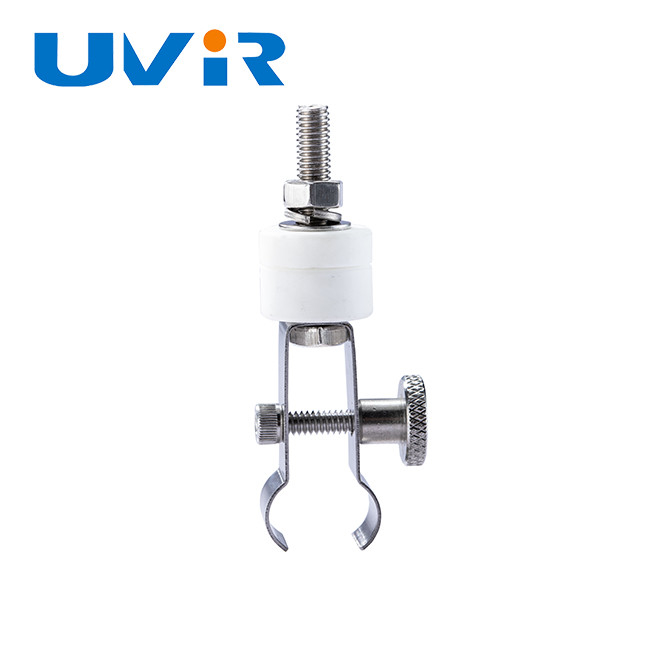

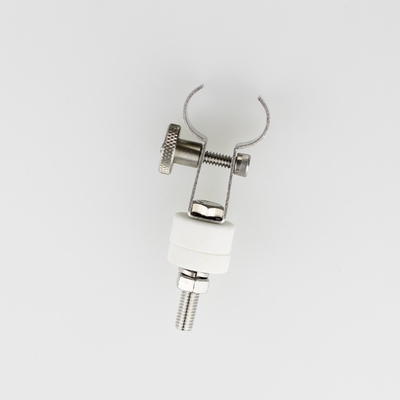

14mm IR Lamp Holder , twin tube short wave Infrared Heat Lamp Holder

14mm IR Lamp Holder , twin tube short wave Infrared Heat Lamp Holder

CLAMPS FOR SHORT WAVE TWIN L AMPS

Twin Tube Cross- Section	a	b	c	d	e	M	UVIR  N0.
	10	23	25	25	10	M5 x 20	GJ0002
	15	33	30	25	15	M5 x 25	GJ0003

Product Details

Operating Instructions

The infrared twin-tube emitter is suited for horizontal operation only. Special IR emitters for vertical installation positions are specially manufactured and marked as such.

To install our IR emitters, usually one mounting and one spring clamp, and if necessary, one or several central supports all manufactured by HNI are to be used.The IR twin-tube emitter must be secured in position of a stable support(steel support plate: > 1.5 mm).

The IR emitter(s) must be assembled in the following order:

1. Drill mounting holes with Φ9.2 mm for clamp.Spring in the support (mounting plate)at distance L.
2.Screw the clamp spring in place with ceramic washers (1) on the mounting plate (4).

3.Press the IR emitter into position in the retaining spring clip. The emitter must point at all the surface to be heated. The gold reflector should be pointing towards the support plate.
4.Tighten the fastening nuts (2) on the knurled nut (3).

Pulling the lead wire must not cause any tension on the press seal. Bending radius of lead wire: > 30 mm

Mounting dimensions:
L = Overall length of emitter LG:2x35 mm (two-sided connection) or
L = Overall length of emitter LG:35 mm -20 mm (one- sided connection)

If the following overall emitter lengths are exceeded for LG, a central support is necessary:
Tube dimensions:23 x 11, LG >1 500 mm and tube dimensions 34x14, LG > 2000 mm

After installation, the quartz glass tube of the IR emitter must be cleaned on the side without gold plating. For this purpose, please use the cleaning cloth included in our delivery or a clean linen cloth (without textile finishing agents) soaked in methylated spirit (such as rubbing alcohol) to remove any impurities/soiling or fingerprints from the surface.
