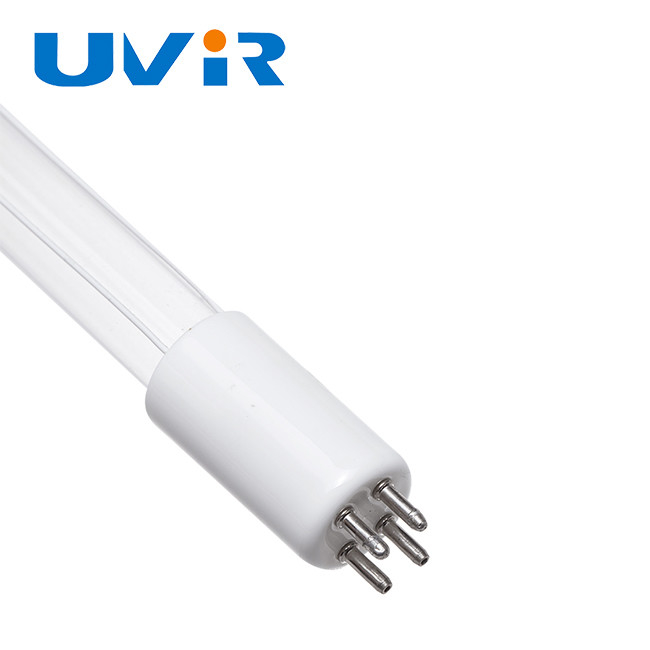

145W 4PIN T5 UVC Germicidal Lamp 1554mm for Air Water Disinfection

145W 4PIN T5 UVC Germicidal Lamp 1554mm for Air Water Disinfection

Brand Name:	UVIR
Model Number:	GPH1554T5L/HO
MOQ:	100
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

End Material:

Ceramic

Warranty(Year):

1-Year

Lenght:

1554mm

Lifespan (hours):

10000-13000h

Color Of End:

White

Application:

Home, Medical, Hotel, Office, Air Purification And Water Treatment

Type:

4PIN Germicidal UV Light

Base Type:

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box.

Highlight:

145W UVC Germicidal Lamp

School UVC Germicidal Lamp

800Ma Germicidal Ultraviolet Light Bulbs

Product Description

145W UVC Germicidal Lamp, 800mA Germicidal Ultraviolet Light Bulbs For School

Product Specifications

End material	Ceramic
Warranty	1-Year
Length	1554mm
Lifespan	10000-13000 hours
Color of end	White
Application	Home, Medical, Hotel, Office, Air purification and water treatment
Type	4PIN Germicidal UV Light
Base Type	T5

Product Description

145W High Output 800mA Germicidal Light Tube UV For School Hospital Disinfection

Ultraviolet Light Types: Ozone vs. Non-Ozone

Non-Ozone UV Lamps: Only disinfect areas directly exposed to UV light; cannot penetrate blocked areas
Ozone UV Lamps: Provide ultraviolet + ozone double sterilization, reaching even blocked areas for complete disinfection

Specification Details

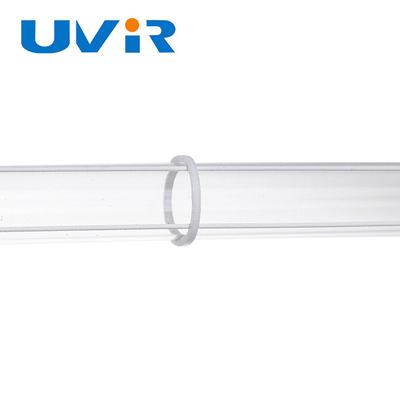

Main body material: High quality Quartz glass
Ends material: Ceramic, aluminum, plastic
Color: Clear tubes with customizable end colors
Customizable: Tube voltage and wattage available per request
Type: Single end or Double-end configurations
Average Lifetime: 10000-13000 hours

Technical Specifications

Product name	4 PIN Double End For UV germicidal lamp
Model NO.	GPH1554T5L/HO
Overall Length	1554mm
Wattage	145W
Diameter	15mm
Ultraviolet intensity at 1 meter	400uw/cm2
Current	800mA
Lifetime	10000-13000hrs

Key Features

Higher wave penetration rate and greater UV intensity
Quartz material construction for extended lifespan

HIGH OUTPUT Technology

HO (High Output) type increases power without lengthening the lamp through enhanced filament design, modified inflation, and increased current.

Product Models

Model	Length (mm)	Wattage	Diameter (mm)	Current (mA)
GPH212T5L/HO	212	18	15	800
GPH287T5L/HO	287	27	15	800
GPH357T5L/HO	357	32	15	800
GPH436T5L/HO	436	48	15	800
GPH793T5L/HO	793	72	15	800
GPH846T5L/HO	846	80	15	800
GPH893T5L/HO	893	90	15	800
GPH1148T5L/HO	1148	120	15	800
GPH1554T5L/HO	1554	145	15	800

Applications

Residential: Water and air purification for kitchens and air ducts
Industrial: Water sterilization for pools and fish tanks, air purification for hospitals and laboratories
Professional: Waste water treatment to improve water utilization efficiency

Safety Caution

UVC rays are harmful to eyes and skin - never look directly at the lamp when illuminated
People, pets, and plants must leave the area during operation
After use, ventilate the room for 15 minutes before re-entry

Frequently Asked Questions

Can I have a sample order?

Yes, we welcome sample orders to test quality. Mixed samples are acceptable.

What about the lead time?

Samples require 5-7 days, mass production about 30 days.

Do you have any MOQ limit?

Minimum order quantity is typically 100 pieces per model.

How do you ship the goods?

Samples ship via DHL/UPS/FedEx/TNT. Large quantities via air or sea freight.

How to proceed with an order?

1. Share your requirements
2. Receive our quote
3. Confirm samples and place deposit
4. We arrange production

How to deal with faulty products?
