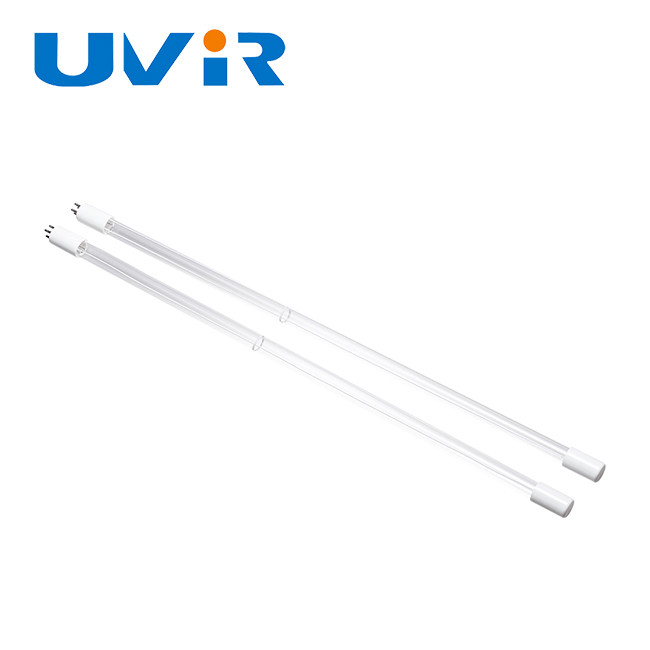

120W T5 UVC Germicidal Lamp 1148mm Quartz Glass 4-Pin

Name: 120W T5 UVC Germicidal Lamp 1148mm Quartz Glass 4-Pin
Brand: Guangdong Youhui Technology Co., Ltd.
SKU: GPH1148T5L/HO
Price: 3.00 USD
Availability: InStock

Brand Name:	UVIR
Model Number:	GPH1148T5L/HO
MOQ:	100
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Keyword:

Single End 4-pin UV Lamp

Base Type:

Working Time:

10000-13000h

Lenght:

1148mm

Lamp Tube Material:

High Quality Quartz

Warranty(Year):

1-Year

Color Of End:

White

Application:

Home, Medical, Hotel, Office, Air Purification And Water Treatment

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box.

Highlight:

Quartz UVC Germicidal Lamp

uv bactericidal lamp 120W

GPH1148T5L

Product Description

GPH1148T5L Bactericidal UVC Germicidal Lamp 120W Quartz Glass tube

Product Specifications

Attribute	Value
Keyword	Single end 4-pin UV lamp
Base Type	T5
Working time	10000-13000h
Length	1148mm
Lamp tube material	High quality quartz
Warranty	1-Year
Color of end	White
Application	Home, Medical, Hotel, Office, Air purification and water treatment

Product Description

GPH1148T5L/HO 4Pins Ultraviolet Bactericidal Light Electric Quartz Glass UV Lamps 120W T5 UV Lamp Tube

This UVC germicidal lamp features a quartz tube construction that effectively emits ultraviolet wavelengths of 254nm for disinfection. Optional 185nm wavelength models produce ozone for enhanced water purification.

Key Features

Four-pin, single-ended UV germicidal lamp design
Constructed with high quality quartz glass
Average lamp life of 10,000 hours
Available in ozone-free (254nm) and ozone-generating (185nm) variants

Technical Specifications

Product Name	4 PIN Double End For UV germicidal lamp
Model NO.	GPH1148T5L/HO
Overall Length	1148mm
Wattage	120W
Diameter	15mm
Ultraviolet intensity at 1 meter	310uw/cm2
Current	800mA
Lifetime	10000-13000hrs

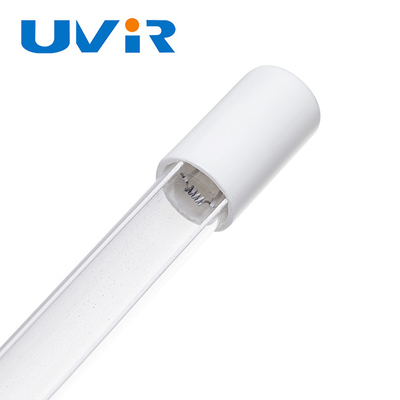

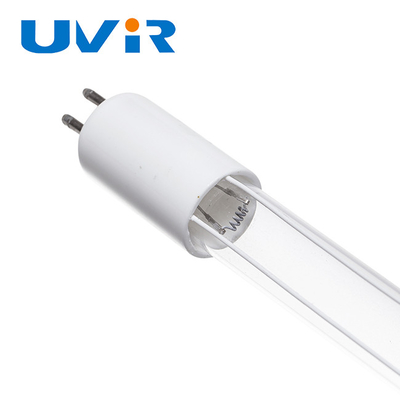

Each end of the tube is made of durable ceramic material, providing excellent insulation, safety, and ease of installation.

HIGH OUTPUT PERFORMANCE

The HO (High Output) series achieves increased power through enhanced filament design, gas inflation, and current optimization without requiring longer lamp dimensions.

Applications

Water treatment for sanitary wastewater and industrial sewage
Sterilization and algae removal in aquariums, farming ponds, and landscape water features

Safety Precautions

Never look directly at operating UV lamps - use protective glass if observation is necessary
Avoid skin exposure to UV radiation
Maintain clean lamp surfaces for optimal performance
Handle quartz glass with care - avoid bare skin contact
Clean only with alcohol wipes when necessary

Frequently Asked Questions

Q1. Can I have a sample order?

A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Samples require 5-7 days, mass production typically takes about 30 days.

Q3. Do you have any MOQ limit?

A: Minimum order quantity is typically 100 pieces per model.

Q4. How do you ship the goods?

A: Samples ship via DHL, UPS, FedEx or TNT. Large quantities ship by air or sea freight.

Q5. How to proceed an order?

A: 1) Provide your requirements 2) We quote 3) Confirm samples and deposit 4) Production begins.

Q6: How to deal with the faulty?

A: Our products undergo strict quality control. During warranty, replacements ship with next order.
