40W T5 UVC Germicidal Lamp 843mm for Air Purification

Name: 40W T5 UVC Germicidal Lamp 843mm for Air Purification
Brand: Guangdong Youhui Technology Co., Ltd.
SKU: GPH843T5L/4P
Price: 3.00 USD
Availability: InStock

Brand Name:	UVIR
Model Number:	GPH843T5L/4P
MOQ:	10
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Type:

Amalgam Lamp With Single Ended 4 Pins

Application:

Home, Medical, Hotel, Office, Air Purification And Water Treatment

Base Type:

Lenght:

843mm

Material:

Quartz Tube

Warranty(Year):

1-Year

Color Of End:

White

Lifespan (hours):

10000-13000h

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box.

Highlight:

GPH843T5L 4P Ultraviolet Uvc Lamp

Ultraviolet Uvc Lamp 40W

Product Description

GPH843T5L/4P Double End 40W T5 Ultraviolet UVC Germicidal Lamp

Product Attributes

Attribute	Value
Type	Amalgam lamp with single ended 4 pins
Application	Home, Medical, Hotel, Office, Air purification and water treatment
Base Type	T5
Length	843mm
Material	Quartz Tube
Warranty	1-Year
Color of end	White
Lifespan	10,000-13,000 hours

Product Description

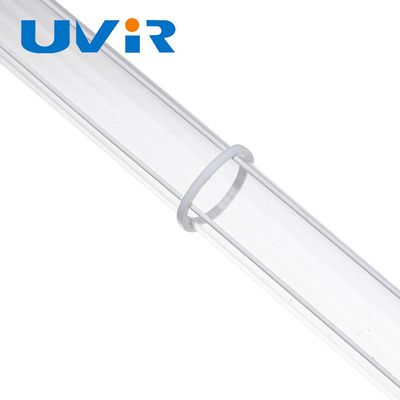

This 4-pin germicidal lamp is constructed with a quartz tube that effectively transmits ultraviolet wavelengths of 254nm (germicidal) and 185nm (ozone-producing). The UV radiation destroys microorganism cell walls, providing immediate disinfection.

Ultraviolet technology offers one of the most effective methods for water treatment and air purification without chemicals.

Four-pin, single-ended UV germicidal lamp design
Constructed with high-quality quartz tube
Average lamp life of 10,000 hours
Available in both ozone-free (254nm) and ozone-generating (185nm) variants

UV Germicidal Technology

Ultraviolet light options: with or without ozone

Standard UV germicidal lamps disinfect only where light directly reaches, while ozone-generating models provide dual sterilization (UV + ozone) that penetrates shadowed areas.

Technical Specifications

Product Name	4 PIN Double End UV Germicidal Lamp
Model No.	GPH843T5L/4P
Overall Length	843mm
Wattage	40W
Diameter	15mm
UV Intensity at 1m	135μW/cm²
Current	425mA
Lifetime	10,000-13,000 hours

Ceramic end caps provide durability, safety, and easy installation. Lamp lengths can be customized for specific applications.

Low Pressure Quartz Amalgam Germicidal Lamp

Features mercury-blocking coating for maintained UV intensity throughout lifespan. Performs consistently across varying temperatures.

Applications

Water treatment for sanitary wastewater and industrial sewage
Sterilization and algae removal in aquariums, farming ponds, and landscape water features

Safety Precautions

UV radiation can harm eyes and skin. Follow these precautions:

Never look directly at operating UV lamp (use protective glass if necessary)
Avoid skin exposure to UV radiation
Keep lamp surface clean for optimal performance
Handle quartz glass with care (use gloves during installation)
Clean with alcohol swabs if contaminated

Frequently Asked Questions

Can I order samples?

Yes, we welcome sample orders to test quality. Mixed samples are acceptable.

What is the lead time?

Samples require 5-7 days; mass production typically takes 30 days.

Is there a minimum order quantity?

Standard MOQ is 100 pieces per model.

How are orders shipped?

Samples ship via DHL/UPS/FedEx/TNT; large quantities via air or sea freight.

What is your order process?

1) Share requirements 2) Receive quote 3) Confirm samples/deposit 4) Production begins.

What is your quality guarantee?

Products undergo strict quality control. During warranty period, replacements ship with next order.
