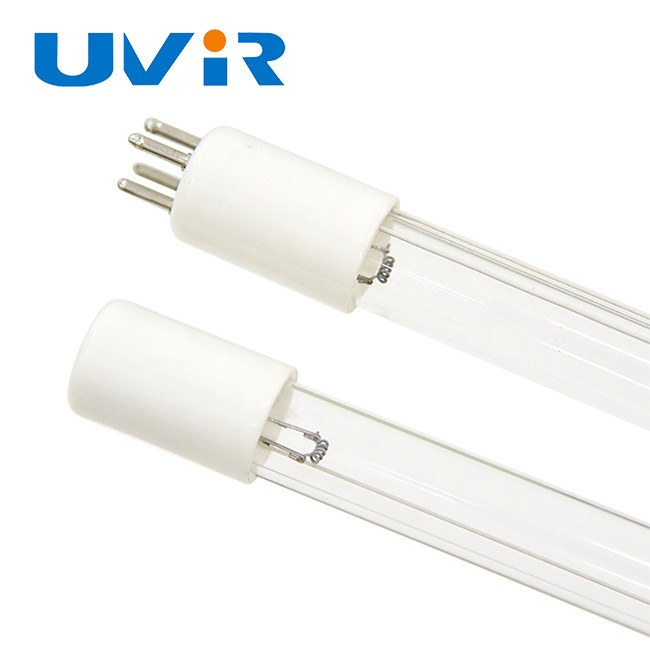

10W GPH212T5L 4-Pin UV Germicidal Lamp for Water Treatment

10W GPH212T5L 4-Pin UV Germicidal Lamp for Water Treatment

Brand Name: UVIR
Model Number: GPH212T5L/4P
MOQ: 10
Price: Negotiable
Payment Terms: L/C,T/T,Western Union
Detail Information
Place of Origin:
China
Certification:
CE
End Material:
Ceramic
Type:
Single End 4-pin
Warranty(Year):
1year
Power:
10W
Application:
Home, Medical, Hotel, Office, Air Purification And Water Treatment
Base Type:
T5
Lifetime:
10000-13000h
Lenght:
212mm
Packaging Details:
Each lamp in a cylinder .Then in a professional plywood box.
Highlight:

Germicidal Uv Light Bulbs 10W

,

Germicidal Uv Light Bulbs 4 PIN

,

GPH212T5L 4P

Product Description
GPH212T5L 4P Germicidal UV Light Bulbs 10W 4 PIN Single End For Water Treatment
Product Specifications
End material Ceramic
Type Single end 4-pin
Warranty 1 year
Power 10W
Application Home, Medical, Hotel, Office, Air purification and water treatment
Base Type T5
Lifetime 10000-13000h
Length 212mm
Product Description
10W GPH212T5L/4P UV Germicidal Lamp

4PIN Single end lamp specifically designed for water treatment applications.

Why Choose Our UV Lamps
  • CE and RoHS certified products
  • Manufactured under strict ISO9001 quality system
  • Each lamp undergoes individual testing before shipment
  • 1-year warranty with free replacements or repairs
  • Reliable delivery: samples within 5 days, bulk orders within 25 days
  • Comprehensive after-sales support
  • ODM and OEM services available
  • Low minimum order quantity requirements
  • 24/7 customer service with response within 24 hours
UV Germicidal Technology
10W GPH212T5L 4-Pin UV Germicidal Lamp for Water Treatment 0

Our UV lamps are available in two variants:

  • Standard UV: Effective only on directly exposed surfaces
  • UV+Ozone: Dual sterilization with ozone penetrating blocked areas
Technical Specifications
Product Name 4 PIN Double End UV Germicidal Lamp
Model No. GPH212T5L/4P
Overall Length 212mm
Wattage 10W
Diameter 15mm
Ultraviolet Intensity at 1 meter 26uw/cm2
Current 425mA
Lifetime 10000-13000hrs
Dual Sterilization Capability
10W GPH212T5L 4-Pin UV Germicidal Lamp for Water Treatment 1
  • UV+Ozone models provide double sterilization for complete coverage
  • Standard UV models effectively sterilize exposed surfaces
Key Functions
  • Dust Mite Elimination: Powerful UV-C rays eliminate dust mites from bedding and furniture
  • Bacterial Control: Effective against mold, Staphylococcus aureus, E.coli, and influenza
  • Odor Removal: Neutralizes kitchen smoke, musty smells, and other household odors
  • Air Purification: Reduces allergens and airborne contaminants for fresher air
Note: Lamp length can be customized for specific applications. Single-head wiring design simplifies installation, making these lamps ideal for water treatment systems.
10W GPH212T5L 4-Pin UV Germicidal Lamp for Water Treatment 2
Product Series Specifications
Model Base Length (mm) Wattage (W) Diameter (mm) Voltage (V) Current (mA) UV Intensity (uw/cm²) UVC Output (W) Lifetime (h)
GPH118T5L/4P 4pin 118 6 15 25 21 425 13 1.4
Advanced Amalgam Technology

Our low pressure quartz amalgam germicidal lamps feature:

  • Mercury-blocking coating maintains UV intensity throughout lamp life
  • Wider temperature range for stable performance in harsh conditions
Applications
  • Sanitary wastewater and industrial sewage treatment
  • Aquarium sterilization and algae control
  • Farming ponds and landscape water treatment
10W GPH212T5L 4-Pin UV Germicidal Lamp for Water Treatment 3
Safety Precautions

Important: UV radiation can cause eye and skin burns. All personnel, animals, and plants must leave the area during operation. Avoid direct exposure to UV light.

After use, ventilate the area for 30-45 minutes before re-entry.
