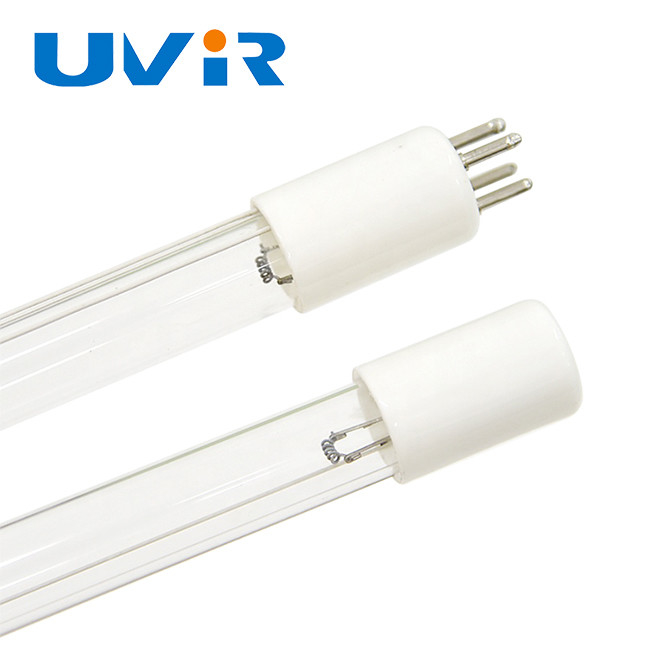

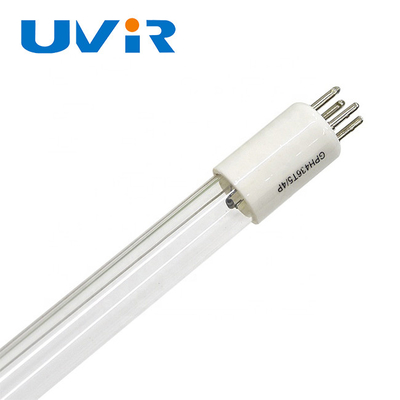

6W T5 4PIN UVC Germicidal Lamp 118mm Quartz Tube

6W T5 4PIN UVC Germicidal Lamp 118mm Quartz Tube

Brand Name:	UVIR
Model Number:	GPH118T5L/4P
MOQ:	10
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Lifetime:

10000-13000h

Lamp Tube Material:

Quartz Tube

Type:

Germicidal UV Light

Power:

Warranty(Year):

1year

Application:

Home, Hotel, Office, Hospital

Current:

425MA

Overall Length:

118mm

Diameter:

15mm

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box.

Highlight:

6W Uvc Led Lamp

118mm Uvc Led Lamp

4PIN uvc led bulb

Product Description

T5 4PIN 118mm 6W UVC LED Lamp Quartz Tube

Product Specifications

Attribute	Value
Lifetime	10000-13000h
Lamp tube material	Quartz Tube
Type	Germicidal UV Light
Power	6W
Warranty	1 year
Application	Home, Hotel, Office, Hospital
Current	425MA
Overall length	118mm
Diameter	15mm

Product Description

T5 4PIN 118mm 6W UVC lamp glass tube germicidal UV LED light disinfector with quartz tube construction for effective sterilization.

Why Choose Our UV Lamps

CE and RoHS certified products
Manufactured under strict ISO9001 quality system
Each lamp individually tested before shipment
1-year warranty with free replacements for defective units
Fast delivery: samples in 5 days, bulk orders in 25 days
Reliable after-sales service
ODM and OEM services available
Low minimum order quantities
24/7 customer support with 24-hour response time

UV Germicidal Technology

Technical Specifications

Product name	4 PIN Double End For UV germicidal lamp
Model NO.	GPH118T5L/4P
Overall Length	118mm
Watt	6W
Diameter	15mm
Ultraviolet intensity at 1 meter	13uw/cm2
Current	425mA
Lifetime	10000-13000hrs

4PIN Single End UV Germicidal Lamp

Construction Details

Main body material: High quality Quartz glass
Ends material: Ceramic, aluminum, plastic
Color: Clear tubes with customizable end colors
Customizable tube voltage and wattage
Available in single end or double-end configurations
Average Lifetime: 10000h - 13000h

The length of this series of lamps can be customized, featuring single-head wiring for easy installation, especially suitable for water treatment applications.

Product Series Specifications

Model	Base	Length (mm)	Watt (W)	Diameter (mm)	Voltage (V)	Current (mA)	UV Intensity (uw/cm²)	UVC Output (W)
GPH118T5L/4P	4pin	118	6	15	25	21	425	13

Low Pressure Quartz Amalgam Germicidal Lamp

Our high-tech mercury-blocking coating maintains UV intensity throughout the lamp's lifespan. The amalgam UV lamp offers superior temperature adaptability for stable performance in demanding environments.

Applications

Disinfecting cabinets, microwave ovens, air conditioners, and air purifiers
Air and surface disinfection in hospitals, schools, restaurants, and offices

High-efficiency sterilization lamp: Regular use (2-3 times weekly for 30-60 minutes) effectively reduces bacteria and mite growth.

Frequently Asked Questions

Can I have a sample order?

Yes, we welcome sample orders to test quality. Mixed samples are acceptable.

What about the lead time?

Samples ship in 5-7 days; mass production orders in about 25 days.

Do you have any MOQ limit?

Minimum order quantity is typically 100 pieces per model.

How do you ship the goods?

Samples ship via DHL/UPS/FedEx/TNT; bulk orders via air or sea freight.

How to proceed with an order?

1. Share your requirements
2. Receive our quote
3. Confirm samples and place deposit
4. We arrange production

How to deal with faulty products?

Our strict quality control minimizes defects. During warranty, we include replacements with next order.
