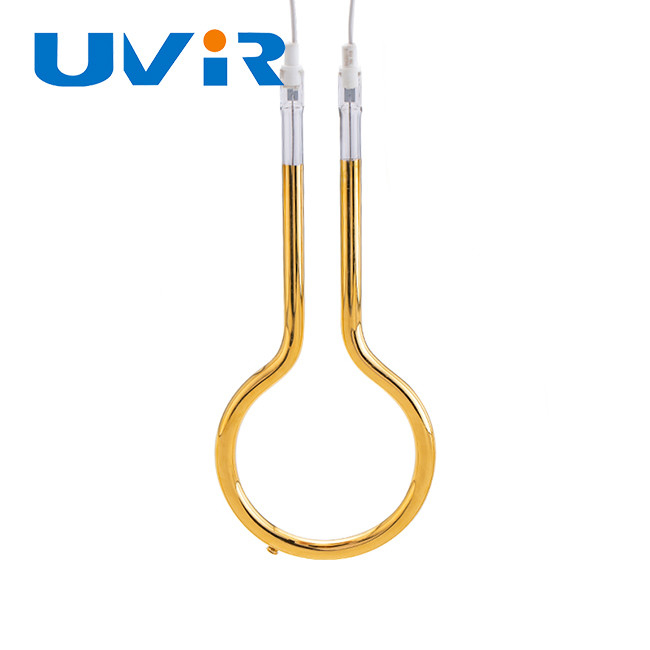

UVIR 1kW Short Wave Infrared Heat Lamp for Plastic Welding

UVIR 1kW Short Wave Infrared Heat Lamp for Plastic Welding

Brand Name:	UVIR
Model Number:	RHG800048
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Brand Name:

UVIR

Specification:

Can Be Made As Required

Voltage:

240V

Main Application:

Automobile, Printing, Hot-melt

IR Diameter:

65mm

Custom Form::

Come To A Sample Or A Drawing

Tube Diameter:

10mm

Power:

1000W

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

Contour short wave infrared heat lamp

Short Wave Infrared Heat Lamp 1kW

Product Description

Circle Contour Short Wave Infrared Heat Lamp 1kW For Plastic Welding Machine

Attribute	Value
Brand Name	UVIR
Specification	Can be made as required
Voltage	240V
Main application	Automobile, printing, Hot-melt
IR diameter	65mm
Custom form	Come to a sample or a drawing
Tube diameter	10mm
Power	1000W

Why Reflector

All of our emitters can be coated with a layer of gold or ceramic as reflectors. The gold/ceramic coating can concentrate the heat, increasing the effectiveness of the heat output. The emitters with coating are highly economical, converting practically all the consumed electrical power into heat.

For the emitters with high watt density or the surface temperature of the tube above 800°C, we suggest using ceramic coating as reflector because the temperature resistance is up to 1000°C. In addition to 180° (half-tube) coating, we also provide customer specified degrees.

Product Details

Product name	Ring tube infrared lamp
UVIR NO.	RHG800048
Voltage	240V
Wattage	1000W 1kW
Coating	Gold

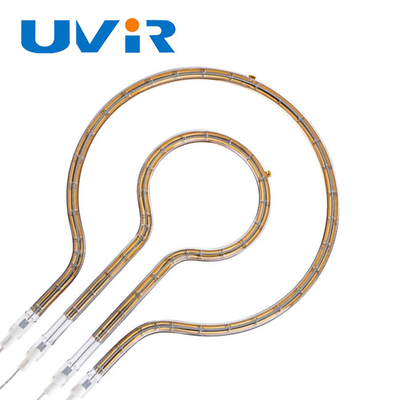

Ring Tube IR Lamps

Special Designs for Circular 2,3-D Surfaces

Main Design Characteristics

Ring diameter from 39 up to 600 mm
Voltage from 24 to 575 V
Short, Medium and Long-Wave IR designs
Availability in various tube colors
The tube diameter can be from 8-14 mm
Standard stock items for immediate delivery
Custom and OEM designs are available

Product Specifications

115	250	8	39	0	RHC800023	RHG800063	RHG800064	RHG800065
120	650	10	32	90	RHC800028	RHG800078	RHG800043	RHG800093

If the parameter is not suitable for you, please contact us. We have a professional team that will provide the knowledge and drawings you need.

Infrared Lamps for Industrial Applications

Support(zone)	Application
Plastics	• Bottle blowing • Thermoforming • Plastic forming • Welding • Serigraphy • Strapping
Paper	• Drying • Copying • Offset printing • Ink jet • Serigraphy
Food	• Food catering • Food processing
Wood & Composites	• Drying • Curing • Powder coating
Shoes & Fabrics	• Drying • Curing
Metal	• Strapping • Coil coating • Powder coating
Paint	• Automobile repair shops • Powder coating

OEM Service

We can advise the customer choosing the right heat lamp for the specific application. Furthermore, our Technical Department can design the right lamp based on the customer's specific technical instructions.

We can produce many sizes and types of heat lamps according to customer requirements. If you have drawings, we can make samples for you.

FAQ

Q1. Can all the products be customized?

A: All infrared ray and ultraviolet ray products can be customized. Equipment and repair services can also be provided based on drawings.

Q2. Order quantity?

A: Minimum order quantity for lamp tubes is 3-5 pieces. The MOQ for equipment is 1 set. Please contact customer service for details.

Q3. Can I get some samples?

A: We are happy to offer samples for you to check and test.

Q4. Do you have any MOQ limit?

A: Low MOQ, 2 pieces for sample checking is available.

Q5. What about the lead time?

A: 15 days after receiving your payment.

Q6. How does your factory do regarding quality control?

A: "Quality is priority." UVIR always emphasizes quality control from beginning to end. Our factory has CE, ISO9001, RoHS, and SGS certifications.

Q7. About customized service?

A: We can provide the right heat solution for you and offer OEM services, including printing your logo on products as required.

Q8. About after-sale service?

A: Any quality issue, once confirmed, will be compensated to our customer.
