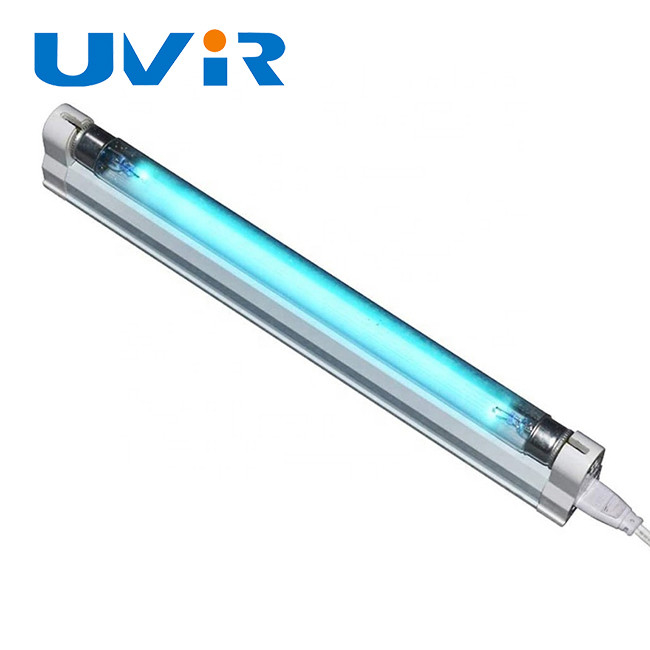

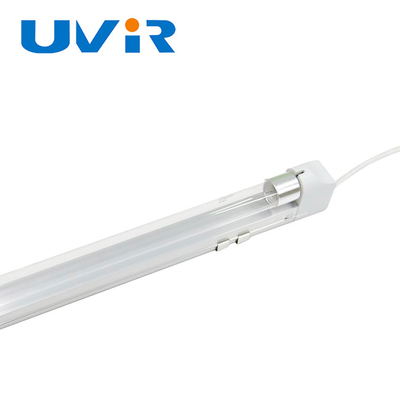

16W 2-Pin UVC Germicidal Lamp 288mm for Air Purifiers

16W 2-Pin UVC Germicidal Lamp 288mm for Air Purifiers

Brand Name:	UVIR
Model Number:	G16T5
MOQ:	10
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Name:

Ultraviolet Lamp

Type:

Amalgam Lamp With Single Ended 2 Pins

Lamp Tube Material:

Quartz Tube

Power:

16W

Current:

350ma

Application:

Home, Medical, Hotel, Office, Air Purification And Water Treatment

Use Life:

13000h

Packaging Details:

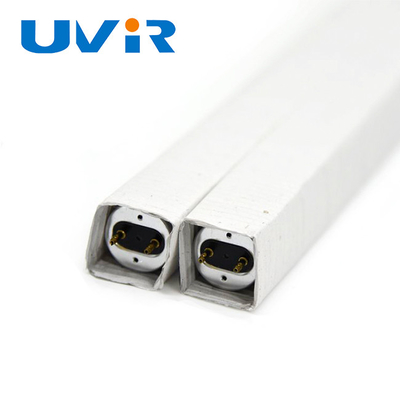

Each lamp in a cylinder .Then in a professional plywood box.

Highlight:

Uv Led Germicidal Lamp 16W

Uv Led Germicidal Lamp 288mm

2 PIN germicidal uv light bulb

Product Description

2 PIN Double End UV LED Germicidal Lamp 16W 288mm For Air Purifiers

Product Specifications

Name	Ultraviolet lamp
Type	Amalgam lamp with single ended 2 pins
Lamp tube material	Quartz tube
Power	16W
Current	350ma
Application	Home, Medical, Hotel, Office, Air purification and water treatment
Use life	13000h

UV Light Advantages

Effective SAFE Sterilization: Kills 99.99% microorganisms including bacteria, virus and fungi in 1-2 seconds without toxic chemicals or harmful byproducts.
High Quality Construction: Made with top quality quartz tube, special coating technique and precise gas composition for stable output and long life.
Versatile Configuration: Available with various bases, materials and pin configurations to suit different systems and specific needs.

About UV Germicidal Technology

Ultraviolet sterilization lamps are available in two types: without ozone and with ozone. Non-ozone UV lamps disinfect only where the light directly reaches, while ozone-producing lamps provide ultraviolet + ozone double sterilization that can reach blocked areas and eliminate dead zones.

Detailed Product Parameters

Product name	2 PIN Double End For UV germicidal lamp
Model NO.	G16T5
Overall Length	288mm
Watt	16W
Diameter	15mm
Ultraviolet intensity at 1 meter	36 uw/cm2 (3.6W)
Current	350mA
Lifetime	13000hrs

Product Variations

Available Models

Model No	Base	Length (mm)	Watt	Diameter (mm)	Voltage 50/60Hz	Current (mA)	UV Intensity (uw/cm²)
Tube Diameter: T5=15mm
G4T5	G5	135	4	15	28	170	9 (0.9W)
G6T5	G5	212	6	15	42	160	16 (1.6W)
G8T5	G5	288	8	15	56	150	21 (2.1W)
G11T5	G5	212	11	15	49	330	22 (2.2W)
G16T5	G5	288	16	15	54	350	36 (3.6W)
Tube Diameter: T8=25mm
G10T8	G13	331	10	25	46	230	23 (2.3W)
G15T8	G13	437	15	25	51	340	47 (4.7W)
G20T8	G13	589	20	25	60	360	65 (6.2W)
G25T8	G13	437	25	25	43	600	70 (7W)
G30T8	G13	894	30	25	100	370	100 (11.2W)
G36T8	G13	1199	36	25	103	440	145 (15.5W)
G55T8	G13	894	55	25	87	780	160 (17W)
G75T8	G13	1199	75	25	110	850	220 (26W)

We offer a complete range of UVC lamps including two end 2-pin, one end 4-pin, and PL UVC lamps. Custom configurations are available upon request.

Applications

Residential: Water and air purification for kitchens and air ducts
Industrial: Sterilization for pools, fish tanks, hospitals and laboratories
Environmental: Waste water treatment to improve water utilization efficiency

Frequently Asked Questions

Q1: Are you factory or trading company?

A: We are trading company with factory.

Q2: Can I have a sample first before bulk order?

A: Yes. We offer free samples for quality testing, you only pay the freight.

Q3: What's your delivery date?

A: 5-7 working days for samples and 15-25 days for bulk orders.

Q4: What's your shipping methods?

A: 1. Express: TNT, DHL, FedEX, UPS, EMS (door to door)
2. By Air: To your specified airport
3. By Sea: To your specified port

Q5: What's your MOQ?

A: Our MOQ is 100pcs, though sample orders can be smaller.

Q6: Are the products safe enough?

A: Our products are thoroughly tested and certified by internationally recognized regulatory bodies and safety organizations.
