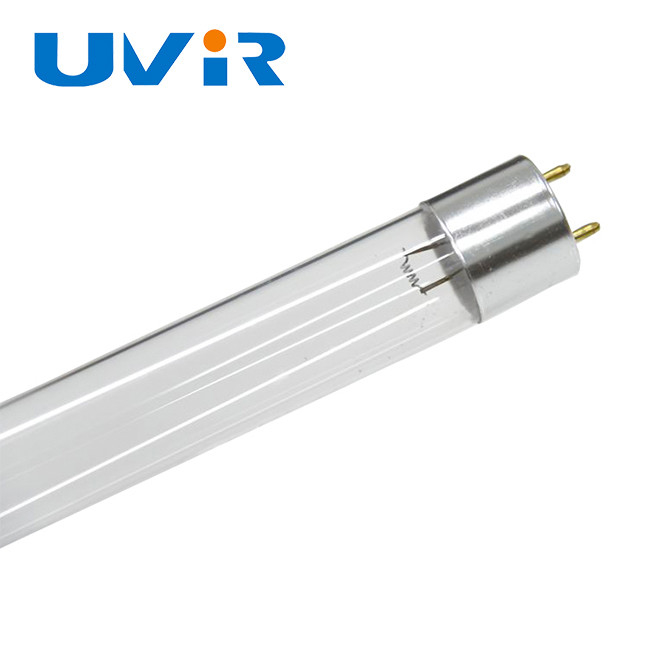

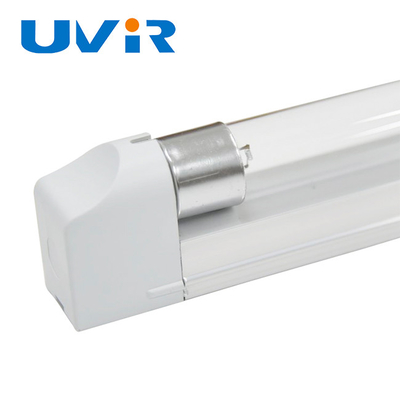

6W G5 UVC Germicidal Lamp Quartz Tube 12000h Lifespan

6W G5 UVC Germicidal Lamp Quartz Tube 12000h Lifespan

Brand Name:	UVIR
Model Number:	G6T5
MOQ:	100
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Lifetime:

12000h

Light Source:

Quartz Tube

Type:

Amalgam Lamp With Single Ended 2pins

Power:

Warranty(Year):

1year

Base Type:

Application:

Home, Hotel, Office, Hospital

Current:

160MA

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box.

Highlight:

6W UVC Germicidal Lamp

G13 UVC Germicidal Lamp

G5 uv germicidal lamp

Product Description

G5 G13 6W UVC Germicidal Lamp Ozone Highbay Quartz Glass Tube

Product Specifications

Attribute	Value
Lifetime	12000h
Light Source	Quartz Tube
Type	Amalgam lamp with single ended 2pins
Power	6W
Warranty	1 year
Base Type	G5
Application	Home, Hotel, Office, Hospital
Current	160MA

Product Description

G5 G13 6W Ozone UV highbay quartz glass sterilizer UVC disinfection germicidal ultraviolet lamp

Why Choose Us

Lamps are approved by CE and RoHS
Implement strict quality system according to ISO9001
All lamps are tested individually before delivery
1 year warranty with free replacements or repairs during warranty period
Fast delivery: samples within 5 working days, bulk orders within 25 days
Dependable after-sales service
ODM and OEM service available
Low MOQ requirements
24/7 customer support with responses within 24 hours

About UV Germicidal Technology

Technical Details

Product name	2 PIN Double End For UV germicidal lamp
Model NO.	G6T5
Overall Length	212mm
Watt	6W
Diameter	15mm
Ultraviolet intensity at 1 meter	16uw/cm2 (1.6W)
Current	160mA
Lifetime	12000hrs

High Boron/Quartz UV Germicidal Lamp

Specification Details

Main body material: High quality Quartz glass
Ends material: Ceramic, aluminum, or plastic
Color: Clear tubes with customizable end colors
Customizable tube voltage and wattage available
Available in single end or double-end configurations
Average Lifetime: 10000h - 13000h

Available Models

Model No	Base	Length (mm)	Watt	Diameter (mm)	Voltage 50/60Hz	High Freq. Voltage	Current (MA)	UV Intensity (uw/cm²)
Tube Diameter: T5=15mm
G4T5	G5	135	4	15	28	23	170	9 (0.9W)
G6T5	G5	212	6	15	42	34	160	16 (1.6W)
Tube Diameter: T8=25mm
G10T8	G13	331	10	25	46	36	230	23 (2.3W)

We offer a complete range of UVC lamps including two end 2-pin, one end 4-pin, and PL UVC lamps. Custom configurations available - please contact us with your requirements.

Related Products

Applications

Disinfecting cabinets, microwave ovens, air conditioners, air purifiers and other home appliances
Air and surface disinfection in hospitals, schools, restaurants, homes and offices
