Your Infrared Radiator Customization Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | UVIR |
| Certification: | CE & ROHS |
| Model Number: | RHG800067 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Each lamp in a cylinder .Then in a professional plywood box |
| Delivery Time: | 5-8 Work day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Input Voltage(V):: | 230V | Lighting Solutions Service:: | Lighting And Circuitry Design |
|---|---|---|---|
| Material:: | Tungsten (filament), Quartz (tube) | Item:: | Ring Tube IR Lamp |
| Ring Diameter:: | 80mm | Reflector:: | Gold/white/Clear |
| Power: | 1500W | ||
| Highlight: | Gold Reflector Circular Infrared Lamps,Circular Infrared Lamps Quartz tube |
||

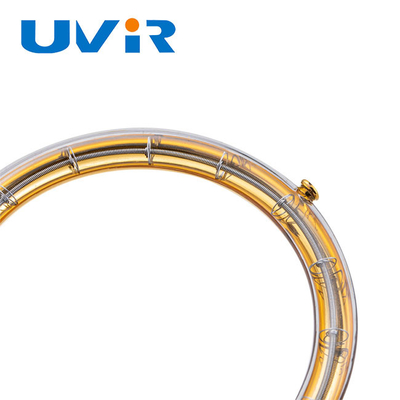

Quartz tube Shortwave Gold Reflector Circular Infrared Lamps For Plastic Heating Equipment
Benefits of Infrared Heat Lamps
Infrared heater which is best matched to the materials to be heated, can provide energy savings of up to 50% over other technologies. and our
professional Infrared technology can know heat exactly where it is needed, with the optimum wavelength for the product.
Product parameter:
| tem | Ring tube ir lamp |
| Voltage | 230V |
| Outside diameters | 80mm |
| Tube diameter | 8mm |
| Filament type | Tungsten / Carbon |
| Lamp tube material | Quartz tube |
| Reflector | Gold / Ceramic white / Clear |
| Filament Temperature | 1100-2600 ℃ |
| Reponse time | 1-2s |
| OEM/ODM | many types of voltage,wattage,length,base,cables,universal burning position is available |

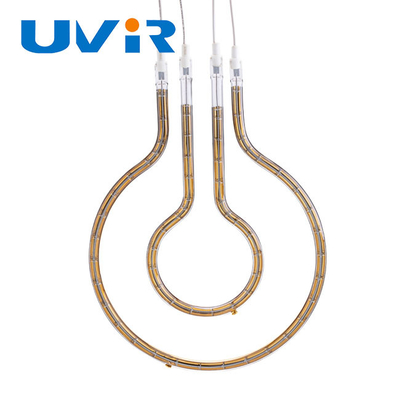

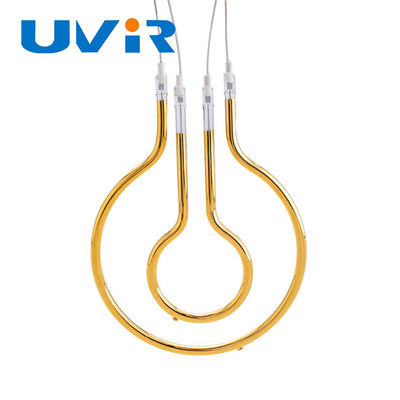

Ring Tube IR Lamps
Special Designs for Circular
2,3-D Surfaces
Main Design Characteristics
● Ring diameter from 39 up to 600 mm
● Voltage from 24 to 575 V
● Short, Medium and Long-Wave IR designs
● Availability in various tube colors
● The tube diameter can be from 8- 14 mm.
Its selection depends on the heater's diameter
and the voltage/wattage relationship
Standard stock items for immediate delivery
● Custom and OEM designs are available
Stock and Standard (Non-Stock) Short-Wave Ring Lamps
| 115 | 250 | 8 | 39 | 0 | RHC800023 | RHG800063 | RHG800064 | RHG800065 |
| 120 | 650 | 10 | 32 | 90 | RHC800028 | RHG800078 | RHG800043 | RHG800093 |
| 230 | 1500 | 8 | 80 | 0 | RHC800024 | RHG800066 | RHG800067 | RHG800068 |
| 230 | 1850 | 8 | 102 | 90 | RHC800025 | RHG800025 | RHG800025 | RHG800025 |
| 230 | 2000 | 8 | 154 | 90 | RHC800026 | RHG800072 | RHG800073 | RHG800074 |
| 230 | 2200 | 8 | 180 | 90 | RHC800027 | RHG800075 | RHG800076 | RHG800077 |
| 240 | 1000 | 10 | 65 | 90 | RHC800029 | RHG800079 | RHG800048 | RHG800094 |
| 240 | 1600 | 10 | 97 | 90 | RHC800030 | RHG800080 | RHG800049 | RHG800095 |
| 240 | 1750 | 10 | 129 | 90 | RHC800031 | RHG800081 | RHG800050 | RHG800096 |
| 480 | 2100 | 10 | 161 | 90 | RHC800032 | RHG800082 | RHG800051 | RHG800097 |
| 480 | 2500 | 10 | 193 | 90 | RHC800033 | RHG800083 | RHG800052 | RHG800098 |
| 480 | 2850 | 10 | 223 | 90 | RHC800034 | RHG800084 | RHG800053 | RHG800099 |
| 480 | 3180 | 10 | 252 | 90 | RHC800035 | RHG800085 | RHG800054 | RHG800100 |
| 480 | 3520 | 10 | 282 | 90 | RHC800036 | RHG800086 | RHG800055 | RHG800101 |
| 480 | 3800 | 10 | 312 | 90 | RHC800037 | RHG800087 | RHG800056 | RHG800102 |
| 480 | 4200 | 10 | 341 | 90 | RHC800038 | RHG800088 | RHG800057 | RHG800103 |
| 480 | 4600 | 14 | 371 | 90 | RHC800039 | RHG800089 | RHG800058 | RHG800104 |
| 480 | 5000 | 14 | 404 | 90 | RHC800040 | RHG800090 | RHG800059 | RHG800105 |
| 480 | 5700 | 14 | 478 | 90 | RHC800041 | RHG800091 | RHG800060 | RHG800106 |
| 480 | 6000 | 14 | 511 | 90 | RHC800042 | RHG800092 | RHG800061 | RHG800107 |
If the parameter is not suitable for you,Please contact me.We have a professional elite team,will provide the professional knowledge and drawings for you!
Product Coding Rule Table:
OEM Service
We can advise the customer choosing the right heat lamp for the specific application. Furthermore, the Technical Department can design the right lamp based on the customer’s specific technical instructions.
We can product many sizes and types heat lamp according to customers requirement, and so on.If have drawing is beat, then we can do samples for you.
FAQ
Q1. Can all the products be customized?
A: all infrared ray, ultraviolet ray product can be customized, equipment and repair also can come graph processing.
Q2. What is the outer package of the product?
A: the lamp tube inside 20 sticks can package with paper pack, if the length of the product exceeds 800MM, we will arrange wooden case.
The equipment and consumables are packed in wooden cases because the lamp is too heavy. If there is any doublt, please contact customer service.
Q3. Processing cycle?
A: the processing cycle of all products is subject to contact with customer service. About 20 days for the lamp tube, the production period of equipment products will be longer.
Q4. Order quantity?
A: lamp tube and minimum order quantity is 3-5 above. The MOQ of the equipment is 1 set. Please refer to the instructions after contacting the customer service.
