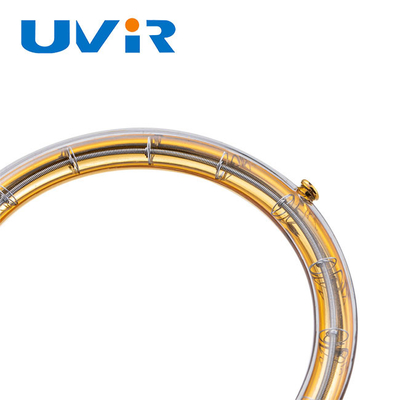

230V 1500W Gold Reflector Ring Infrared Lamp 80mm

230V 1500W Gold Reflector Ring Infrared Lamp 80mm

Brand Name:	UVIR
Model Number:	RHG800067
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Input Voltage(V)::

230V

Lighting Solutions Service::

Lighting And Circuitry Design

Material::

Tungsten (filament), Quartz (tube)

Item::

Ring Tube IR Lamp

Ring Diameter::

80mm

Reflector::

Gold/white/Clear

Power:

1500W

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

Gold Reflector Circular Infrared Lamps

Circular Infrared Lamps Quartz tube

Product Description

Gold Reflector Circular Infrared Lamps Quartz Tube Shortwave

Product Specifications

Attribute	Value
Input Voltage(V)	230V
Lighting solutions service	Lighting and circuitry design
Material	Tungsten (filament), Quartz (tube)
Item	Ring tube IR Lamp
Ring Diameter	80mm
Reflector	Gold/white/Clear
Power	1500W

Product Description

Quartz tube Shortwave Gold Reflector Circular Infrared Lamps for Plastic Heating Equipment

Benefits of Infrared Heat Lamps

Infrared heaters matched to the materials being heated can provide energy savings of up to 50% over other technologies. Our professional infrared technology delivers heat exactly where needed, with the optimum wavelength for the product.

Product Parameters

Item: Ring tube IR lamp
Voltage: 230V
Outside diameters: 80mm
Tube diameter: 8mm
Filament type: Tungsten / Carbon
Lamp tube material: Quartz tube
Reflector: Gold / Ceramic white / Clear
Filament Temperature: 1100-2600 ℃
Response time: 1-2s
OEM/ODM: Custom voltage, wattage, length, base, cables available

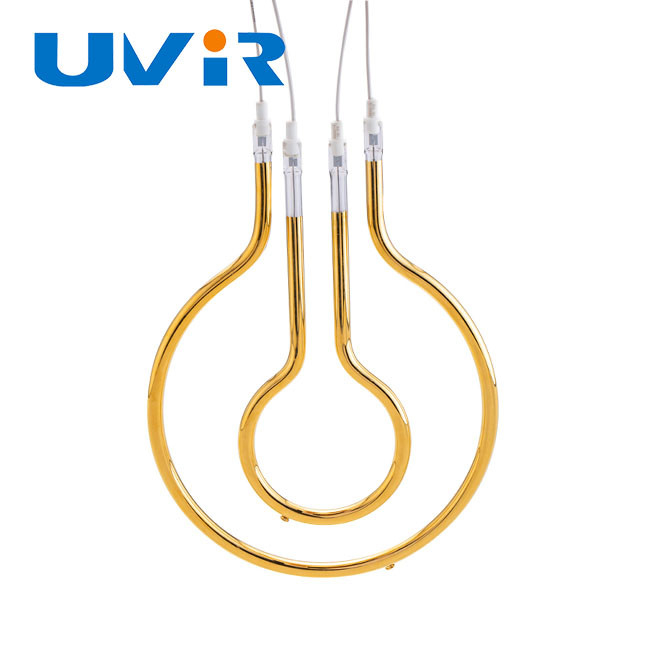

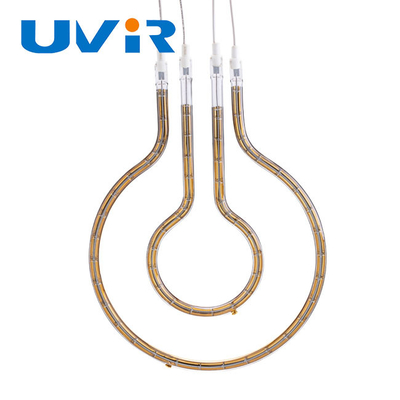

Ring Tube IR Lamps

Special designs for circular 2,3-D surfaces

Main Design Characteristics

Ring diameter from 39 up to 600 mm
Voltage from 24 to 575 V
Short, Medium and Long-Wave IR designs
Available in various tube colors
Tube diameter from 8-14 mm (selected based on heater diameter and voltage/wattage relationship)
Standard stock items for immediate delivery
Custom and OEM designs available

Stock and Standard (Non-Stock) Short-Wave Ring Lamps

If the parameters are not suitable for your needs, please contact us. Our professional team can provide technical knowledge and custom drawings.

Product Coding Rule Table

OEM Service

We can advise customers in choosing the right heat lamp for specific applications. Our Technical Department can design lamps based on customer specifications.

We can produce many sizes and types of heat lamps according to customer requirements. Providing drawings is ideal for custom samples.

FAQ

Q1. Can all the products be customized?

A: All infrared ray and ultraviolet ray products can be customized. Equipment and repairs can also be processed according to drawings.

Q2. What is the outer package of the product?

A: Lamp tubes (up to 20 sticks) are packaged in paper packs. For products exceeding 800mm in length, we use wooden cases. Heavy equipment and consumables are packed in wooden cases.

Q3. Processing cycle?

A: Lamp tube production typically takes about 20 days. Equipment products require longer production periods. Exact timelines should be confirmed with customer service.

Q4. Order quantity?

A: Minimum order quantity for lamp tubes is 3-5 pieces. Equipment MOQ is 1 set. Please confirm details with customer service.
