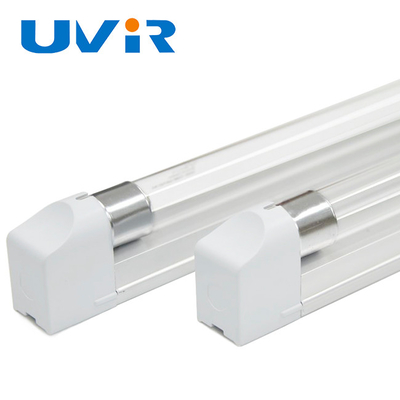

4W G4T5 UVC Germicidal Lamp 2PIN Double Ended for Air Sterilization

Name: 4W G4T5 UVC Germicidal Lamp 2PIN Double Ended for Air Sterilization
Brand: Guangdong Youhui Technology Co., Ltd.
SKU: G4T5
Price: 3.00 USD
Availability: InStock

Brand Name:	UVIR
Model Number:	G4T5
MOQ:	10
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Ultraviolet Sterilization Lamp

Type:

2PIN EDN

Material:

Quartz Tube

Power:

Tube Diameter:

15mm

Current:

170

Application:

Air Sterilization

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box.

Highlight:

Double Ended Germicidal Sterilization Lamp

4W UVC Lamp

G5 Base UVC Lamp

Product Description

UVC Lamp G4T5 4W Double Ended Germicidal Sterilization Lamp G5 Base

Product Specifications

Attribute	Value
Product name	Ultraviolet sterilization lamp
Type	2PIN EDN
Material	Quartz tube
Power	4W
Tube diameter	15mm
Current	170mA
Application	Air sterilization

UV Light Advantages

Effective SAFE Sterilization: Kills 99.99% microorganisms including bacteria, virus and fungi in 1-2 seconds without toxic chemicals or harmful byproducts.
High Quality Construction: Made with top quality quartz tube, special coating technique and precise gas composition for stable output and long life.
Easy Operation: Available with various bases, materials and pin configurations to suit different systems and specific needs.

About UV Germicidal Lamp

Product Parameters

Product name	2 PIN Double End UV germicidal lamp
Model NO.	G4T5
Overall Length	135mm
Watt	4W
Diameter	15mm
Ultraviolet intensity at 1 meter	9 uw/cm2 (0.9W)
Current	170mA
Lifetime	10000hrs

Available Models

Model No	Base	Length (mm)	Watt	Diameter (mm)	Voltage 50/60Hz	Voltage HF	Current (mA)	UV Intensity (uw/cm²)
Tube Diameter: T5=15mm
G4T5	G5	135	4	15	28	23	170	9
G6T5	G5	212	6	15	42	34	160	16
G8T5	G5	288	8	15	56	45	150	21
Tube Diameter: T8=25mm
G10T8	G13	331	10	25	46	36	230	23

We supply a complete range of UVC lamps including two end 2-pin, one end 4-pin, and PL UVC lamps. Custom configurations are available upon request.
