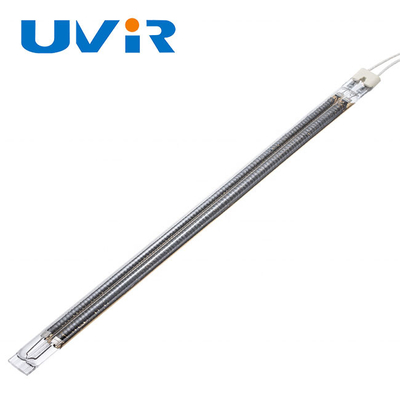

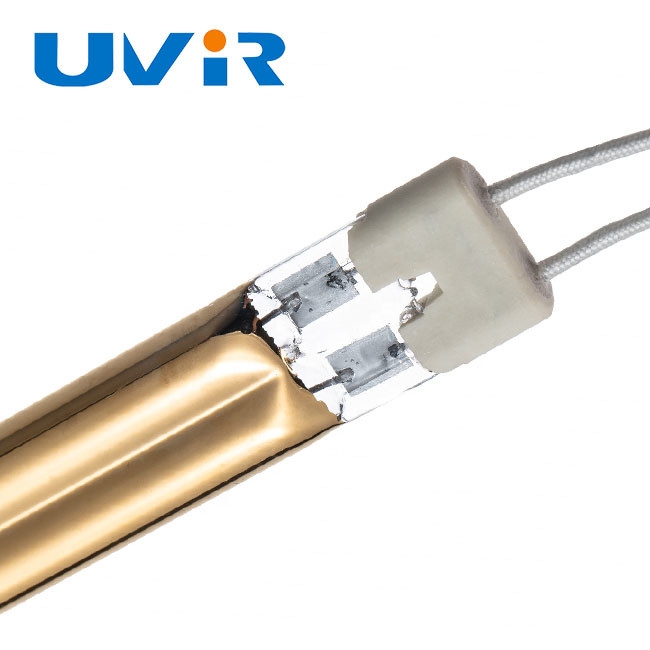

Golden Carbon Fiber Infrared Heating Lamp 380V 4800W

Golden Carbon Fiber Infrared Heating Lamp 380V 4800W

Brand Name:	UVIR
Model Number:	TMG100014
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Name::

Twin Tube Carbon Fiber IR Heating Lamp

Material ::

Carbon Fiber & Glass Tube

Power::

4800W

Coating::

Gold Coating

Warranty Period ::

10,000 Hours

Application ::

Glass Fiber Products

Total Length ::

3300 Mm

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

Golden Carbon Fiber Infrared Heating Lamp

Carbon Fiber Infrared Heating Lamp 380V

infrared lamp drying 4800W

Product Description

Golden Carbon Fiber Infrared Heating Lamp 380V 4800W For Drying

Product Specifications

Name:	Twin tube Carbon Fiber IR heating lamp
Material:	Carbon fiber & glass tube
Power:	4800W
Coating:	Gold Coating
Warranty Period:	10,000 hours
Application:	Glass Fiber Products
Total length:	3300 mm

Product Description

380V 4800W Golden Carbon Infrared Emitter designed specifically for glass fiber products drying applications.

Key Features

For emitters with high watt density or surface temperature above 800°C, ceramic coating reflector is recommended (temperature resistance up to 1000°C)
Available in 180° (half-tube) coating, 270° coating, or custom specified degrees
Voltage: 380V
Power: 4800W
Coating: Gold

Energy Efficient Heating

Our infrared heaters are precisely matched to the materials being heated, delivering energy savings up to 50% compared to conventional technologies. Our professional infrared technology provides targeted heating exactly where needed, with the optimal wavelength for your product.

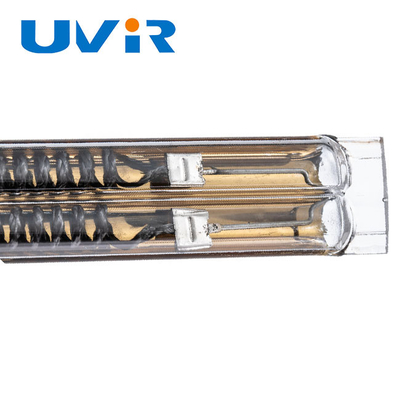

Infrared Twin Tube Technology

Infrared (IR) is part of the electromagnetic spectrum ranging from 0.76μm to 1000μm, located just beyond visible red light. While invisible, IR shares properties with light - traveling at light speed, capable of being directed/focused, and effective even in vacuum environments.

When absorbed by objects, IR radiation generates internal heat by causing atomic vibration. Unlike conventional methods, IR heating doesn't require any medium (air or water) to transfer heat.

Frequently Asked Questions

1. Are you a manufacturer or trading company?

We are a professional manufacturer.

2. What types of lamps can you produce?

Our main products include:

Short wave infrared lamps
Medium wave infrared lamps
Customized special shape infrared lamps
All available in single and twin tube configurations with halogen or carbon fiber filaments

3. What parameters are needed when ordering a lamp?

Input Voltage
Lamp Wattage
Total Length
Heated Length
Tube Diameter
Reflector
Lead wire

4. What payment methods do you accept?

We accept: T/T, Western Union, MoneyGram, PayPal, Trade Assurance
