Your Infrared Radiator Customization Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | UVIR |
| Certification: | CE & ROHS |
| Model Number: | THW100037 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Each lamp in a cylinder .Then in a professional plywood box |
| Delivery Time: | 15 Work day |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Type: | B | Material: | Nichrome |
|---|---|---|---|
| Power: | 1500W | Coating: | White |
| Voltage: | 230V | Total Length: | 405mm |
| Heating Length: | 340mm | ||
| High Light: | 1.4um Twin Tube Infrared Lamps,Ceramic Twin Tube Infrared Lamps,Ceramic Coating Short Wave Ir Heater |
||

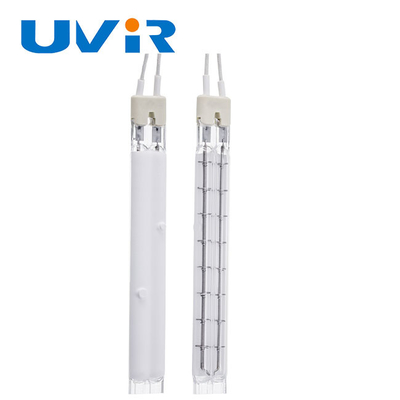

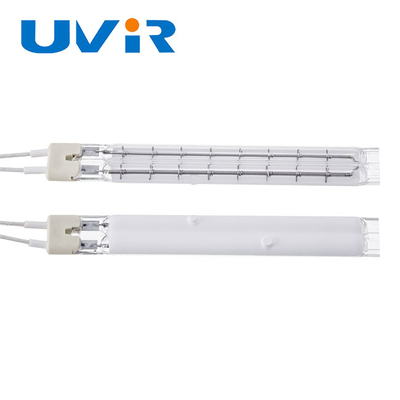

1500W Twin Tube Infrared Lamps , Ceramic Coating Short Wave Ir Heater
IR Twin Tube
| Energy saving | Infrared radiation unlike convection or conduction, dose not rely on any medium to transfer heat from infrared source to the object being heated, heat directly to the object |
| Time saving | no need medium transferring and quick response, heating by infrared emitters can reach working temperature more quickly than other forms of heating and therefore reduces process times, and increases production rates. |
| Space saving | small size |
| Labor saving |
Easy installation, no maintenance, no extra manual operation for infrared heating emitters. |
| Cost saving |
energy saving, so cost saving; human cost saving: easy installation, reliable operation, low maintenance costs |
| Better product quality | Controllable, predictable heating reduces wastage and promotes products quality |
| Environment protection | Clean, and no any pollution released to the surroundings |
STANDARD TWIN TUBE CONSTRUCTION TYPES
Technical Description
Standard cros S-S ection dimensions for industrial
IR twin tubes in mm
The strength of a quartz tube was drastically increased by borrowing a design concept from the construction industry: the steel beam. This new design allows twin tube lengths of up to 6 m (cross section: 33 X 14 mm)
| Twin Twin Cross-Section |
Maximum Length, m |
S-W | M-W |
| 8x18 | 2.1 | N | Y |
| 23x11 | 3.5 | Y | Y |
| 33x14 | 4.0 | Y | Y |
Heater dim ensions depend on the required voltage/wattage relationship.
Product details
| Type | Twin Tube Short Wave Halogen Infrared Heating Lamp |
| Size | 11X23mm |
| Coating | Gold |
| Power | 230V |
| Voltage | 1500W |
| OEM/ODM | many types of voltage,wattage,length,base,cables,universal burning position is available |
Stock and Standard (Non-Stock) Twin Tu be Short-Wave Lamps
| Voltage V |
Wattage W |
Twin Tube |
Total Length |
Heated Length |
Disgn Type |
Gold | White | Clear |
| 55 | 400 | 11x23 | 115 | 50 | B | THG100151 | THW100025 | THC100026 |
| 115 | 400 | 11x23 | 115 | 50 | B | THG100152 | THW100026 | THC100027 |
| 115 | 450 | 11x23 | 70 | 25 | B | THG100153 | THW100027 | THC100028 |
| 115 | 450 | 11x23 | 72 | 25 | B | THG100154 | THW100028 | THC100029 |
| 115 | 600 | 11x23 | 145 | 80 | B | THG100155 | THW100029 | THC100030 |
| 115 | 900 | 11x23 | 170 | 115 | B | THG100156 | THW100030 | THC100031 |
| 115 | 1000 | 11x23 | 192 | 127 | B | THG100157 | THW100031 | THC100032 |
| 115 | 1100 | 11x23 | 205 | 140 | B | THG100158 | THW100032 | THC100033 |
| 120 | 700 | 11x23 | 140 | 89 | B | THG100159 | THW100033 | THC100034 |
| 120 | 800 | 11x23 | 167 | 102 | B | THG100160 | THW100034 | THC100035 |
| 120 | 1180 | 11x23 | 250 | 150 | B | THG100161 | THW100035 | THC100036 |
| 230 | 1200 | 11x23 | 405 | 340 | B | THG100162 | THW100036 | THC100037 |
| 230 | 1500 | 11x23 | 300 | 200 | B | THG100163 | THW100037 | THC100038 |
| 230 | 2350 | 11x23 | 410 | 355 | B | THG100164 | THW100038 | THC100039 |
| 230 | 3000 | 11x23 | 650 | 500 | C | THG100165 | THW100039 | THC100040 |
| 230 | 500 | 15x33 | 510 | 500 | B | THG100114 | THW100061 | THC100061 |
| 400 | 4800 | 15x33 | 500 | 800 | B | THG100141 | THW100062 | THC100062 |
| 400 | 6200 | 15x33 | 1100 | 1030 | B | THG100002 | THW100063 | THC100063 |
| 400 | 15720 | 15x33 | 850 | 1334 | H | THG100186 | THW100064 | THC100064 |
| 480 | 6000 | 15x33 | 1550 | 1000 | B | THG100140 | THW100065 | THC100065 |
If the parameter is not suitable for you,Please contact me.We have a professional elite team,will provide the professional knowledge and drawings for you!
Product Coding Rule Table
OEM Service
We can advise the customer choosing the right heat lamp for the specific application. Furthermore, the Technical Department can design the right lamp based on the customer’s specific technical instructions.
We can product many sizes and types heat lamp according to customers requirement, and so on.If have drawing is beat, then we can do samples for you.
FAQ
1. What is the payment term?
prepayment 100% advance via wire transfer, Paypal, Western Union
2. Could you provide sample for performance testing and appearance checking?
Yes, we can provide the sample based on your required specs.
3. What information should i provide when enquire?
Lamp’s type, Total length,Heating length ,Wattage,Voltage,Ceramic end connection ,Lead length in mm (Standard lead wire length 300 mm),Coating available - Gold coating / Ceramic coating, quantity, it couldn’t be better if there is drawing or picture can be provided.
But if it is a new project or it is the first time for you to use infrared emitter, just tell us about your application in details like object material, required working temperature, required time, heating size.
