Your Infrared Radiator Customization Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | UVIR |
| Certification: | CE & ROHS |
| Model Number: | THG100010 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Each lamp in a cylinder .Then in a professional plywood box |
| Delivery Time: | 15-20Work day |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Type: | Short Wave Infrared Heating Lamp | Material: | Quartz Glass & Tungsten Filaments |
|---|---|---|---|
| Warranty: | 5000h | Coating:: | Gold |
| Power: | 3400W | Total Length: | 515mm |
| Heating Length: | 410mm | Voltage: | 480V |
| Highlight: | 3400W Quartz Halogen Infrared Heaters,Quartz Halogen Infrared Heaters TC01 |
||

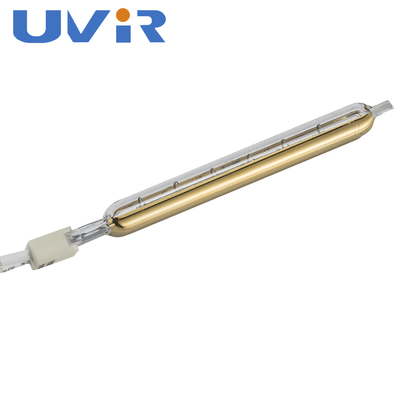

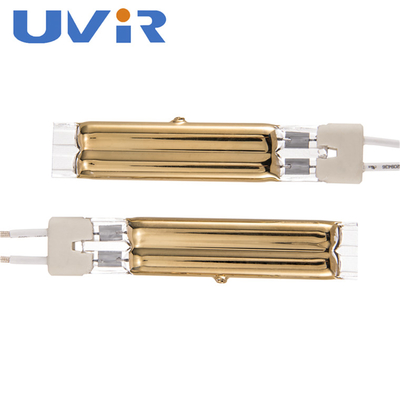

TC01 Gold Coating 3400W Quartz Halogen Infrared Heaters For Automation Glue Activation
Specific Applications Examples
1.Solar PV industry for preheating, soldering, heating process in many kinds of stringers, furnace, ovens and PECVD equipment, etc.
2.PET preform heating in Stretch blow moulding machines
3.Powder coating curing
4.Resins Hardening, Rubber coating drying
5.Adhesives - End polymerization
6.Food - Pasteurization / Sterilization
7.Paper Industry - Humidity Control
8.Industrial Drying - Paint , Varnishes , Dyeing
9.Semi Conductor Industries - Heating of wafers
10.Printing - Printing ink drying in screen and offset machines
11.Plastic welding
12.Drying of Water-Repellent Coating on Fabric
13.Textile Embossing and Laminating
Product parameters
| Type | Twin Tube Short Wave Halogen Infrared Heating Lamp |
| Size | 11X23mm |
| Coating | Gold |
| Power | 480V |
| Voltage | 3400W |
| OEM/ODM | many types of voltage,wattage,length,base,cables,universal burning position is available |
Product details

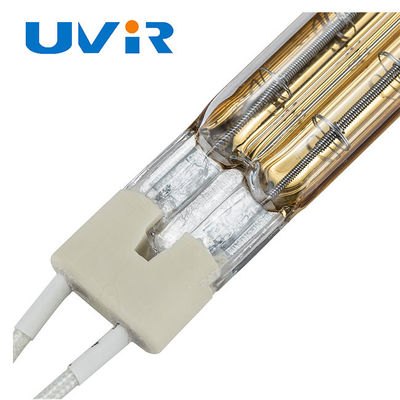

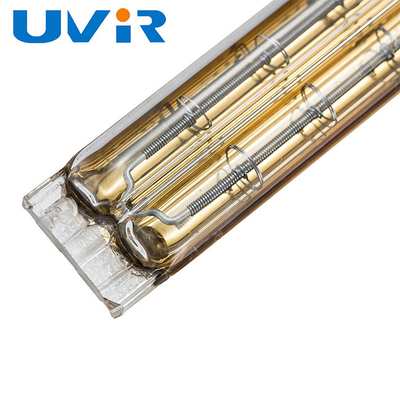

Main components of a twin tube infrared lamp:
1. Fused silica
2. Tungsten heating elements
3. Supports for heating wire
4. End plate and ceramic end
5. Wire leads ,
6. Reflective layer. Shown: gold layer
7. Proprietary gas composition.
High quality raw material:
Combining high-quality transparent quartz tube materials and halogen principles,effectively increasing the density of infrared radiation. This achieves the user's ideal heating purpose.
Stock and Standard (Non-Stock) Twin Tu be Short-Wave Lamps
| Voltage V |
Wattage W |
Twin Tube |
Total Length |
Heated Length |
Disgn Type |
Gold | White | Clear |
| 55 | 400 | 11x23 | 115 | 50 | B | THG100151 | THW100025 | THC100026 |
| 115 | 400 | 11x23 | 115 | 50 | B | THG100152 | THW100026 | THC100027 |
| 115 | 450 | 11x23 | 70 | 25 | B | THG100153 | THW100027 | THC100028 |
| 115 | 450 | 11x23 | 72 | 25 | B | THG100154 | THW100028 | THC100029 |
| 115 | 600 | 11x23 | 145 | 80 | B | THG100155 | THW100029 | THC100030 |
| 115 | 900 | 11x23 | 170 | 115 | B | THG100156 | THW100030 | THC100031 |
| 115 | 1000 | 11x23 | 192 | 127 | B | THG100157 | THW100031 | THC100032 |
| 115 | 1100 | 11x23 | 205 | 140 | B | THG100158 | THW100032 | THC100033 |
| 120 | 700 | 11x23 | 140 | 89 | B | THG100159 | THW100033 | THC100034 |
| 120 | 800 | 11x23 | 167 | 102 | B | THG100160 | THW100034 | THC100035 |
| 120 | 1180 | 11x23 | 250 | 150 | B | THG100161 | THW100035 | THC100036 |
| 230 | 1200 | 11x23 | 405 | 340 | B | THG100162 | THW100036 | THC100037 |
| 230 | 1500 | 11x23 | 300 | 200 | B | THG100163 | THW100037 | THC100038 |
| 230 | 2350 | 11x23 | 410 | 355 | B | THG100164 | THW100038 | THC100039 |
| 230 | 3000 | 11x23 | 650 | 500 | C | THG100165 | THW100039 | THC100040 |
| 230 | 500 | 15x33 | 510 | 500 | B | THG100114 | THW100061 | THC100061 |
| 400 | 4800 | 15x33 | 500 | 800 | B | THG100141 | THW100062 | THC100062 |
| 400 | 6200 | 15x33 | 1100 | 1030 | B | THG100002 | THW100063 | THC100063 |
| 400 | 15720 | 15x33 | 850 | 1334 | H | THG100186 | THW100064 | THC100064 |
| 480 | 6000 | 15x33 | 1550 | 1000 | B | THG100140 | THW100065 | THC100065 |
If the parameter is not suitable for you,Please contact me.We have a professional elite team,will provide the professional knowledge and drawings for you!
Product Coding Rule Table
Our advantage
1.Infrared heater which is best matched to the materials to be heated, can provide energy savings of up to 50% over other technologies.
2.Very Good And Stable Quality
3.24Hrs Customer Support
4.CE,ISO9001,RoHS,SGS authentication.
5.Low MOQ,1pcs for sample checking is available.
SAFETY PRECAUTIONS
1. There is no flammable, explosive, corrosive gas and conductive dust in the surrounding environment.
2. The electric heating pipe should be well positioned and fixed. The electric heating pipe is generally equipped with corresponding metal pipe clamps and ceramic pipe clamps according to the porcelain seats at both ends.
3.Insulating material of infrared electric heating tube The quartz glass is a brittle material. When installing and using it, it should be safe and use it according to the specific conditions of the heated object.
Take necessary protective measures to avoid mechanical damage
