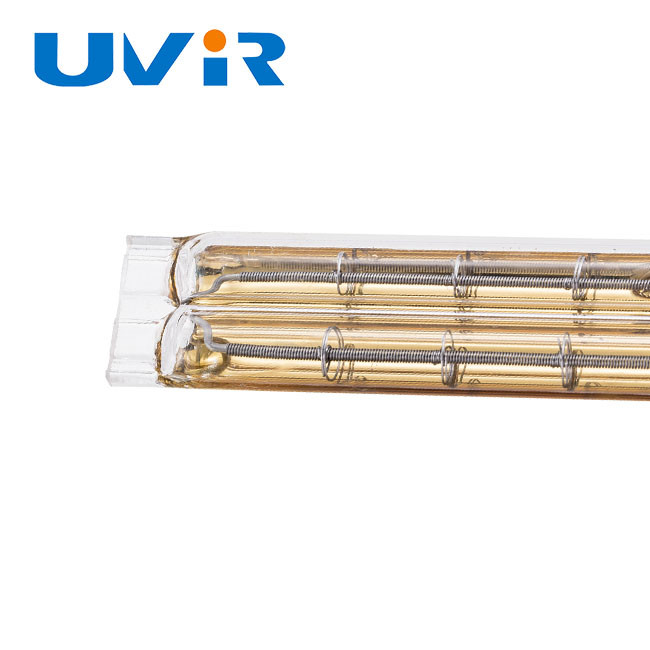

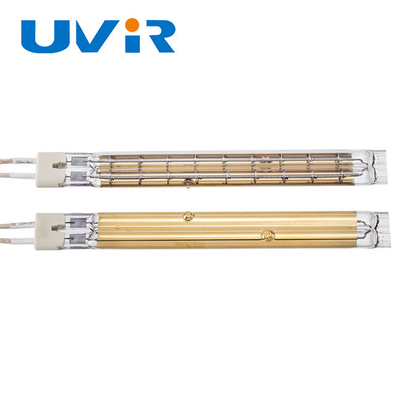

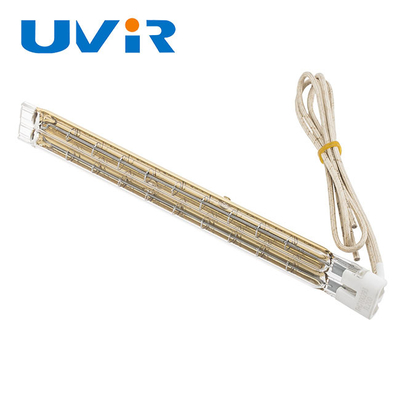

3500W Infrared Heating Element Tube Gold Short Wave For Dry Equipment

3500W Infrared Heating Element Tube Gold Short Wave For Dry Equipment

Short Wave IR Lamp Advantages

1. The wavelength is controlled in the range of 0.76 ~ 1.4 m, the user can choose different wavelength heating tubes according to the material and physical characteristics of the heated workpieces.

2. The heating tubes have high thermal efficiency, the infrared radiation efficiency can reach over 86% in a certain wavelength and direction. The thermal inertia of the infrared radiant heating tube is very small, it can reach about 50% of the rated power in 1 ~ 2 seconds after electrification, and can run at full power in about 2 ~ 4 seconds, heating up and cooling down quickly and accurately.

3. The heating tube has a small volume and a large power, the rated power of a single heating tube can be more than 6000W.

4. According to the needs of customers, a gold-containing directional reflecting layer can be sprayed on certain parts of the outer wall of the heating tube, which can greatly improve the heating efficiency, lower the temperature of the reflector.

5. high-quality quartz glass tubes and heating wire materials with professional processing technology, resulting in the long service life of infrared lamp tubes, the short-wave tube has a service life of more than 5000 hours.

6. All kinds of heating equipment made up of infrared radiation heating tube can realize automatic temperature control through temperature controller, thyristor AC power regulator or voltage regulator. Because of its small thermal inertia, the temperature control is quick and accurate.

Product information

Stock and Standard (Non-Stock) Twin Tu be Short-Wave Lamps

If the parameter is not suitable for you,Please contact me.We have a professional elite team,will provide the professional knowledge and drawings for you!

Product Coding Rule Table

Customized Service

1. All of our infrared heater lamps are customized according to your unique practical request, professional technicians do one-to-one service for you and can customize 1pc IR lamp for your quality testing at the beginning.

2. We offer OEM services, we can print your logo on Infrared heating lamps as your requirements.

After-sale Service

1. Warranty Time of Short wave Infrared heat lamp: 5,000 hours

2. During the warranty time, any non-man-made quality issue, once confirmed, we will sent the new replacement immediately without any charge.

Lamp installation precautions

1.Turn off all electrical power to your lamps when stalling or replacing them.

2.Infrared emitters should never be operated with more than the maximum rated voltage specifed.
Any longer operation at excess voltage(V>1 10% of the rated voltage) may result in destruction of
the infrared emitter.

3.Installation
