Your Infrared Radiator Customization Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | UVIR |
| Certification: | CE & ROHS |
| Model Number: | THG100162 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Each lamp in a cylinder .Then in a professional plywood box |
| Delivery Time: | 15-20 Work day |
| Payment Terms: | L/C, T/T, Western Union |
| Model No.: | THG100162 | Material: | Glass Tube |
|---|---|---|---|
| Warranty Time: | 5000 Hours | Heating Filament: | Tungsten |
| Color: | Gold | Type: | B |
| Power: | 1200W | Voltage: | 230V |
| Total Length: | 405mm | Heating Length: | 340mm |
| High Light: | Gold Coating Infrared Heat Lamp Tube,Infrared Heat Lamp Tube For Printing,SGS Infrared Heat Lamp Tube |
||

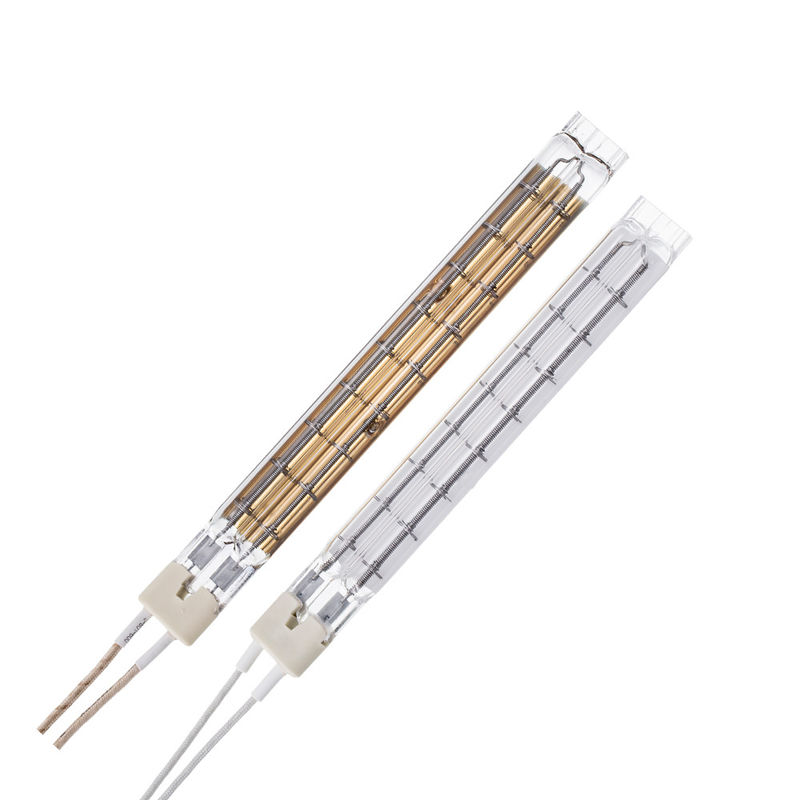

Gold Coating Infrared Heat Lamp Tube For Printing RoHS SGS authentication
Our Advantages
1. Infrared heater which is best matched to the materials to be heated, can provide energy savings of up to 50% over other technologies.
2. Very Good And Stable Quality
3. 24Hrs Customer Support
4. CE,ISO9001,RoHS,SGS authentication.
5. Low MOQ,1pcs for sample checking is available.
Product information:
| Type | Twin Tube Short Wave Halogen Infrared Heating Lamp |
| Size | 11X23mm |
| Coating | Gold |
| Power | 1200W |
| Voltage | 230V |
| OEM/ODM | many types of voltage,wattage,length,base,cables,universal burning position is available |
Stock and Standard (Non-Stock) Twin Tu be Short-Wave Lamps
| Voltage V |
Wattage W |
Twin Tube |
Total Length |
Heated Length |
Disgn Type |
Gold | White | Clear |
| 55 | 400 | 11x23 | 115 | 50 | B | THG100151 | THW100025 | THC100026 |
| 115 | 400 | 11x23 | 115 | 50 | B | THG100152 | THW100026 | THC100027 |
| 115 | 450 | 11x23 | 70 | 25 | B | THG100153 | THW100027 | THC100028 |
| 115 | 450 | 11x23 | 72 | 25 | B | THG100154 | THW100028 | THC100029 |
| 115 | 600 | 11x23 | 145 | 80 | B | THG100155 | THW100029 | THC100030 |
| 115 | 900 | 11x23 | 170 | 115 | B | THG100156 | THW100030 | THC100031 |
| 115 | 1000 | 11x23 | 192 | 127 | B | THG100157 | THW100031 | THC100032 |
| 115 | 1100 | 11x23 | 205 | 140 | B | THG100158 | THW100032 | THC100033 |
| 120 | 700 | 11x23 | 140 | 89 | B | THG100159 | THW100033 | THC100034 |
| 120 | 800 | 11x23 | 167 | 102 | B | THG100160 | THW100034 | THC100035 |
| 120 | 1180 | 11x23 | 250 | 150 | B | THG100161 | THW100035 | THC100036 |
| 230 | 1200 | 11x23 | 405 | 340 | B | THG100162 | THW100036 | THC100037 |
| 230 | 1500 | 11x23 | 300 | 200 | B | THG100163 | THW100037 | THC100038 |
| 230 | 2350 | 11x23 | 410 | 355 | B | THG100164 | THW100038 | THC100039 |
| 230 | 3000 | 11x23 | 650 | 500 | C | THG100165 | THW100039 | THC100040 |
| 230 | 500 | 15x33 | 510 | 500 | B | THG100114 | THW100061 | THC100061 |
| 400 | 4800 | 15x33 | 500 | 800 | B | THG100141 | THW100062 | THC100062 |
| 400 | 6200 | 15x33 | 1100 | 1030 | B | THG100002 | THW100063 | THC100063 |
| 400 | 15720 | 15x33 | 850 | 1334 | H | THG100186 | THW100064 | THC100064 |
| 480 | 6000 | 15x33 | 1550 | 1000 | B | THG100140 | THW100065 | THC100065 |
If the parameter is not suitable for you,Please contact me.We have a professional elite team,will provide the professional knowledge and drawings for you!
Product Coding Rule Table
Shortwave Infrared Lamp Applications :
After Sales Service
1. Package tracking
2. Technical support
3. 24 hours working time
4. Discount for reorder
5. Replacements for quality problems
6. Confidentiality of customer information
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 5-7 days, about 30 days for mass production.
Q3. Do you have any MOQ limit?
A: Usually MOQ is 2pcs for each model.
Q4. How do you ship the goods?
A: We usually ship by DHL, UPS, FedEx or TNT for sample. Airline and sea shipping for large quantity
Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system
Secondly, during the guarantee period, we will send the replacement in next order.
