Your Infrared Radiator Customization Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | UVIR |
| Certification: | CE & ROHS |
| Model Number: | THG100003 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Each lamp in a cylinder .Then in a professional plywood box |
| Delivery Time: | 15-20 Work day |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Type: | Short Wave Halogen Infrared Heater | Material: | Quartz Glass |
|---|---|---|---|
| Warrant Time: | 5000 Hours | Voltage: | 58V |
| Power: | 270W | Total Length: | 130mm |
| Heating Length: | 70mm | Coating: | Gold |
| Place Of Origin: | Guangdong, China | ||
| High Light: | Golden Twin Tube Infrared Lamps,Halogen Infrared Heaters 58V,Halogen Infrared Heaters 270W |
||

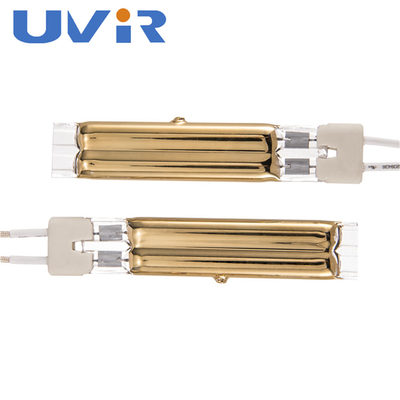

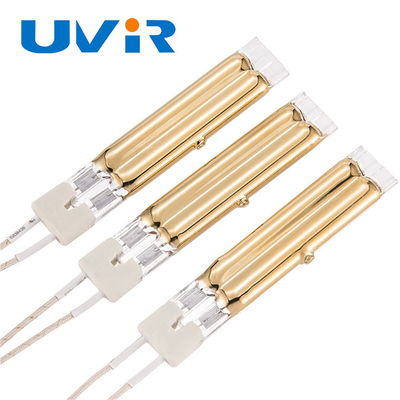

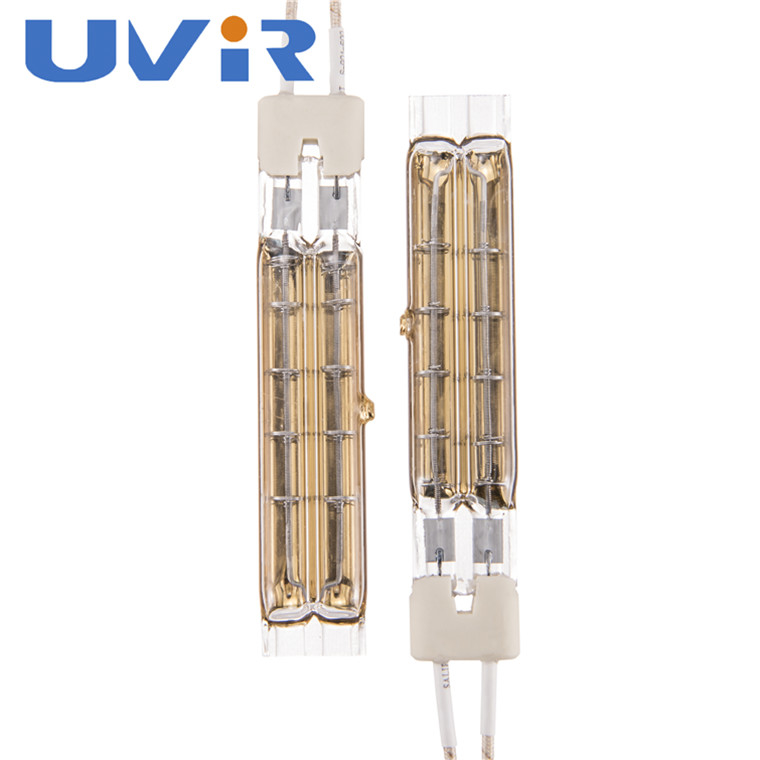

Main components of a twin tube infrared lamp:
1. Fused silica
2. Tungsten heating elements
3. Supports for heating wire
4. End plate and ceramic end
5. Wire leads ,
6. Reflective layer. Shown: gold layer
7. Proprietary gas composition.
Product parameters
| Type | Twin Tube Short Wave Halogen Infrared Heating Lamp |
| Size | 11X23mm |
| Coating | Gold |
| Power | 58V |
| Voltage | 270W |
| OEM/ODM | many types of voltage,wattage,length,base,cables,universal burning position is available |
Stock and Standard (Non-Stock) Twin Tu be Short-Wave Lamps
| Voltage V |
Wattage W |
Twin Tube |
Total Length |
Heated Length |
Disgn Type |
Gold | White | Clear |
| 55 | 400 | 11x23 | 115 | 50 | B | THG100151 | THW100025 | THC100026 |
| 115 | 400 | 11x23 | 115 | 50 | B | THG100152 | THW100026 | THC100027 |
| 115 | 450 | 11x23 | 70 | 25 | B | THG100153 | THW100027 | THC100028 |
| 115 | 450 | 11x23 | 72 | 25 | B | THG100154 | THW100028 | THC100029 |
| 115 | 600 | 11x23 | 145 | 80 | B | THG100155 | THW100029 | THC100030 |
| 115 | 900 | 11x23 | 170 | 115 | B | THG100156 | THW100030 | THC100031 |
| 115 | 1000 | 11x23 | 192 | 127 | B | THG100157 | THW100031 | THC100032 |
| 115 | 1100 | 11x23 | 205 | 140 | B | THG100158 | THW100032 | THC100033 |
| 120 | 700 | 11x23 | 140 | 89 | B | THG100159 | THW100033 | THC100034 |
| 120 | 800 | 11x23 | 167 | 102 | B | THG100160 | THW100034 | THC100035 |
| 120 | 1180 | 11x23 | 250 | 150 | B | THG100161 | THW100035 | THC100036 |
| 230 | 1200 | 11x23 | 405 | 340 | B | THG100162 | THW100036 | THC100037 |
| 230 | 1500 | 11x23 | 300 | 200 | B | THG100163 | THW100037 | THC100038 |
| 230 | 2350 | 11x23 | 410 | 355 | B | THG100164 | THW100038 | THC100039 |
| 230 | 3000 | 11x23 | 650 | 500 | C | THG100165 | THW100039 | THC100040 |
| 230 | 500 | 15x33 | 510 | 500 | B | THG100114 | THW100061 | THC100061 |
| 400 | 4800 | 15x33 | 500 | 800 | B | THG100141 | THW100062 | THC100062 |
| 400 | 6200 | 15x33 | 1100 | 1030 | B | THG100002 | THW100063 | THC100063 |
| 400 | 15720 | 15x33 | 850 | 1334 | H | THG100186 | THW100064 | THC100064 |
| 480 | 6000 | 15x33 | 1550 | 1000 | B | THG100140 | THW100065 | THC100065 |
If the parameter is not suitable for you,Please contact me.We have a professional elite team,will provide the professional knowledge and drawings for you!
