SK16 Tungsten IR Heating Halogen Lamp 3000W 400V White Reflector

SK16 Tungsten IR Heating Halogen Lamp 3000W 400V White Reflector

Brand Name:	UVIR
Model Number:	SHW100133-8
MOQ:	10
Price:	Negotiable

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Place Of Origin:

Guangdong, China

Lifetime:

5000h

Reflector:

White

Tube Length:

313mm

Base:

SK16

Tube Material:

Glass Tube

Certification:

Reponse Time:

Total Length:

378mm

Power:

3000W

Voltage:

400V

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box.

Highlight:

SK16 Base Single Tube Heat Lamps

CE Approved Halogen Quartz Lamps

10.5mm IR Heating Quartz Lamps

Product Description

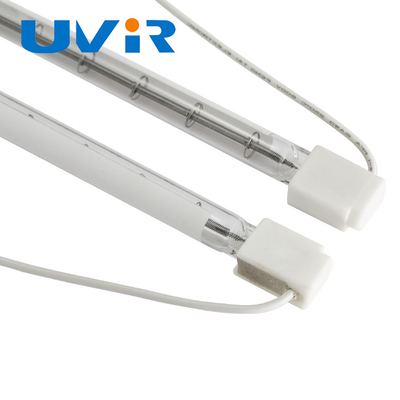

SK16 Base Tungsten IR Heating Element Halogen Quartz Lamps 10.5mm Ceramic White

Product Specifications

Attribute	Value
Place of Origin	Guangdong, China
Lifetime	5000h
Reflector	White
Tube Length	313mm
Base	SK16
Tube Material	Glass tube
Certification	CE
Response Time	1s
Total Length	378mm
Power	3000W
Voltage	400V

Key Advantages

Premium Materials: Manufactured from imported high-end quartz tube
Extended Lifespan: 5000 hours for mid-temp and low-temp models
High Efficiency: Over 85% heat efficiency at full power
Energy Saving: Gold or non-organic reflective layer concentrates radiation energy
Clean Heating: No surface corrosion or dropping off concerns
Precise Control: Adjustable heating time as needed
Environmentally Friendly: No contamination risk to environment or target objects
Customizable: Wavelength, dimensions, and filaments can be adjusted
Energy Efficient: Lower consumption with better heating results

Technical Specifications

Custom parameters available - Contact us for professional consultation and drawings

Wattage (W)	Voltage (V)	Base	Reflector
1000W	230-240	SK15/SK16/SK18	White
1000W	230-240	X	Clear
1200W	144V	SK15/SK16/SK18	White
1500W	230-240V	SK15/SK16/SK18	White
1600W	144V	SK17	White
2000W	230-240V	SK15/SK16/SK18	White
2500W	400V	SK15/SK16/SK18	White

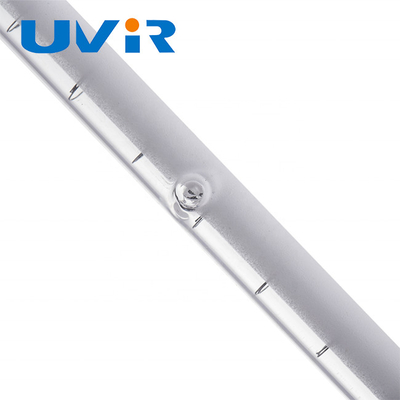

High Quality Quartz Tube

Features high-quality transparent quartz tube material that effectively increases infrared radiation density.

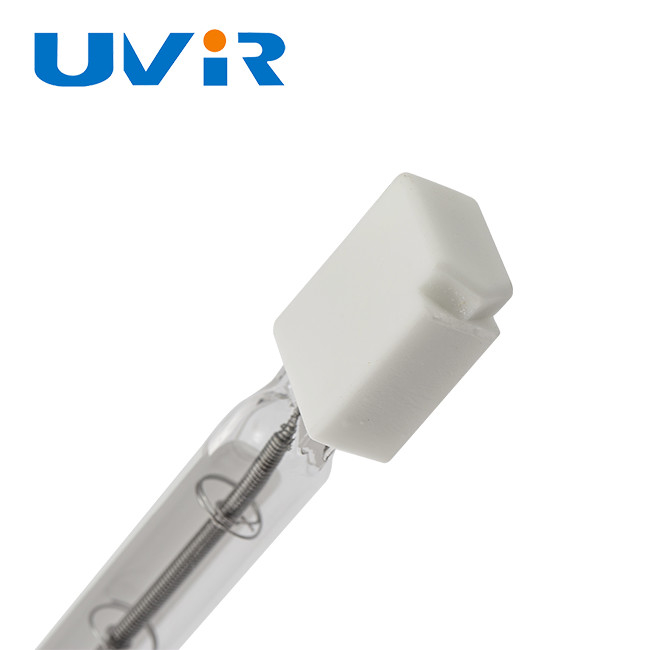

End Terminations for Single Tube IR Lamps

Product Coding Reference

Industrial Applications

Automotive: Paint drying, plastic welding, adhesive curing
Food Processing: Fruit/vegetable dehydration, chocolate melting
Glass Manufacturing: Screen printing, bending, laminating
Plastics: PVP heating, thermoplastic, rubber drying
Electronics: PCB soldering, capacitor plate drying
Textiles: Fiber drying processes
Woodworking: Wood drying, paint/ink drying

Also suitable for flooring, metal processing, paper, packaging, powder coating, rubber, and semiconductor applications.

Safety Precautions

Install in environments free from flammable, explosive, corrosive gases and conductive dust
Ensure proper positioning and fixation using appropriate metal or ceramic pipe clamps
Handle quartz glass components carefully to prevent mechanical damage
Implement protective measures according to specific heating requirements

For custom requirements or technical inquiries, please contact our professional team.
