Single Tube Carbon Felt Infrared Heating Lamp For Drying And Heating Water-based Paint

Single Tube Carbon Felt Infrared Heating Lamp For Drying And Heating Water-based Paint

Brand Name: UVIR
Model Number: SCC100078
MOQ: 2
Price: Negotiable
Detail Information
Place of Origin:
China
Certification:
CE
Warranty(Year):
1year
Heating Length:
50-1500mm
Reflector:
Clear
Base Type:
R7S
Material:
Quartz Tube/tungsten Wire
OEM/ODM:
Many Types Of Voltage,wattage,length,base,cables,universal Burning Position Is Available
Type:
Single Carbon IR Lamp
Packaging Details:
Each lamp in a cylinder .Then in a professional plywood box.
Highlight:

Drying carbon felt infrared heating lamp

,

carbon felt infrared heating lamp

Product Description




IR Lamp Advantage


  • Lamp materials: manufactured from foreign imported high-end quartz tube.
  • Longer serving life:the mid-temp and low-temp ones 5000 hours.
  • Hight efficiency:more than 85% heat efficiency of full power.
  • More effective reflective layer saves energy:gold or non-organic reflective layer have higher heating efficiency to concentrate the radiation energy to the heating object .
  • Clear heating means:Don't worry about surface corrosion and dropping off.
  • Quick controllable heat:the heating time is controllable as it is needed.
  • Clean and adorless:no risk of contamination over environment or target object to be heated.
  • Tailor made:wavelength,dimensions,filaments and others can be adjusted to ment your requirement.
  • Energy Saving:less energy consumption,smaller footprint and better heating results.




Products Description


Infrared heater which is best matched to the materials to be heated, can provide energy savings of up to 50% over other technologies. and our professional Infrared technology can know heat exactly where it is needed, with the optimum wavelength for the product.

Type

Short wave IR lamps

Model

SCC100078

Voltage

55-575V

Wattage

200-4000W

Base

R7S

Lamp tube material

Quartz tube

Reflector

Clear

OEM/ODM

many types of voltage,wattage,length,base,cables,universal burning position is available

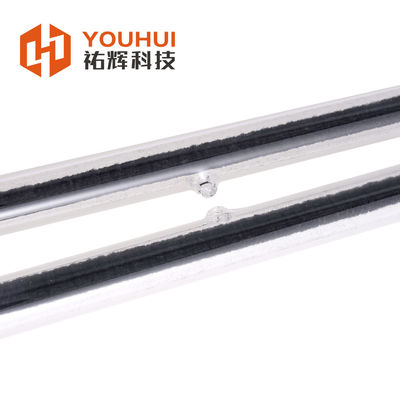

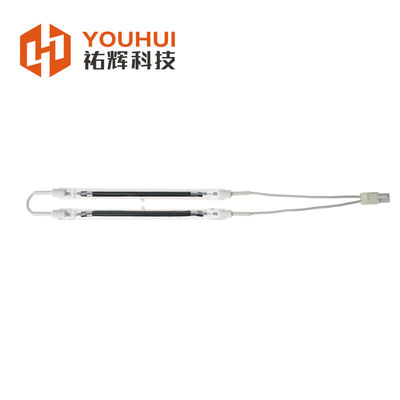

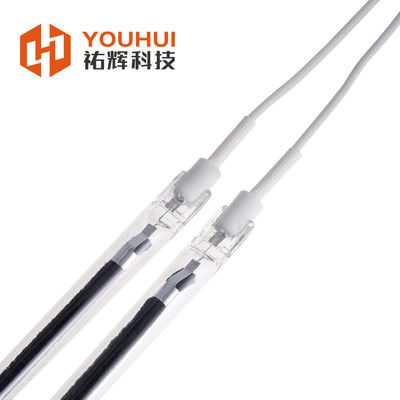

Carbon felt infrared heating lamp


Single Tube Carbon Felt Infrared Heating Lamp For Drying And Heating Water-based Paint 0

High-quality coating(can choose)

The semi-plated white coating using special technology such as quartz powder can reflect more than 90% of the infrared heat in the same direction, reducing energy loss.



Single Tube Carbon Felt Infrared Heating Lamp For Drying And Heating Water-based Paint 1




SAFETY PRECAUTIONS


1. There is no flammable, explosive, corrosive gas and conductive dust in the surrounding environment.

2. The electric heating pipe should be well positioned and fixed. The electric heating pipe is generally equipped with corresponding metal pipe clamps and ceramic pipe clamps according to the porcelain seats at both ends.

3. Insulating material of infrared electric heating tube The quartz glass is a brittle material. When installing and using it, it should be safe and use it according to the specific conditions of the heated object.


Take necessary protective measures to avoid mechanical damage
