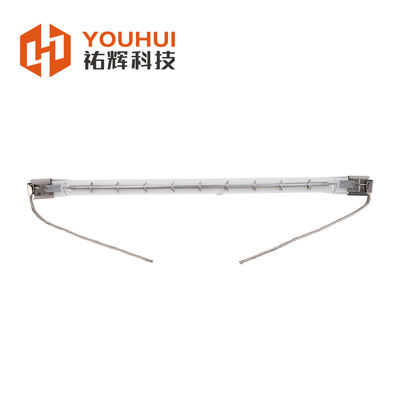

SHC100731 Clear Quartz Halogen Heater Tube 8-14mm 200-400W

Name: SHC100731 Clear Quartz Halogen Heater Tube 8-14mm 200-400W
Brand: Guangdong Youhui Technology Co., Ltd.
SKU: SHC100731
Price: 101.00 USD
Availability: InStock

Brand Name:	UVIR
Model Number:	SHC100731
MOQ:	5
Price:	Negotiable

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Wavelength:

1-2μm

Working Time:

5000h

Reflector:

Clear

Heating Length:

50-1500mm

Application:

Heating

Material:

Tungsten、quartz Glass

Reponse Time:

Power:

200-400W

Voltage:

55-575V

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box.

Highlight:

8-14mm halogen heater tube

Clear quartz halogen heater tube

Sk17 base halogen heater tube

Product Description

SHC100731 Clear Quartz 8-14mm Sk17 Base Halogen Heater Tube Infrared Emitters

Attribute	Value
Wavelength	1-2μm
Working Time	5000h
Reflector	Clear
Heating Length	50-1500mm
Application	Heating
Material	Tungsten, quartz glass
Response time	1s
Power	200-400W
Voltage	55-575V

Our Advantages

Expert advice for selecting the right heat lamp for specific applications
Custom lamp designs based on technical specifications
Flexible production of various sizes and types according to customer requirements
Sample production available with provided drawings

Product Specifications

Filament	Tungsten
Lamp reflector	White Reflector
Voltage	55-575V, customized
Wattage	200-4000W, customized
Base Type	SK17
Tube diameter	8-24mm
Life Time	>5000hrs
OEM/ODM	Custom voltage, wattage, length, base, cables available

Main Design Characteristics

Power range: 200 to 5,000 W
Voltage range: 24 to 575 V
Short, Medium and Long-Wave IR designs
Filament temperatures: 1,100°C to 2,600°C
Heat lengths: 50 to 1,500 mm
Reflective layers: gold, white
Fast response time: 1 second for S-W
Tube diameters: 8 to 25 mm
Standard stock items for immediate delivery
Custom and OEM designs available

Standard Single Tube Construction Types

Additional Standard End Terminations Available Upon Request

Product Coding Rule Table

Infrared Lamps for Industrial Applications

After Sales Service

Package tracking
Technical support
24 hours working time
Discount for reorder
Replacements for quality problems
Confidentiality of customer information

Frequently Asked Questions

1. Are you a factory or trading company?

We are a professional factory.

2. Where is your factory located? How can I visit there?

Our factory is located in JiangMen City, Guangdong Province, China. You can fly to GuangZhou BAIYUN airport directly. We warmly welcome all clients to visit us!

3. Can I get some samples?

We are happy to offer samples for you to check and test.

4. Do you have any MOQ limit?

Low MOQ, 1pc for sample checking is available.

5. What about the lead time?

Samples need 3-7 work days, mass production time needs 10-20 work days for order quantity more than 1000 PCS.

6. What certificates you have? What is the life time of the IR lamps?

CE, ISO9001, RoHS, SGS authentication already passed, each lamp with life more than 5000-20000hrs.

7. Do you offer guarantee for the products?

Yes, we will confirm the guarantee period in formal quotation together with data sheet.
