Your Infrared Radiator Customization Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | UVIR |
| Certification: | CE & ROHS |
| Model Number: | - |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Each lamp in a cylinder .Then in a professional plywood box |
| Delivery Time: | 15-20 Work day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

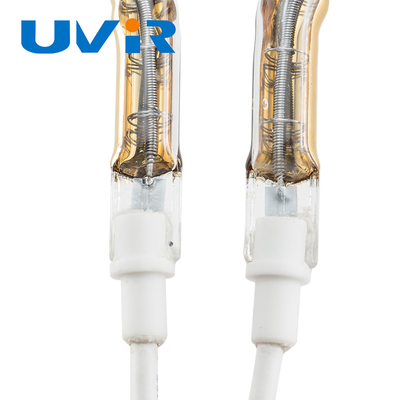

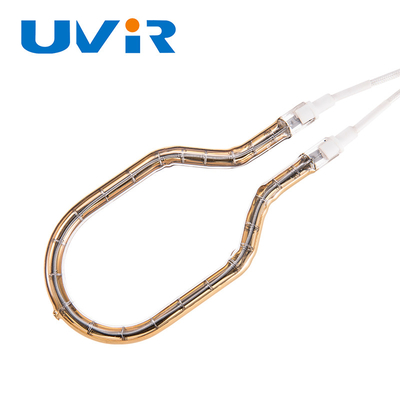

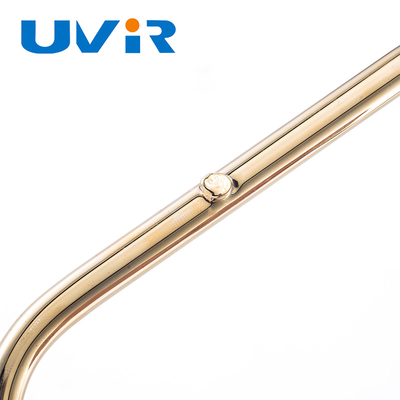

| Product Name: | Special-type Halogen Ring Infrared Ir Heating Lamp | Voltage(V):: | 24v-575V |
|---|---|---|---|
| Length:: | 39MM-606MM | Shape:: | Round Or Alien, Can Be Customized |
| Pipe Diameter: | 8mm-14mm | Coating: | Gold/White/Clear |
| Place Of Origin: | Guangdong, China | ||
| Highlight: | Automotive Ring Infrared Lamps,Thermoplastic Ring Infrared Lamps,High Performance Ring Infrared Lamps |
||
Infrared Heating Lamp-Radiation Wavelengths and Advantages
Infrared heating technology radiates and conveys large amounts of energy in a short time. By matching different optimum wavelength of infrared, our Quartz Infrared (IR) Lamps are available for all industrial and scientific heating applications. Different objects different matched IR radiation wavelength-Short wave (0.9~1.4μm), Fast response medium wave (1.4~2.0μm), Carbon medium wave (2.0~2.5μm), Medium wave (2.2~3.2μm).
Features
1. High efficiency；
2.Economical to run；
3.Have a fast response switching on and off time；
4.Effectively transmit and focus heat on materials；
| Product Name | Halogen Ring Infrared Ir Heating Lamp |
| Voltage | 24--575V |
| Length | 100-1500MM Can be customized |
| Shape | Round or alien, can be customized |
| Pipe diameter | 8-14mm |
| Brand | UV BEST |
| Customize | Yes,please contact customer service for consultation |
Main Design Characteristics
● Ring diameter from 39 up to 600 mm
● Voltage from 24 to 575 V
● Short, Medium and Long-Wave IR designs
● Availability in various tube colors
● The tube diameter can be from 8- 14 mm.
Its selection depends on the heater's diameter
and the voltage/wattage relationship
Standard stock items for immediate delivery
● Custom and OEM designs are available
Stock and Standard (Non-Stock) Short-Wave Ring Lamps
| 115 | 250 | 8 | 39 | 0 | RHC800023 | RHG800063 | RHG800064 | RHG800065 |
| 120 | 650 | 10 | 32 | 90 | RHC800028 | RHG800078 | RHG800043 | RHG800093 |
| 230 | 1500 | 8 | 80 | 0 | RHC800024 | RHG800066 | RHG800067 | RHG800068 |
| 230 | 1850 | 8 | 102 | 90 | RHC800025 | RHG800025 | RHG800025 | RHG800025 |
| 230 | 2000 | 8 | 154 | 90 | RHC800026 | RHG800072 | RHG800073 | RHG800074 |
| 230 | 2200 | 8 | 180 | 90 | RHC800027 | RHG800075 | RHG800076 | RHG800077 |
| 240 | 1000 | 10 | 65 | 90 | RHC800029 | RHG800079 | RHG800048 | RHG800094 |
| 240 | 1600 | 10 | 97 | 90 | RHC800030 | RHG800080 | RHG800049 | RHG800095 |
| 240 | 1750 | 10 | 129 | 90 | RHC800031 | RHG800081 | RHG800050 | RHG800096 |
| 480 | 2100 | 10 | 161 | 90 | RHC800032 | RHG800082 | RHG800051 | RHG800097 |
| 480 | 2500 | 10 | 193 | 90 | RHC800033 | RHG800083 | RHG800052 | RHG800098 |
| 480 | 2850 | 10 | 223 | 90 | RHC800034 | RHG800084 | RHG800053 | RHG800099 |
| 480 | 3180 | 10 | 252 | 90 | RHC800035 | RHG800085 | RHG800054 | RHG800100 |
| 480 | 3520 | 10 | 282 | 90 | RHC800036 | RHG800086 | RHG800055 | RHG800101 |
| 480 | 3800 | 10 | 312 | 90 | RHC800037 | RHG800087 | RHG800056 | RHG800102 |
| 480 | 4200 | 10 | 341 | 90 | RHC800038 | RHG800088 | RHG800057 | RHG800103 |
| 480 | 4600 | 14 | 371 | 90 | RHC800039 | RHG800089 | RHG800058 | RHG800104 |
| 480 | 5000 | 14 | 404 | 90 | RHC800040 | RHG800090 | RHG800059 | RHG800105 |
| 480 | 5700 | 14 | 478 | 90 | RHC800041 | RHG800091 | RHG800060 | RHG800106 |
| 480 | 6000 | 14 | 511 | 90 | RHC800042 | RHG800092 | RHG800061 | RHG800107 |
If the parameter is not suitable for you,Please contact me.We have a professional elite team,will provide the professional knowledge and drawings for you!
Product Coding Rule Table:
Infrared Heating Lamp-Radiation Wavelengths and Advantages
Infrared heating technology radiates and conveys large amounts of energy in a short time. By matching different optimum wavelength of infrared, our Quartz Infrared (IR) Lamps are available for all industrial and scientific heating applications. Different objects different matched IR radiation wavelength-Short wave (0.9~1.4μm), Fast response medium wave (1.4~2.0μm), Carbon medium wave (2.0~2.5μm), Medium wave (2.2~3.2μm).
OEM Service
Thanks to its long track record and wide set of products always in stock, We can advise the customer choosing the right heat lamp for the specific application. Furthermore, the Technical Department can design the right lamp based on the customer’s specific technical instructions.
We can product many sizes and types heat lamp according to customers requirement, and so on.If have drawing is beat, then we can do samples for you.
Packaging & Delivery
(1)White box single or 5 Piece/ roll packing；(2)Custom color box；(3) Customized box is avaliable
FAQ
1. What is your term of delivery?
We accept FOB, CIF, EXW etc. Please choose the one which is the most convenient and cost effective for you.
2. Do you offer guarantee for the products?
Yes, it must be. We guarantee 2 years for heaters and 5000-8000 hours for heating lamps. If it's customized heating lamp or heating unit, we will confirm with you the guarantee period in formal quotation together with data sheet.
3. What is your term of delivery?
We accept FOB, CIF, EXW etc. Usually our company send Express by DHL,UPS, FedEx,TNT,EMS. If weight is heavy, our company suggest it by Air or Sea.
