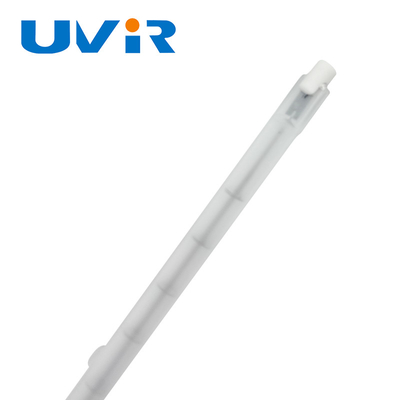

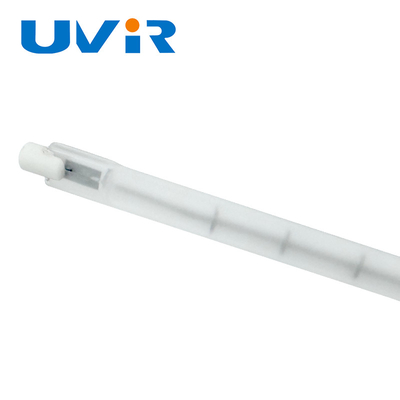

R7S Frosted Tube Short Wave Infrared Heating Lamp 200-4000W

R7S Frosted Tube Short Wave Infrared Heating Lamp 200-4000W

Brand Name:	UVIR
Model Number:	-
MOQ:	10
Price:	Negotiable

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Lamp Base:

R7S

Type:

Short Wave

Wavelength:

1-2μm

Working Time:

5000h

Color:

Frosted Tube

Tube Material:

Quartz Tube/tungsten Wire

OEM/ODM:

Many Types Of Voltage,wattage,length,base,cables,universal Burning Position Is Available

Pipe Diameter:

8-24mm，Customized

Power:

200-4000W

Voltage:

55-575V

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box.

Highlight:

Fast Drying Infrared Heating Lamps

Precise Drying Infrared Heating Lamps

Frosted Tube Infrared Heating Lamps

Product Description

R7S Frosted Tube Infrared Heating Lamps For Fast And Precise Drying Solutions

Product Specifications

Attribute	Value
Lamp Base	R7S
Type	short wave
Wavelength	1-2μm
Working time	5000h
Color	Frosted tube
Tube Material	quartz tube/tungsten wire
OEM/ODM	many types of voltage,wattage,length,base,cables,universal burning position is available
Pipe diameter	8-24mm，Customized
Power	200-4000W
Voltage	55-575V

Key Advantages

Premium materials: Manufactured from imported high-end quartz tube
Extended lifespan: 5000 hours for mid-temp and low-temp models
High efficiency: Over 85% heat efficiency at full power
Energy-saving reflective layer: Gold or non-organic coating concentrates radiation energy
Clean heating: No surface corrosion or material dropping
Precise control: Adjustable heating time as needed
Environmentally friendly: No contamination risk to environment or target objects
Customizable: Adjustable wavelength, dimensions, filaments to meet requirements
Energy efficient: Lower consumption, compact size, superior heating results

Product Details

Product Name	Single infrared heating lamp
Material	Quartz tube and tungsten wire
Voltage	55-575V, customized
Wattage	200-4000W, customized
Base	R7S
Warranty	5000 hours
Reflector	Frosted tube
OEM/ODM	Custom voltage, wattage, length, base, cables, universal burning position available

Standard Single Tube Construction Types

Additional Standard End Terminations Available Upon Request

High Quality Materials

Combining premium transparent quartz tube materials with halogen principles to effectively increase infrared radiation density, achieving ideal heating performance.

Industry Applications

Plastics Processing: IR drying of coatings, stretching/shrinking plastics, packaging, PET bottle blow molding
Photovoltaic Industry: String soldering, preheating for sputtering processes
Printing Industry: Ink curing on cloth, drying for inkjet-based CTP plates, banner machine applications
Food & Chemical Industry: Tableware disinfection, food heating, herbal medicine processing, snow/ice removal
Glass Industry: Car glass preheating, coating drying, laminated glass manufacturing
Textiles Industry: Coating drying, fabric laminating
Electronic Industry: Component coating, aging processes

Additional applications include: flooring, metal, paper, packaging, powder, coating, rubber, wood, semiconductors, and more.

Manufacturing Capabilities

We specialize in production and wholesale of ultraviolet lamps, infrared lamps, germicidal lamps, xenon lamps, and related accessories including lamp stands and transformers. All products can be customized to meet specific requirements.

Frequently Asked Questions

Q1. Can all the products be customized?

A: As the manufacturer of IR and UV lamps, we can produce all products according to your specifications.

Q2. What is the outer package of the product?

A: Standard packaging includes carton or wooden cases.

Q3. What is the processing cycle?

A: Some products are in stock. Custom orders typically require about 15 days for production.

Q4. What is the minimum order quantity?

A: Customized IR lamps typically have a minimum order of 10 pieces.

For specific requirements or inquiries, please contact our team.
