Your Infrared Radiator Customization Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | UVIR |
| Certification: | CE & ROHS |
| Model Number: | RHC800042 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Each lamp in a cylinder .Then in a professional plywood box |
| Delivery Time: | 15-20Work day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Warranty(Year): | 1-Year | Name: | Halogen Filament Lamp |
|---|---|---|---|
| Voltage: | Customized | Filament Temperature: | 100-1200C |
| Reflector: | White / Gold | Power: | Customized |
| Tube Diameter: | 8-14mm，customized | IR Diameter: | 39-606mm，customized |
| Highlight: | Circular Ring Infrared Lamps,Transparent Ring Infrared Lamps |
||

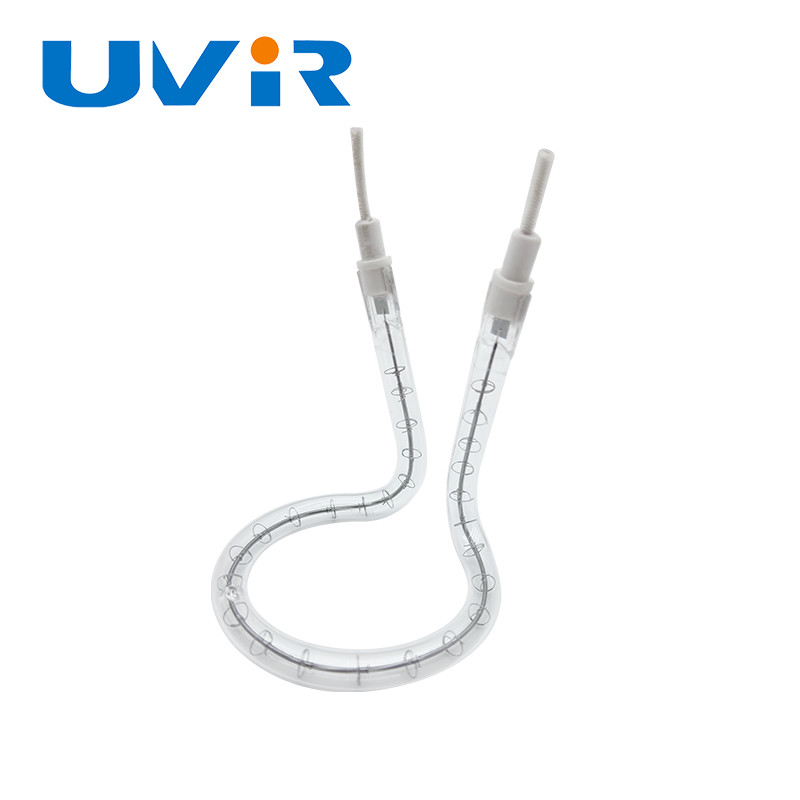

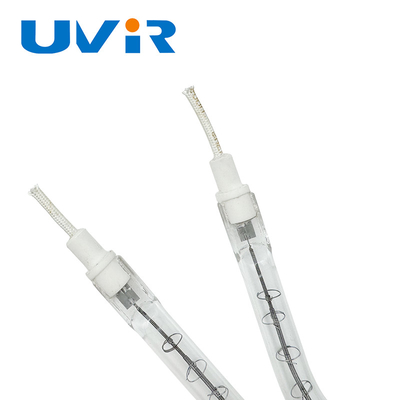

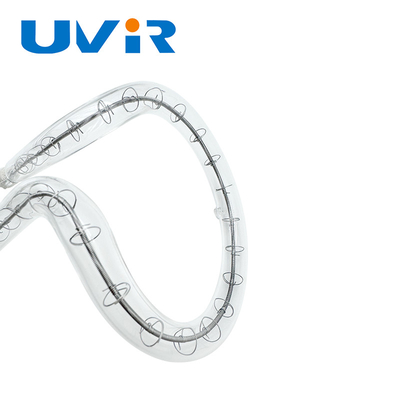

90 degree transparent high foot circular infrared heating radiator
Our company produces and wholesales: ultraviolet lamps, infrared lamps, ultraviolet germicidal lamps, xenon lamps and other special light sources and peripheral accessories products, lamp stands, transformers, etc. Various products can be customized according to customer requirements.
Reflector heat lamp
(1)To transmit and focus heat more efficiently on the material；(2)A special reflector is directly applied on the quartz tube；(3)According to the specific application and customers’ needs；(4)We usually applies gold, white and ruby reflectors on heat lamp.
Ruby heat lamp & all gold heat lamp
(1)Reduce the brightness of visible light；(2)Reduce wavelength, increase heat；
White heat lamp
(1)Imported ceramic white plating material；(2)The white reflector coating is stable, not easy to fall off；
Gold heat lamp
(1)Imported gold plated material,gold water plated；(2)Reflect heat use,Stronger reflection efficiency；(3)Reflection effect is better than white plated.
Product information
| Pipe diameter | 8-14mm,customized |
| Diameter | 39-606mm,customized |
| Voltage | 45-480V,customized |
| Power | 150-6000W,customized |
| Wavelength | Short wave, medium wave, long wave |
| Coating | Gold/White/Clear |
| Shape | Ring, oval, omega, etc., can be customized according to customer requirements |
Stock and Standard (Non-Stock) Short-Wave Ring Lamps
| 115 | 250 | 8 | 39 | 0 | RHC800023 | RHG800063 | RHG800064 | RHG800065 |
| 120 | 650 | 10 | 32 | 90 | RHC800028 | RHG800078 | RHG800043 | RHG800093 |
| 230 | 1500 | 8 | 80 | 0 | RHC800024 | RHG800066 | RHG800067 | RHG800068 |
| 230 | 1850 | 8 | 102 | 90 | RHC800025 | RHG800025 | RHG800025 | RHG800025 |
| 230 | 2000 | 8 | 154 | 90 | RHC800026 | RHG800072 | RHG800073 | RHG800074 |
| 230 | 2200 | 8 | 180 | 90 | RHC800027 | RHG800075 | RHG800076 | RHG800077 |
| 240 | 1000 | 10 | 65 | 90 | RHC800029 | RHG800079 | RHG800048 | RHG800094 |
| 240 | 1600 | 10 | 97 | 90 | RHC800030 | RHG800080 | RHG800049 | RHG800095 |
| 240 | 1750 | 10 | 129 | 90 | RHC800031 | RHG800081 | RHG800050 | RHG800096 |
| 480 | 2100 | 10 | 161 | 90 | RHC800032 | RHG800082 | RHG800051 | RHG800097 |
| 480 | 2500 | 10 | 193 | 90 | RHC800033 | RHG800083 | RHG800052 | RHG800098 |
| 480 | 2850 | 10 | 223 | 90 | RHC800034 | RHG800084 | RHG800053 | RHG800099 |
| 480 | 3180 | 10 | 252 | 90 | RHC800035 | RHG800085 | RHG800054 | RHG800100 |
| 480 | 3520 | 10 | 282 | 90 | RHC800036 | RHG800086 | RHG800055 | RHG800101 |
| 480 | 3800 | 10 | 312 | 90 | RHC800037 | RHG800087 | RHG800056 | RHG800102 |
| 480 | 4200 | 10 | 341 | 90 | RHC800038 | RHG800088 | RHG800057 | RHG800103 |
| 480 | 4600 | 14 | 371 | 90 | RHC800039 | RHG800089 | RHG800058 | RHG800104 |
| 480 | 5000 | 14 | 404 | 90 | RHC800040 | RHG800090 | RHG800059 | RHG800105 |
| 480 | 5700 | 14 | 478 | 90 | RHC800041 | RHG800091 | RHG800060 | RHG800106 |
| 480 | 6000 | 14 | 511 | 90 | RHC800042 | RHG800092 | RHG800061 | RHG800107 |
If the parameter is not suitable for you,Please contact me.We have a professional elite team,will provide the professional knowledge and drawings for you!
Product Coding Rule Table:
After Sales Service
1. Package tracking
2. Technical support
3. 24 hours working time
4. Discount for reorder
5. Replacements for quality problems
6. Confidentiality of customer information
Our Services & Strength
* Expert sales teams are responsible for accurate communication.
* Professional technical teams are responsible for new product development.
* Technical production teams are responsible for assembly line production.
* Expert quality inspection teams are responsible for quality inspection.
* Experienced after-sales teams are for all customers.
FAQ
1.Are you a factory or trading company?
We are a professional factory.
2.Where is your factory located?How can I visit there?
Our factory is located in JiangMen City,Guangdong Province,China,You can fly to GuangZhou BAIYUN airport directly,Warmly welcome
all the clients at home and broad to visit us!
3. Can I get some samples?
We are happy to offer samples for you to check and test.
4.Do you have any MOQ limit?
Low MOQ,2pcs for sample checking is available.
5.What about the lead time?
15days after receive your payment.
6.How does your factory do regarding quality control?
"Quality is priority."UVIR people always attaches more importance to QC from the very begining to the very end.Our factory has
gained CE,ISO9001,RoHS,SGS authentication.
7.About customized service?
We can provide right heat solution for you and offer OEM services, we can print your logo on your product as your requirements.
