UVIR Gold Quartz Infrared Heating Lamp Tube 100-7600W

UVIR Gold Quartz Infrared Heating Lamp Tube 100-7600W

Brand Name:	UVIR
Model Number:	-
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Brand Name:

UVIR

Warranty(Year):

1-Year

Lifespan (hours):

5000-10000h

Wattage:

100-7600W

Voltage:

24-575V

Color:

GOLD

Tube Diameter:

8-14mm

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

Quartz Glass Heating Lamp Tube

ROHS Infrared Lamp Tube

Circular Infrared Lamp Tube

Product Description

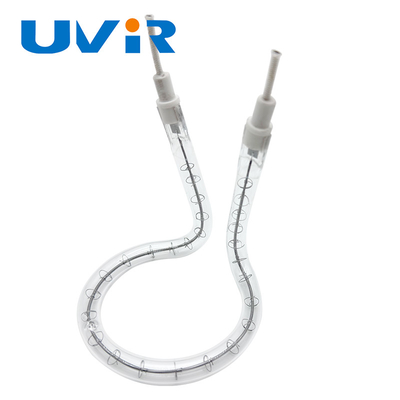

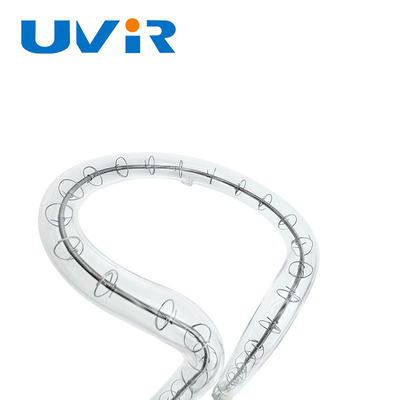

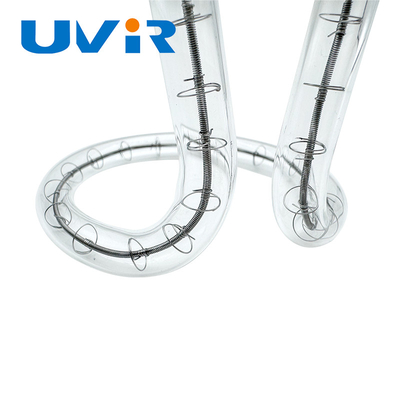

Quartz Glass Heating Lamp Tube High Foot Circular Infrared Lamp Tube

Product Specifications

Brand Name	UVIR
Warranty	1-Year
Lifespan	5000-10000h
Wattage	100-7600W
Voltage	24-575V
Color	GOLD
Tube diameter	8-14mm

Product Description

High quality quartz glass heating lamp tube, high foot circular infrared lamp tube

The Advantages Of UVIR Heat Lamp

Carbon fiber heat lamp

High-priced imported carbon fiber filament
The finished filament is smooth and does not fluff
The optimum power and maximum longevity

Quartz glass tube

High quality high-temperature quartz glass
Long serving life: over 5000 hours
Nontoxic and no peculiar smell, no risk of contamination over environment or target object to be heated

Technical Specifications

Pipe diameter	8-14mm
Diameter	39-606mm
Voltage	24-575V
Power	100-7600W
Wavelength	Short wave, medium wave, long wave
Coating	Gold/White/Clear
Shape	Ring, oval, omega, etc., can be customized according to customer requirements

High-quality coating (can choose)

The semi-plated white coating using special technology such as quartz powder can reflect more than 90% of the infrared heat in the same direction, reducing energy loss.

Industrial Applications

Industry	Application	Recommended Lamp Type
Plastics	Bottle blowing, Thermoforming, Plastic forming, Welding, Serigraphy, Strapping	Half white reflector infrared lamp
Paper	Drying, Copying, Offset printing, Ink jet, Serigraphy	Clear short wave heat lamp, Half white heat lamp
Food	Food catering, Food processing	Ruby heat lamp round halogen oven lamp
Wood & Composites	Drying, Curing, Powder coating	White reflector infrared heat lamp, Gold reflector heat lamp
Shoes & Fabrics	Drying, Curing	White reflector/gold reflector/clear/ruby
Metal	Strapping, Coil coating, Powder coating	Gold reflector heat lamp/twin tube ir lamp
Paint	Automobile repair shops, Powder coating	Ruby jacked heat lamp/reflector lamp
Animal care	Breeding and rearing of animals, Veterinary clinics, zoos, pet shops and beauty parlors	Ruby ir lamp

If the parameter is not suitable for you, please contact us. We have a professional team that will provide the professional knowledge and drawings for you!

Safety Precautions

There is no flammable, explosive, corrosive gas and conductive dust in the surrounding environment.
The electric heating pipe should be well positioned and fixed. The electric heating pipe is generally equipped with corresponding metal pipe clamps and ceramic pipe clamps according to the porcelain seats at both ends.
Insulating material of infrared electric heating tube The quartz glass is a brittle material. When installing and using it, it should be safe and use it according to the specific conditions of the heated object. Take necessary protective measures to avoid mechanical damage.

Frequently Asked Questions

Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 5-7 days, about 30 days for mass production.

Q3. Do you have any MOQ limit?

A: Usually MOQ is 2pcs for each model.

Q4. How do you ship the goods?

A: We usually ship by DHL, UPS, FedEx or TNT for sample. Airline and sea shipping for large quantity.

Q5. How to proceed an order?

Firstly let us know your requirements or application.
Secondly We quote according to your requirements.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system. Secondly, during the guarantee period, we will send the replacement in next order.
