2000W Carbon Fiber Infrared Heating Lamp with Gold Coating

2000W Carbon Fiber Infrared Heating Lamp with Gold Coating

Brand Name:	UVIR
Model Number:	TCG100035
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Name:

Carbon Fiber Infrared Heating Lamp

Material:

Quartz Glass & Carbon Fiber

Reflector:

Ceramic, Gold And No Reflector

Coating:

Gold Coating

Warranty Period:

20,000 Hours

Application:

Used In All Kinds Of Industry Heating Process

Shape:

Straight

Power:

2000w

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

Ceramic Reflector Quartz Heater Lamp

2000w Quartz Heater Lamp

15x33 Ir Heating Lamp

Product Description

15x33 TL1145 Twin Tube Quartz Heater Lamp, Gold Coating IR Heating Lamp

Product Specifications

Attribute	Value
Name	Carbon fiber Infrared heating lamp
Material	Quartz glass & Carbon fiber
Reflector	Ceramic, gold and no reflector
Coating	Gold Coating
Warranty Period	20,000 hours
Application	Used in all kinds of industry heating process
Shape	Straight
Power	2000w

Product Description

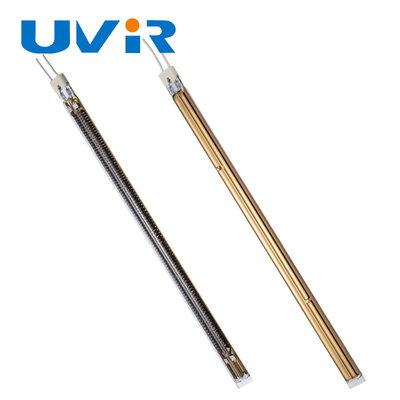

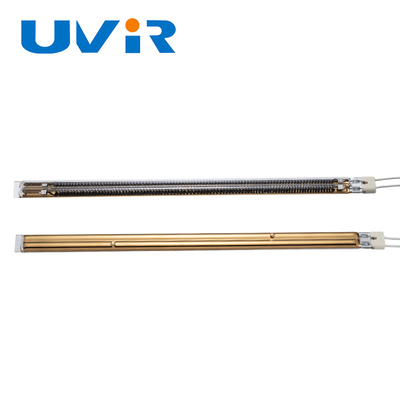

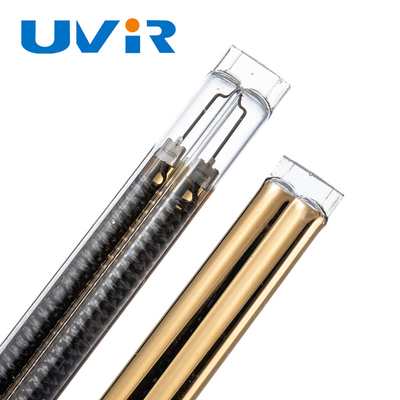

High-Purity Twin Tube Quartz Heater Lamp

This premium infrared heating lamp features an 8-shape high-purity clear quartz twin tube design. Each tube contains a U-shaped heating coil made of carbon fiber material, enclosed in inert gas. The lamp achieves an impressive power density of up to 150w/cm with rapid heating and cooling times of 3-5 seconds.

Technical Specifications

Voltage (V)	230
Wattage (W)	2000
Twin Tube	15x33
Total Length	1145
Heated Length	1000

Filament Structure

Gold Coating Benefits

1. All emitters can be coated with gold or ceramic reflectors to concentrate heat, increasing effectiveness of heat output.

2. Coated emitters are highly economical, converting nearly all consumed electrical power into usable heat.

3. For high watt density applications (surface temperature above 800°C), we recommend ceramic coating with temperature resistance up to 1000°C.

We offer standard 180° (half-tube) coating as well as custom 270° coating or other specified degrees to meet your application requirements.

Why Choose Our Infrared Heating Lamps

Great Quality: Materials approved through UL testing for superior performance
Rich Experience: 10+ years manufacturing expertise with experienced workforce
Direct Factory Production: Complete control over delivery, materials, and quality
Best After-Service: Replacement delivery within 3-5 work days for warranty claims
Safe Packaging: Protective packaging to prevent damage during shipping
Complete Fittings: Includes 2 free clamps per lamp
Flexible Payment: Accept wire transfer, PayPal, and Western Union
Global Shipping: Options include DHL, FedEx, TNT, UPS, air, and sea

Frequently Asked Questions

What is the payment term?

100% prepayment via wire transfer, PayPal, or Western Union.

Could you provide sample for performance testing and appearance checking?

Yes, we can provide samples based on your required specifications.

What information should I provide when enquiring?

Please include: lamp type, total length, heating length, wattage, voltage, ceramic end connection, lead length (standard 300mm), coating preference (gold/ceramic), and quantity. For new projects, please describe your application including material, required working temperature, heating time, and heating size.
