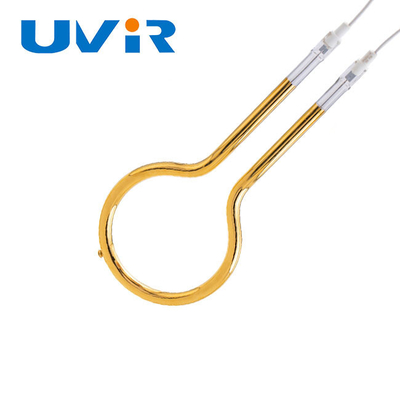

100-7600W Ring Infrared Heater Lamp , Gold Reflector Quartz IR tube heater

100-7600W Ring Infrared heater lamp , Gold Reflector quartz IR Heating Tubes







UVIR Infrared lamp Advantage

---

Infrared Heat Lamps which is best matched to the materials to be heated, can provide energy savings of up to 50% over other technologies. and our professional Infrared technology can know heat exactly where it is needed, with the optimum wavelength for the product.





Product parameters

Product name	Special-type Halogen Ring Infrared Ir Heating Lamp
Voltage	24-575V
Wavelength	Shortwave, Mediumwave, Longwave
Shape	Round or alien, can be customized
Pipe diameter	8-14mm
Material	Quartz tube
Coating	Gold
OEM/ODM	many types of voltage,wattage,length,base,cables,universal burning position is available





Application Of Infrared Heat Lamps

· IR drying of coatings on plastics

· IR stretching or shrinking plastics

· IR Heating For Plastic Packaging

· IR heating for blow moulding of PET bottles

· Infrared Heating For Photovoltaic Industry

· IR heating for string soldering

· IR preheating for sputtering processes





Advantages of Infrared Heat Lamps

1. Lamp materials: manufactured from foreign imported high-end quartz tube.
2. Longer serving life:the mid-temp and low-temp ones 5000 hours.
3. Hight efficiency:more than 85% heat efficiency of full power.
4. More effective reflective layer saves energy:gold or non-organic reflective layer have higher heating efficiency to concentrate the radiation energy to the heating object .
5. Clear heating means:Don't worry about surface corrosion and dropping off.

Product details

---









The top quality of filament can let the lamp keep long time life

(1)High efficiency.

(2)Economical to run.
(3)Have a fast response switching on and off time.

(4)Effectively transmit and focus heat on materials.

High purity99.99% qurtz glass tube

(5)Is totally transparent at IR radiation.

(6)quartz is used in halogen bulbs because it can withstand high temperatures. Quartz also ensures against heat shock.





Stock and Standard (Non-Stock) Short-Wave Ring Lamps

115	250	8	39	0	RHC800023	RHG800063	RHG800064	RHG800065
120	650	10	32	90	RHC800028	RHG800078	RHG800043	RHG800093
230	1500	8	80	0	RHC800024	RHG800066	RHG800067	RHG800068
230	1850	8	102	90	RHC800025	RHG800025	RHG800025	RHG800025
230	2000	8	154	90	RHC800026	RHG800072	RHG800073	RHG800074
230	2200	8	180	90	RHC800027	RHG800075	RHG800076	RHG800077
240	1000	10	65	90	RHC800029	RHG800079	RHG800048	RHG800094
240	1600	10	97	90	RHC800030	RHG800080	RHG800049	RHG800095
240	1750	10	129	90	RHC800031	RHG800081	RHG800050	RHG800096
480	2100	10	161	90	RHC800032	RHG800082	RHG800051	RHG800097
480	2500	10	193	90	RHC800033	RHG800083	RHG800052	RHG800098
480	2850	10	223	90	RHC800034	RHG800084	RHG800053	RHG800099
480	3180	10	252	90	RHC800035	RHG800085	RHG800054	RHG800100
480	3520	10	282	90	RHC800036	RHG800086	RHG800055	RHG800101
480	3800	10	312	90	RHC800037	RHG800087	RHG800056	RHG800102
480	4200	10	341	90	RHC800038	RHG800088	RHG800057	RHG800103
480	4600	14	371	90	RHC800039	RHG800089	RHG800058	RHG800104
480	5000	14	404	90	RHC800040	RHG800090	RHG800059	RHG800105
480	5700	14	478	90	RHC800041	RHG800091	RHG800060	RHG800106
480	6000	14	511	90	RHC800042	RHG800092	RHG800061	RHG800107



If the parameter is not suitable for you,Please contact me.We have a professional elite team,will provide the professional knowledge and drawings for you!





Product Coding Rule Table:







Application

---









SAFETY PRECAUTIONS

---

1. Components are allowed to work under the following conditions:

A. The relative humidity of the air is not more than 95 percent.
B. There is no flammable, explosive, corrosive gas and conductive dust in the surrounding environment.
C. Without violent impact and vibration;
D. The working voltage should not be greater than 1.1 times the rated value, and it can also be effectively grounded.
E. Insulation resistance ≥ 1MΩ Dielectric strength: 2KV/1min.

2. The electric heating pipe should be well positioned and fixed. The electric heating pipe is generally equipped with corresponding metal pipe clamps and ceramic pipe clamps according to the porcelain seats at both ends.
When the operating temperature exceeds 200 degrees Celsius, a high-temperature wire and screw connection that withstands 400 degrees or more is used.

3. Insulating material of infrared electric heating tube The quartz glass is a brittle material. When installing and using it, it should be safe and use it according to the specific conditions of the heated object.



Take necessary protective measures to avoid mechanical damage





FAQ

---

Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A:Sample needs 5-7 days, about 30 days for mass production.



Q3. Do you have any MOQ limit?

A: Usually MOQ is 2pcs for each model.



Q4. How do you ship the goods?

A: We usually ship by DHL, UPS, FedEx or TNT for sample. Airline and sea shipping for large quantity



Q5. How to proceed an order?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.



Q6: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system

Secondly, during the guarantee period, we will send the replacement in next order.
