Your Infrared Radiator Customization Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | UVIR |
| Certification: | CE & ROHS |
| Model Number: | - |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Each lamp in a cylinder .Then in a professional plywood box |
| Delivery Time: | 15-20 Work day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Brand Name: | UVIR | Voltage(V): | 24-575V |
|---|---|---|---|
| Pipe Diameter: | 8mm | Main Application: | Automobile, ,Hot-melt，heating |
| Power: | 100-7600W | Type: | RING |
| Highlight: | Ring Quartz Heat Lamp,100W Quartz Heat Lamp,7600W Infrared Heater Tube |
||

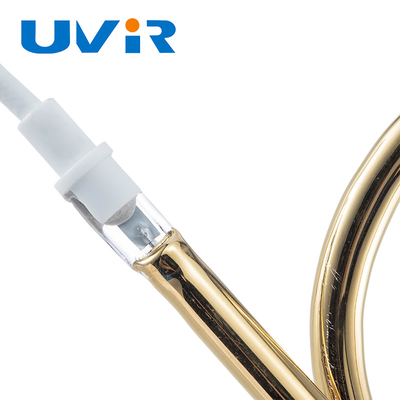

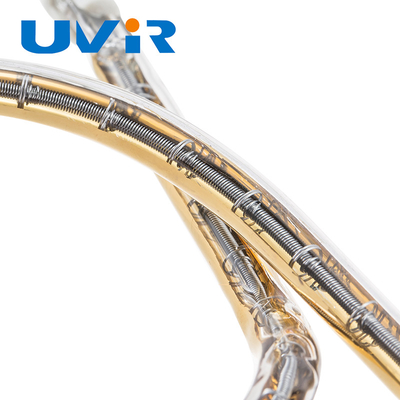

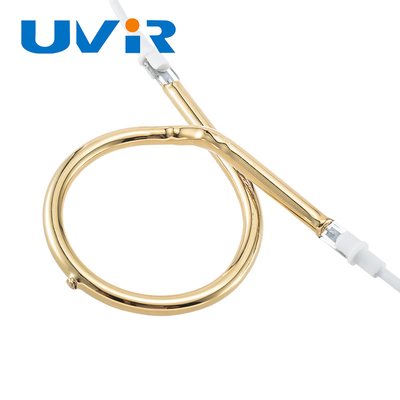

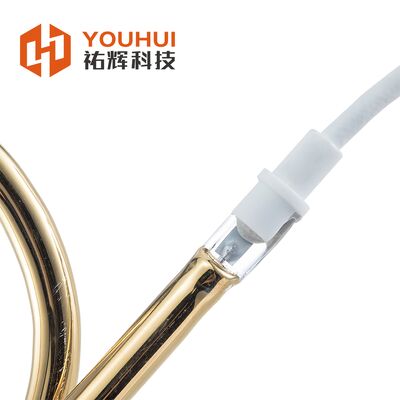

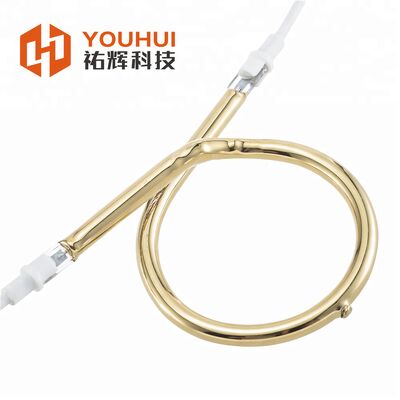

UVIR Cross heating quartz Lamps , 100-7600W Infrared heater Tube For oven heating
Feature:
(1)No far-infrared coating, spectral radiation matching absorption characteristics, long-term use of radiation performance does not degenerate,high efficiency of electric conversion.
(2)Than the average heating element energy saving about 30%.
(3)Fast heating, thermal inertia, high temperature, corrosion resistance, thermal chemical stability, long service life, high dielectric strength.
(4)No pollution, is a clean type of heater, in line with modern production of high rhythm, high quality requirements.
(5)Suitable for high hygiene requirements on household appliances.
(6)Design, manufacture, installation are very convenient, economic security.
(7)Thermal expansion coefficient is very small, the quartz glass heated to 1100 ℃ or so, into the room temperature water will not burst.
Infrared heater which is best matched to the materials to be heated, can provide energy savings of up to 50% over other technologies. and our professional Infrared technology can know heat exactly where it is needed, with the optimum wavelength for the product.
| Item | Ring tube ir lamp |
| Voltage | 24-575V |
| Outside diameters | 39-600mm |
| Tube diameter | 8-14mm |
|
Quartz tube Reflector |
Gold / Ceramic white / |
| Filament Temperature | 1100-2600 ℃ |
| OEM/ODM | many types of voltage,wattage,length,base,cables,universal burning position is available |
Ring Tube IR Lamps
Special Designs for Circular
2,3-D Surfaces
Stock and Standard (Non-Stock) Short-Wave Ring Lamps
| 115 | 250 | 8 | 39 | 0 | RHC800023 | RHG800063 | RHG800064 | RHG800065 |
| 120 | 650 | 10 | 32 | 90 | RHC800028 | RHG800078 | RHG800043 | RHG800093 |
| 230 | 1500 | 8 | 80 | 0 | RHC800024 | RHG800066 | RHG800067 | RHG800068 |
| 230 | 1850 | 8 | 102 | 90 | RHC800025 | RHG800025 | RHG800025 | RHG800025 |
| 230 | 2000 | 8 | 154 | 90 | RHC800026 | RHG800072 | RHG800073 | RHG800074 |
| 230 | 2200 | 8 | 180 | 90 | RHC800027 | RHG800075 | RHG800076 | RHG800077 |
| 240 | 1000 | 10 | 65 | 90 | RHC800029 | RHG800079 | RHG800048 | RHG800094 |
| 240 | 1600 | 10 | 97 | 90 | RHC800030 | RHG800080 | RHG800049 | RHG800095 |
| 240 | 1750 | 10 | 129 | 90 | RHC800031 | RHG800081 | RHG800050 | RHG800096 |
| 480 | 2100 | 10 | 161 | 90 | RHC800032 | RHG800082 | RHG800051 | RHG800097 |
| 480 | 2500 | 10 | 193 | 90 | RHC800033 | RHG800083 | RHG800052 | RHG800098 |
| 480 | 2850 | 10 | 223 | 90 | RHC800034 | RHG800084 | RHG800053 | RHG800099 |
| 480 | 3180 | 10 | 252 | 90 | RHC800035 | RHG800085 | RHG800054 | RHG800100 |
| 480 | 3520 | 10 | 282 | 90 | RHC800036 | RHG800086 | RHG800055 | RHG800101 |
| 480 | 3800 | 10 | 312 | 90 | RHC800037 | RHG800087 | RHG800056 | RHG800102 |
| 480 | 4200 | 10 | 341 | 90 | RHC800038 | RHG800088 | RHG800057 | RHG800103 |
| 480 | 4600 | 14 | 371 | 90 | RHC800039 | RHG800089 | RHG800058 | RHG800104 |
| 480 | 5000 | 14 | 404 | 90 | RHC800040 | RHG800090 | RHG800059 | RHG800105 |
| 480 | 5700 | 14 | 478 | 90 | RHC800041 | RHG800091 | RHG800060 | RHG800106 |
| 480 | 6000 | 14 | 511 | 90 | RHC800042 | RHG800092 | RHG800061 | RHG800107 |
If the parameter is not suitable for you,Please contact me.We have a professional elite team,will provide the professional knowledge and drawings for you!
Product Coding Rule Table:
OEM Service
Thanks to its long track record and wide set of products always in stock, We can advise the customer choosing the right heat lamp for the specific application. Furthermore, the Technical Department can design the right lamp based on the customer’s specific technical instructions.
We can product many sizes and types heat lamp according to customers requirement, and so on.If have drawing is beat, then we can do samples for you.
FAQ
1. Payment
We accept T/T, Escrow, and western Union
2.Shipping
Usually your parcels are shipped within 3 days.
3. Can I have samples? Is it free?
Yes, we are happy to offer samples for you to check and test. Depends on sample quantity and product model, we will confirm with you whether it's free sample or not.
4. How I make the order from your company?
Usually we will quote you the best price within 24 hours after your inquiry.
5. Is LiangDi a factory or trading company?
UVIR is a factory, we are professional manufacturer of infrared terrace heaters and heating lamps since 1994.
