Your Infrared Radiator Customization Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | UVIR |
| Certification: | CE & ROHS |
| Model Number: | TMG100011 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Each lamp in a cylinder .Then in a professional plywood box |
| Delivery Time: | 15 Work day |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Name: | Twin Tube Carbon Fiber IR Heating Lamp | Material: | Carbon Fiber & Glass Tube |
|---|---|---|---|
| Power: | 4000W | Coating: | Gold Coating |
| Warranty Period: | 10,000 Hours | Application: | Glass Fiber Products |
| Total Length: | 845 Mm | ||
| Highlight: | Carbon Fiber IR Heating Lamp 4000W,Twin Tube Infrared Heating Lamp,4000W Golden Infrared Heating Lamp |
||

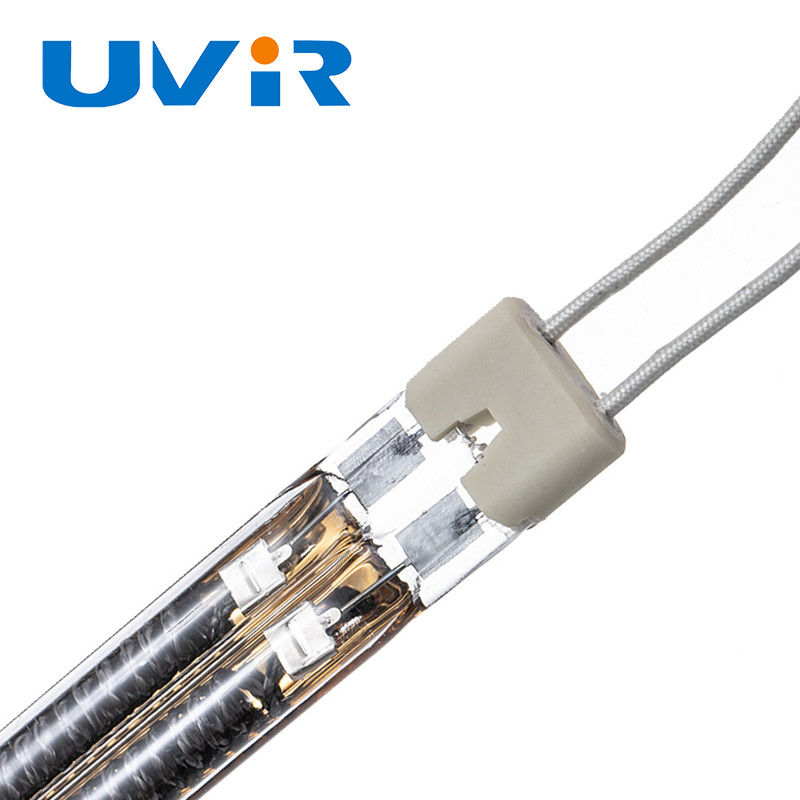

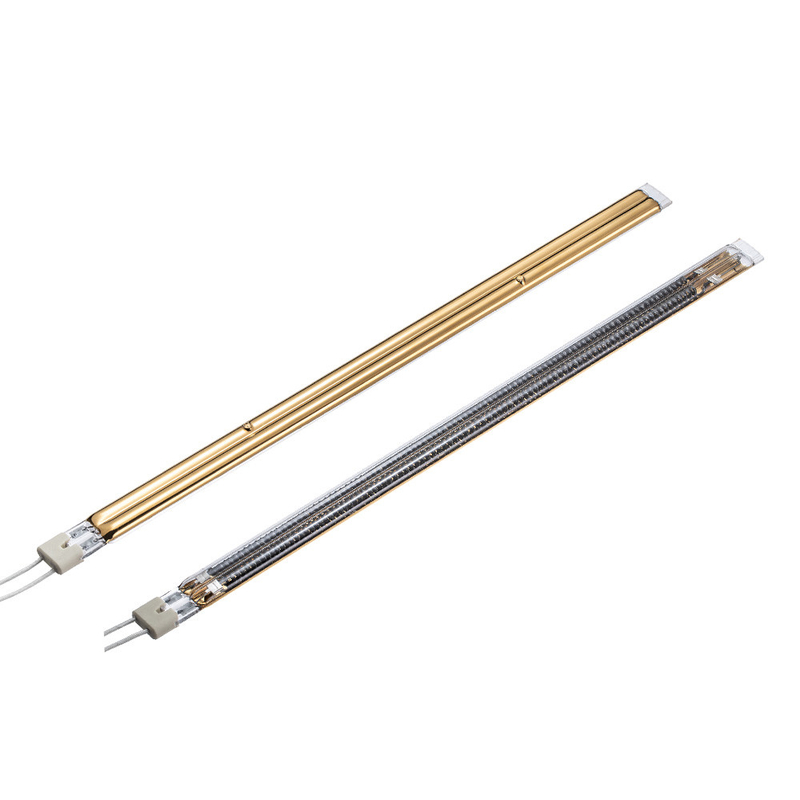

Medium wave Golden Carbon Fiber Infrared Heating Lamp 4000W
No.1 Product information
For the emitters with high watt density or the surface temperature of the tube above 800°C , we suggest to use ceramic coating as reflector because the temperature resistance is up to 1000°C .
In addition to 180°(half-tube) coating, we also manufacture 270° coating or other customer specified degrees.
| Voltage | 230V |
| Power | 4000W |
| Coating | Gold |
No.2 Product information
Infrared heater which is best matched to the materials to be heated, can provide energy savings of up to 50% over other technologies. and our professional Infrared technology can know heat exactly where it is needed, with the optimum wavelength for the product.

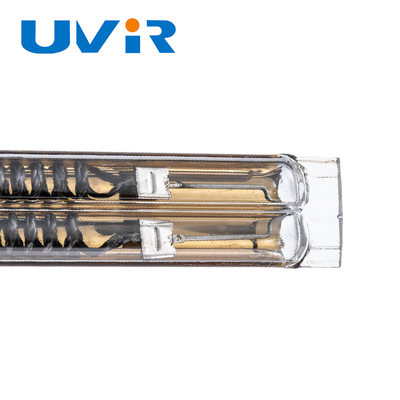

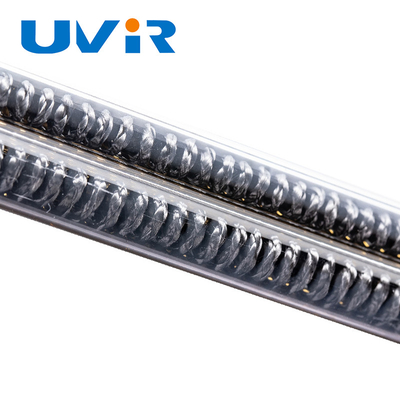

No.3 IR Twin Tube
Infrared (IR) is a part of electromagnetic spectrum ranging from 0.76μm to 1000μm and lies just beyond red color of visible light. Infrared is invisible. However it has properties similar to light i.e. it travels at the speed of light, it can be directed or focused and it travels very well even in vacuum.
When IR radiation is absorbed by an object, heat is generated internally in the object as IR causes the atom of the object to vibrate, raising its temperature. IR does not need any medium like air or water to heat a substance.
No.4 Customized Application
(1)Heater: Space heater, Sauna, Electric hot table, Incubating, Brooders, Farm green house.
(2)Automotive: Primer/Color/Powder coat, Seat de-wrinkling, Head liner forming
(3)Plastics: Welding, Forming, Softening, Curing, Drying
(4)Printing: Ink drying, Silk Screening, Bindings, Glue drying
(5)Food: Baking, Browning, Dehydrating, Pasteurizing
(6)Textiles: Web Drying, Finishing, Pre-shrinking
(7)Glass-Ceramics: Heating safety glass, Drying mirrors, Drying frit.
No.5 FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer.
2. What's the lamp you can do ?
Our main Products is :
Short wave infrared lamp
Medium wave infrared lamp
Customized special shape infrared lamp
All the lamps we can do single and twin tube ,the filament is halogen and carbon filber.
3. If I want to buy a lamp, what parameters need to provide?
Input Voltage
Lamp Wattage
Total Length
Heated Length
Tube Diameter
Reflector
Lead wire
4. What is your company`s payment terms?
We accept: T/T,Western Union,MoneyGram,Paypal,Trade Assurance
