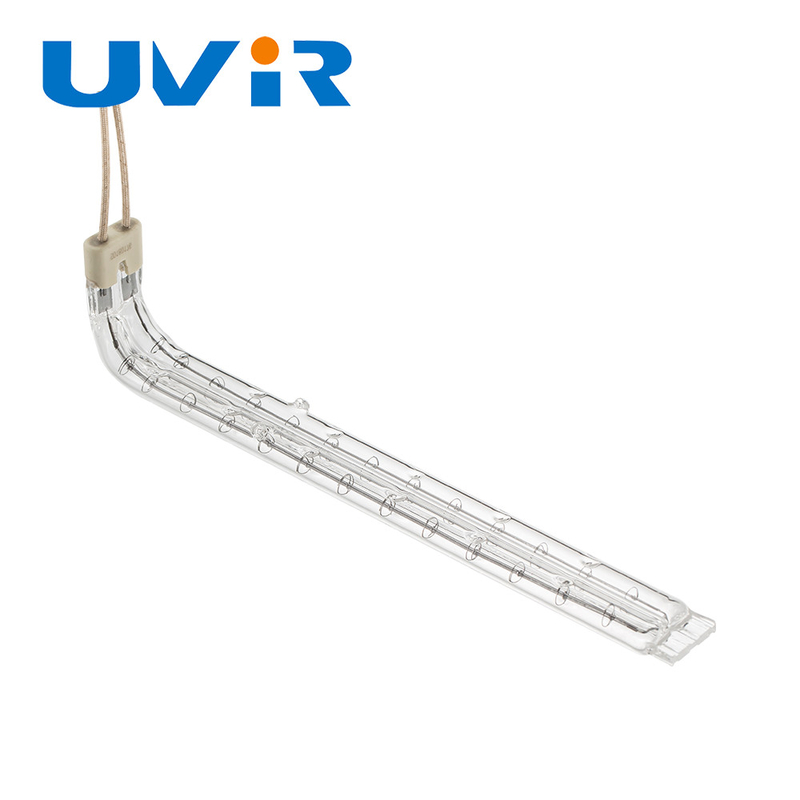

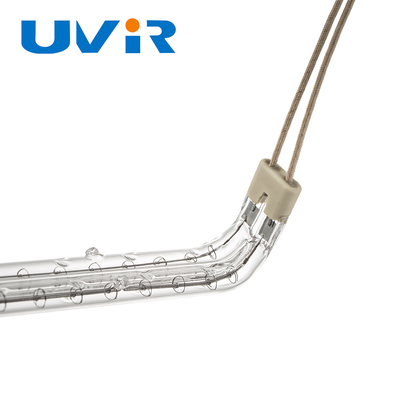

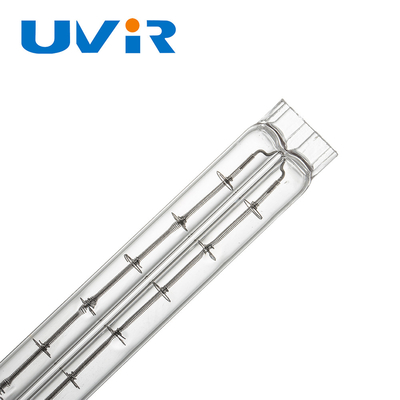

U Shaped 150-6000W High Purity Quartz Infrared Heating Element Tube Halogen Quartz Glass Lamp

U Shaped 150-6000W High Purity Quartz Infrared Heating Element Tube Halogen Quartz Glass Lamp

Brand Name:	UVIR
Model Number:	3D-U shape
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Voltage(V):

45-480V

Lighting Solutions Service:

Lighting And Circuitry Design

Color:

Clear,White,gold

Power:

150-6000W

Quartz Tube:

8-14mm

Coating:

Clear

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

Uncoated Infrared Heating Lamp Tube

Uncoated Infrared Heating Element Tube

14mm Quartz Infrared Heating Element Tube

Product Description

U Shaped Uncoated Infrared Heating Element Tube Halogen Quartz Glass

U-shaped uncoated halogen quartz glass infrared heating lamp designed for industrial heating applications.

Reflector Options

All our emitters can be coated with gold or ceramic reflectors to concentrate heat and increase thermal efficiency. Gold/ceramic coated emitters convert nearly all electrical power into heat. For high watt density applications or surface temperatures exceeding 800°C, we recommend ceramic coating with temperature resistance up to 1000°C. Custom coating degrees available beyond standard 180° (half-tube) coverage.

Product Advantages

High purity quartz with SiO₂ content > 99.99%
Working temperature: 1250°C; Softening temperature: 1730°C
Excellent thermal stability
Resistant to acids and alkalis
Superior electrical insulation properties
High transmission rates: Visible light >93%, UV light >85%

Technical Specifications

Product Name	3D Infrared Lamp
Voltage (V)	45-480V
Wattage (W)	150-6000W
Quartz Tube (mm)	8-14mm
Shape	U Shaped
Reflector	Clear

Product Models

115	410	10		SHG300169	SHW300001	SHC300002	280770
115	510	10		SHG300049	SHW300002	SHC300003	284343
115	520	10		SHG300043	SHW300003	SHC300004	282094
115	600	10		SHG300050	SHW300004	SHC300005	282016
115	710	10		SHG300164	SHW300005	SHC300006	282014
115	1100	10		SHG300165	SHW300006	SHC300007	283932
115	1100		11x23	THG300039	THW300001	THC100001	282002
115	1320	10		SHG300037	SHW300007	SHC300008	280773
120	1330	10		SHG300166	SHW300008	SHC300009	284058
120	1450	10		SHG300170	SHW300009	SHC300010	305417
120	1630	10		SHG300035	SHW300010	SHC300011	305418
230	2000	10		SHG300167	SHW300011	SHC300012	314255
230	2200	10		SHG300045	SHW300012	SHC300013	282009
230	2200	10		SHG300046	SHW300013	SHC300014	282008
230	2290	14		SHG300171	SHW300014	SHC300015	297058
230	2800		11x23	THG300038	THW300002	THC300002	281997
240	800	10		SHG300052	SHW300015	SHC300016	283640
240	810	10		SHG300168	SHW300016	SHC300017	280728
240	800	10		SHG300042	SHW300017	SHC300018	292093
240	880	10		SHG300056	SHW300018	SHC300019	280727

Contact us for custom parameter requirements. Our professional engineering team provides technical expertise and custom drawings.

Infrared Lamp Application Fields

Plastics Processing: IR drying of coatings, stretching/shrinking plastics, plastic packaging, PET bottle blow molding
Photovoltaic Industry: IR heating for string soldering, preheating for sputtering processes
Printing Industry: IR curing ink on cloth, drying for inkjet-based CTP plates, drying printing products for banner machines
Food and Chemical Industry: IR disinfection of tableware, heating of chicken and vegetables, heating natural herbal medicine, snow and ice removal
Glass Industry: IR preheating of car glass, drying coatings on glass, manufacturing and cutting laminated glass
Textiles Industry: IR drying of coatings on textiles, laminating fabrics
Electronic Industry: Coatings on electronic components, component aging processes

OEM Services

We provide expert guidance in selecting the optimal heat lamp for specific applications. Our technical department designs custom lamps based on your technical specifications. We manufacture various sizes and types according to customer requirements. Submit drawings for sample production.

Frequently Asked Questions

Can I get some samples?

We are happy to offer samples for testing and evaluation.

Do you have any MOQ limit?

Low minimum order quantity - 1 piece available for sample checking.

What about the lead time?

15-20 days after receiving payment.

How does your factory do regarding quality control?

"Quality is priority." Our factory maintains strict quality control from start to finish, with CE, ISO9001, RoHS, and SGS certifications.
