3D Contoured Gold Reflector Infrared Heating Element Tube with 150-6000W Power for Plastic Welding

3D Contoured Gold Reflector Infrared Heating Element Tube with 150-6000W Power for Plastic Welding

Brand Name:	UVIR
Model Number:	-
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,MoneyGram,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Name:

3d Halogen Heating Tube Emitter Lamp

Specification:

Short Wave Infrared Lamp

Voltage:

45-480V

Tube Color:

Gold Reflector

Color:

Transparent

Power:

150-6000W

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

6000W Infrared Heat Lamp Tube

3D Infrared Heat Lamp Tube

150W Infrared Heating Element Tube

Product Description

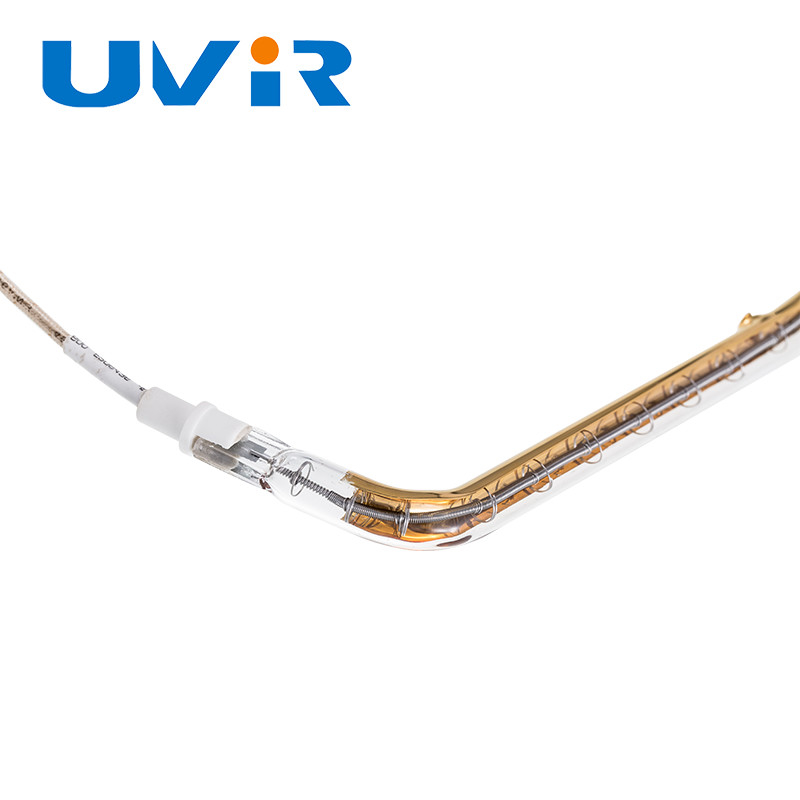

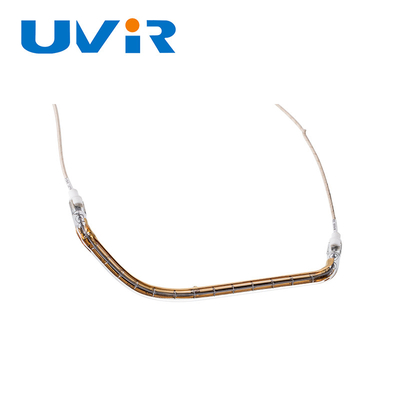

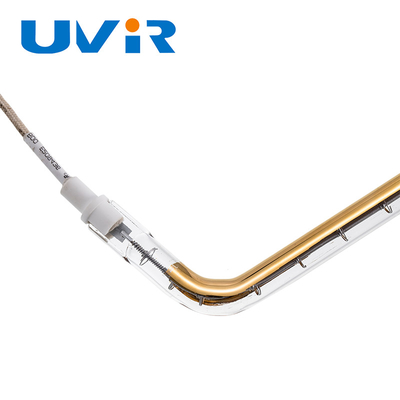

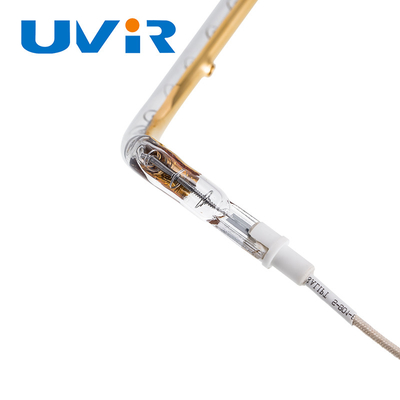

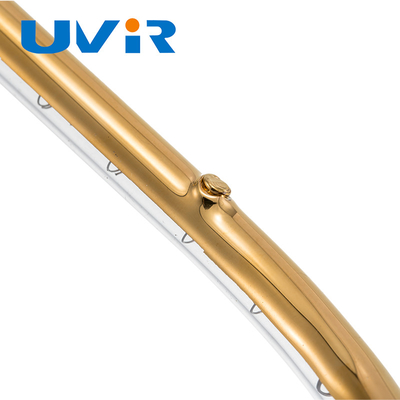

UVIR Gold 3D Short Wave Infrared Heat Lamp Tube for Plastic Welding

High-performance UVIR gold 3D short wave infrared heat lamp specifically designed for precision plastic welding applications.

Quartz Glass Tube Features

High-quality high-temperature quartz glass construction
Extended service life: over 5000 hours
Non-toxic and odor-free operation
No risk of contamination to environment or heated objects

Product Specifications

We utilize premium quartz tubes cut to customer specifications, with equipment imported from Japan and Germany. Our proprietary filament coiling machines and high-quality reflector materials from GE and Heraeus ensure superior product performance.

Product Name	Infrared Lamp
Finished	Gold Reflector
Rated Voltage	45-480V
Power	150-6000W
Lifetime	5000 hours
OEM/ODM	Custom voltage, wattage, length, base, cables, and universal burning positions available

Available Configuration Options

Voltage (V)	Wattage (W)	Quartz Tube (mm)	Shape	Reflector	UVIR NO.	FRIMO NO.
115	510	10	U	Gold	SHG300049	284343
230	800	10	U	Gold	SHG300052	293640
115	710	10	U	Gold	SHG300054	282014
230	1100	10	U	Gold	SHG300053	283932
230	1330	10	U	Gold	SHG300166	294058
115	600	10	L	Gold	SHG300050	282106
115	520	10	3D	Gold	SHG300043	282094
230	880	10	3D	Gold	SHG300042	282093
230	1100	11*23	L	Gold	SHG300039	282002
230	2800	11*23	L	Gold	SHG300038	281997
230	2200	10	3D	Gold	SHG300045	282009
230	2200	10	3D	Gold	SHG300046	282008
230	2000	10	3D	Gold	SHG3000167	314255
230	910	10	3D	Gold	SHG300056	280727
230	810	10	3D	Gold	SHG300168	200728
230	1320	10	3D	Gold	SHG300037	280773
115	410	10	3D	Gold	SHG300169	280770
230	1450	10	3D	Gold	SHG300170	305417
230	1630	10	3D	Gold	SHG300035	305418
230	2290	14	3D	Gold	SHG300171	297058

If these parameters don't meet your requirements, please contact us. Our professional team will provide expert knowledge and custom drawings for your specific application.

Infrared Heating Technology: Wavelengths and Advantages

Infrared heating technology delivers substantial energy rapidly through optimized wavelength matching. Our quartz infrared lamps are engineered for all industrial and scientific heating applications, with wavelength options including Short wave (0.9~1.4μm), Fast response medium wave (1.4~2.0μm), Carbon medium wave (2.0~2.5μm), and Medium wave (2.2~3.2μm).

Frequent on/off cycling capability
Rapid 1-2 second response time to full power infrared heating
Adjustable output power via voltage regulation (0V to rated voltage)
Precise temperature control (±1℃) with SCR regulators or solid state relays
Compact design with flexible horizontal or vertical mounting options
Suitable for all industrial heating applications with working temperatures up to 1000℃
High-efficiency reflectors: Gold (90% reflective rate) and Ceramic white (70% reflective rate)
Wavelength-matched radiation for different materials and applications

If these parameters don't meet your requirements, please contact us. Our professional team will provide expert knowledge and custom drawings for your specific application.

Our Services & Manufacturing Strength

Expert sales teams ensuring accurate communication and customer support
Professional technical teams dedicated to new product development
Skilled production teams managing assembly line manufacturing
Rigorous quality inspection teams maintaining product excellence
Experienced after-sales teams providing comprehensive customer service

Frequently Asked Questions

Q1. Can all the products be customized?

A: As the manufacturer of IR lamps, UV lamps, and IR accessories, all our products can be customized according to your specifications.

Q2. What is the outer package of the product?

A: Carton packing or wooden packing options available.

Q3. What is the processing cycle?

A: Some products are available from stock. Custom orders typically require approximately 15 days for production.

Q4. What is the minimum order quantity?

A: Customized IR lamps typically have a minimum order quantity of 2 pieces.
