Your Infrared Radiator Customization Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | UVIR |
| Certification: | CE & ROHS |
| Model Number: | SHG300045 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Each lamp in a cylinder .Then in a professional plywood box |
| Delivery Time: | 5-8 Work day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Product Name:: | Coffee Maker Heating Element | Type:: | Electric Heater Parts |
|---|---|---|---|
| Power Source:: | Electric | Model Number:: | SHG300045 |
| Tube Material:: | Quartz Tube | Reflector::: | Gold |
| Voltage:: | 230V | Customized:: | Yes, According To Your Requirement |
| Highlight: | 2200W Ring Infrared Lamps,Ring Gold Reflector Infrared Lamps,230v Ring Gold Infrared Lamps |
||

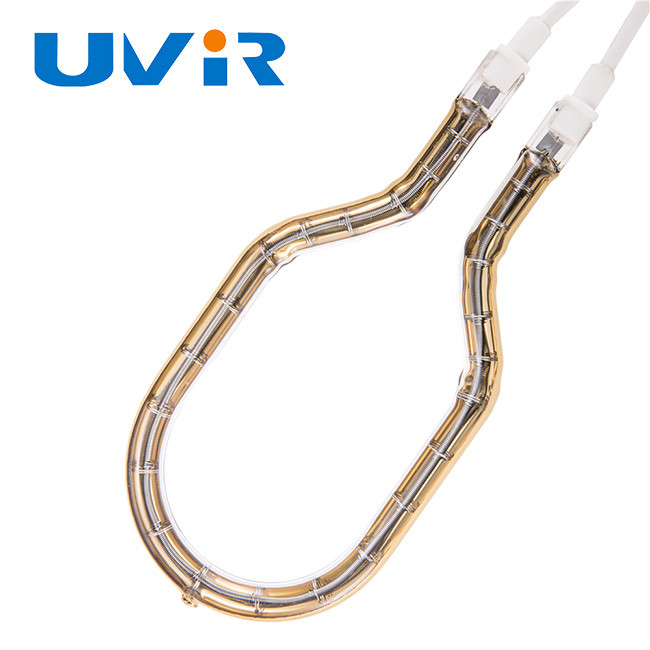

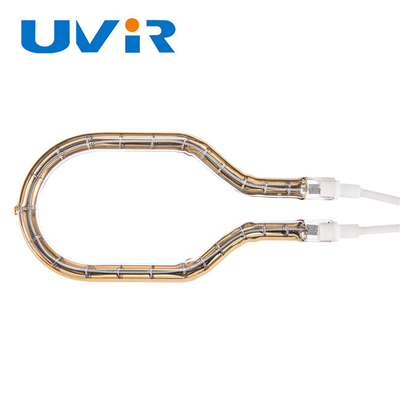

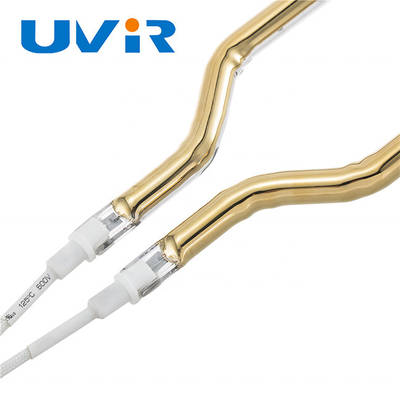

Unique Design 230v 2200W Gold Reflector Electric Heat Element
Products Description
- Lamp materials: manufactured from foreign imported high-end quartz tube.
- Longer serving life:the mid-temp and low-temp ones 5000 hours.
- Hight efficiency:more than 85% heat efficiency of full power.
- More effective reflective layer saves energy:gold or non-organic reflective layer have higher heating efficiency to concentrate the radiation energy to the heating object .
- Clear heating means:Don't worry about surface corrosion and dropping off.
- Quick controllable heat:the heating time is controllable as it is needed.
- Clean and adorless:no risk of contamination over environment or target object to be heated.
- Tailor made:wavelength,dimensions,filaments and others can be adjusted to ment your requirement.
- Energy Saving:less energy consumption,smaller footprint and better heating results.
| UVIR No. | SHG300045 |
| FRIMO No. | 282009 |
| Voltage (V) | 230 |
| Wattage (W) | 2200 |
| Quartz Tube (mm) | 10 |
| Shape | 3D |
| Reflector | Gold |
Stock and Standard (Non-Stock) Short-Wave Ring Lamps
| 115 | 250 | 8 | 39 | 0 | RHC800023 | RHG800063 | RHG800064 | RHG800065 |
| 120 | 650 | 10 | 32 | 90 | RHC800028 | RHG800078 | RHG800043 | RHG800093 |
| 230 | 1500 | 8 | 80 | 0 | RHC800024 | RHG800066 | RHG800067 | RHG800068 |
| 230 | 1850 | 8 | 102 | 90 | RHC800025 | RHG800025 | RHG800025 | RHG800025 |
| 230 | 2000 | 8 | 154 | 90 | RHC800026 | RHG800072 | RHG800073 | RHG800074 |
| 230 | 2200 | 8 | 180 | 90 | RHC800027 | RHG800075 | RHG800076 | RHG800077 |
| 240 | 1000 | 10 | 65 | 90 | RHC800029 | RHG800079 | RHG800048 | RHG800094 |
| 240 | 1600 | 10 | 97 | 90 | RHC800030 | RHG800080 | RHG800049 | RHG800095 |
| 240 | 1750 | 10 | 129 | 90 | RHC800031 | RHG800081 | RHG800050 | RHG800096 |
| 480 | 2100 | 10 | 161 | 90 | RHC800032 | RHG800082 | RHG800051 | RHG800097 |
| 480 | 2500 | 10 | 193 | 90 | RHC800033 | RHG800083 | RHG800052 | RHG800098 |
| 480 | 2850 | 10 | 223 | 90 | RHC800034 | RHG800084 | RHG800053 | RHG800099 |
| 480 | 3180 | 10 | 252 | 90 | RHC800035 | RHG800085 | RHG800054 | RHG800100 |
| 480 | 3520 | 10 | 282 | 90 | RHC800036 | RHG800086 | RHG800055 | RHG800101 |
| 480 | 3800 | 10 | 312 | 90 | RHC800037 | RHG800087 | RHG800056 | RHG800102 |
| 480 | 4200 | 10 | 341 | 90 | RHC800038 | RHG800088 | RHG800057 | RHG800103 |
| 480 | 4600 | 14 | 371 | 90 | RHC800039 | RHG800089 | RHG800058 | RHG800104 |
| 480 | 5000 | 14 | 404 | 90 | RHC800040 | RHG800090 | RHG800059 | RHG800105 |
| 480 | 5700 | 14 | 478 | 90 | RHC800041 | RHG800091 | RHG800060 | RHG800106 |
| 480 | 6000 | 14 | 511 | 90 | RHC800042 | RHG800092 | RHG800061 | RHG800107 |
Product Coding Rule Table:
If the parameter is not suitable for you,Please contact me.We have a professional elite team,will provide the professional knowledge and drawings for you!
Application
Automobile manufacturing: Paint drying, Plastic welding, Adhesive curing
Food industry: Fruit and vegetable dehydration, Chocolate melting
Glass industry: Glass screen printing, Bending, Laminating
Plastic industry: PVP heating, Thermoplastic, Rubber drying
Semiconductor industry: Printed circuit soldering, Capacitor plate drying
Textile industry: Drying of textile fibers
Wood industry: Wood drying, Paint ink drying
Our lamps also can used in more industries,such as:The floor,glass,metal,paper,packaging,
powder,coating,rubber,textile,wood,semiconductors and etc...
If you have any requirement,please contact us.
