Your Infrared Radiator Customization Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | UVIR |
| Certification: | CE & ROHS |
| Model Number: | SHW300081 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Each lamp in a cylinder .Then in a professional plywood box |
| Delivery Time: | 15-20 Work day |
| Payment Terms: | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Name:: | 3d Halogen Heating Tube Emitter Lamp | Specification:: | Short Wave Infrared Lamp |
|---|---|---|---|
| Tube Material:: | High Quality Tube | Reflector:: | White |
| Lighting Solutions Service:: | Automotive Industry | Support Dimmer:: | No |
| Supply Ability: | 300 Piece/Pieces Per Week | Customized:: | Yes,according To Your Requirement |
| High Light: | Abnormal Shape Short Wave Infrared Heater,Short Wave Infrared Heater While Reflector,short wave ir heater 3d Halogen |
||

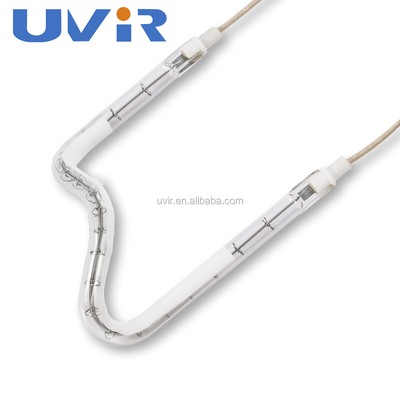

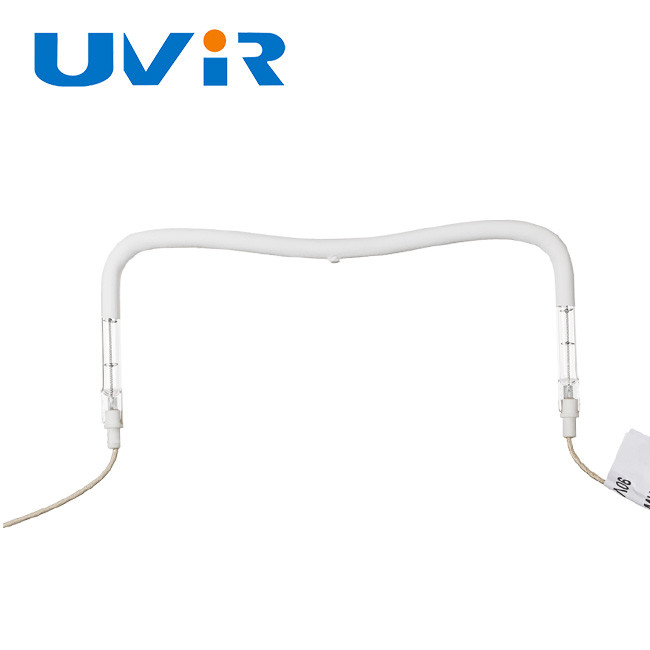

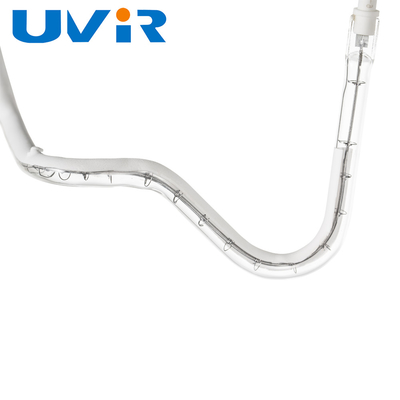

3D Customized Abnormal Shape Infrared Heating Element Short Wave Halogen Light
Our Advantages
1. Infrared heater which is best matched to the materials to be heated, can provide energy savings of up to 50% over other technologies.
2. Very Good And Stable Quality
3. 24Hrs Customer Support
4. CE,ISO9001,RoHS,SGS authentication.
5. Low MOQ,1pcs for sample checking is available.
6: For all industrial applications, the highest working temperature up to 1000 ℃
7:Special Gold reflector (90% reflective rate) and Nano-ceramic reflector (70% reflective rate) coated on lamp quartz surface to reflect and increase the infrared radiation on heated objects
8: Different objects different matched IR radiation wavelength Short wave (1.0~1.4μm), Fast response medium wave (1.4~2.0μm), Carbon medium wave (2.0~2.5μm), Medium wave (2.2~3.2μm).
9: Higher density power output The highest surface power output of short wave lamp is 200KW/M2, Fast response medium wave lamp is 130KW/M2, Carbon medium wave lamp is 100KW/M2, Medium wave lamp is 60KW/M2.
10: We guarantee 5000 hours average working life.
| UVIR No. | SHW300081 |
| Voltage (V) | 230V |
| Wattage (W) | 1500w |
| Material | Quartz Tube |
| Light source | Tungsten filament |
| Reflector | while |
You can choose other parameters:
| 115 | 410 | 10 | SHG300169 | SHW300001 | SHC300002 | 280770 | |
| 115 | 510 | 10 | SHG300049 | SHW300002 | SHC300003 | 284343 | |
| 115 | 520 | 10 | SHG300043 | SHW300003 | SHC300004 | 282094 | |
| 115 | 600 | 10 | SHG300050 | SHW300004 | SHC300005 | 282016 | |
| 115 | 710 | 10 | SHG300164 | SHW300005 | SHC300006 | 282014 | |
| 115 | 1100 | 10 | SHG300165 | SHW300006 | SHC300007 | 283932 | |
| 115 | 1100 | 11x23 | THG300039 | THW300001 | THC100001 | 282002 | |
| 115 | 1320 | 10 | SHG300037 | SHW300007 | SHC300008 | 280773 | |
| 120 | 1330 | 10 | SHG300166 | SHW300008 | SHC300009 | 284058 | |
| 120 | 1450 | 10 | SHG300170 | SHW300009 | SHC300010 | 305417 | |
| 120 | 1630 | 10 | SHG300035 | SHW300010 | SHC300011 | 305418 | |
| 230 | 2000 | 10 | SHG300167 | SHW300011 | SHC300012 | 314255 | |
| 230 | 2200 | 10 | SHG300045 | SHW300012 | SHC300013 | 282009 | |
| 230 | 2200 | 10 | SHG300046 | SHW300013 | SHC300014 | 282008 | |
| 230 | 2290 | 14 | SHG300171 | SHW300014 | SHC300015 | 297058 | |
| 230 | 2800 | 11x23 | THG300038 | THW300002 | THC300002 | 281997 | |
| 240 | 800 | 10 | SHG300052 | SHW300015 | SHC300016 | 283640 | |
| 240 | 810 | 10 | SHG300168 | SHW300016 | SHC300017 | 280728 | |
| 240 | 800 | 10 | SHG300042 | SHW300017 | SHC300018 | 292093 | |
| 240 | 880 | 10 | SHG300056 | SHW300018 | SHC300019 | 280727 |
If the parameter is not suitable for you,Please contact me.We have a professional elite team,will provide the professional knowledge and drawings for you!
SAFETY PRECAUTIONS
1. There is no flammable, explosive, corrosive gas and conductive dust in the surrounding environment.
2. The electric heating pipe should be well positioned and fixed. The electric heating pipe is generally equipped with corresponding metal pipe clamps and ceramic pipe clamps according to the porcelain seats at both ends.
3.Insulating material of infrared electric heating tube The quartz glass is a brittle material. When installing and using it, it should be safe and use it according to the specific conditions of the heated object.
Take necessary protective measures to avoid mechanical damage
After Sales Service
1. Package tracking
2. Technical support
3. 24 hours working time
4. Discount for reorder
5. Replacements for quality problems
6. Confidentiality of customer information
FAQ
Q1. Can all the products be customized?
A: We are the factory of making IR lamps,UV lamp,IR accessories.All the our products can be made by the details you provide.
Q2. What is the outer package of the product?
A: carton packing or wooden packing.
Q3. Processing cycle?
A: Some of products we have in stock.Usually need about 15days to maked.
Q4. Order quantity?
A: Customized IR Lamps Usually is 2 pieces.
