Your Infrared Radiator Customization Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | UVIR |
| Certification: | CE & ROHS |
| Model Number: | SHC300151 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Each lamp in a cylinder .Then in a professional plywood box |
| Delivery Time: | 5-8 Work day |
| Payment Terms: | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Name: | 3d Halogen Heating Tube Emitter Lamp | Specification: | Short Wave Infrared Lamp |
|---|---|---|---|
| Voltage: | 230V | Tube Color: | Gold Reflector |
| Color: | Transparent | Supply Ability: | 300 Piece/Pieces Per Week |
| Power: | 1050W | ||
| High Light: | 3D Shape Infrared Heating Element Tube,3D Shape Flexible Heating Element,Gold Paint Replacement Infrared Heating Element |
||

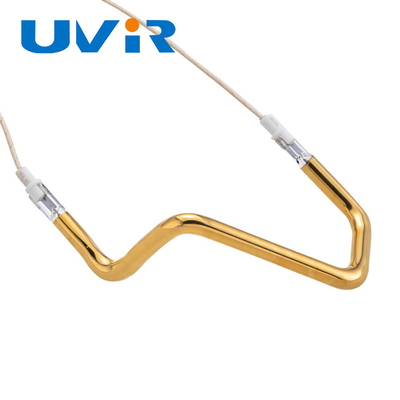

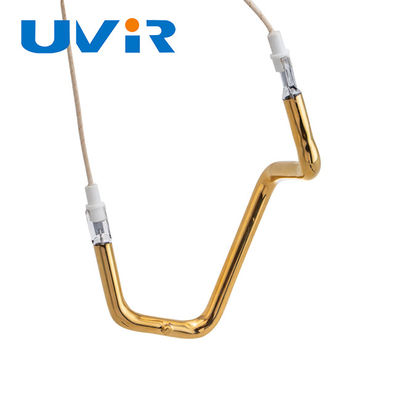

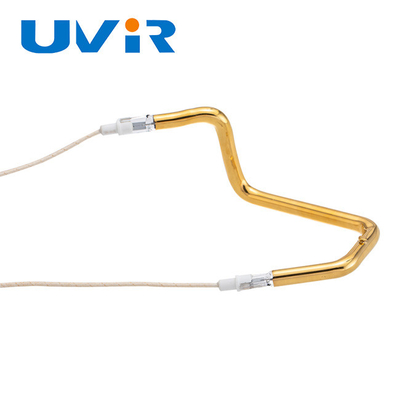

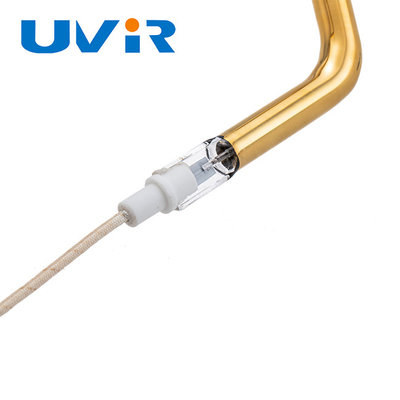

Customized Made 3D Shape Gold Paintcoat Flexible Heating Element
Guartz glass tube
1.High quality high-temperature quartz glass.
2.Long serving life: over 5000 hours.
3.nontoxic and peculiar smell, no risk of contamination over environment or target object to be heated.
We buy high quality quartz tube and cut according require by customers , some equipments are imported from Japan and Germany , we design our machine to coil the filament , we use white reflector material from GE and gold reflector material from Heraeus to make sure our high quality products .
| Product name | Infrared Lamp |
| Finished | Gold Reflector |
| Rated Voltage | 230V |
| Power | 1050W |
| Lifetime | 5000 hours |
| OEM/ODM | many types of voltage,wattage,length,base,cables,universal burning position is available |
You can choose other parameters:
| Voltage (V) |
Wattage (W) |
Quartz Tube (mm) |
Shape | Reflector | UVIR NO. | FRIMO NO. |
| 115 | 510 | 10 | U | Gold | SHG300049 | 284343 |
| 230 | 800 | 10 | U | Gold | SHG300052 | 293640 |
| 115 | 710 | 10 | U | Gold | SHG300054 | 282014 |
| 230 | 1100 | 10 | U | Gold | SHG300053 | 283932 |
| 230 | 1330 | 10 | U | Gold | SHG300166 | 294058 |
| 115 | 600 | 10 | L | Gold | SHG300050 | 282106 |
| 115 | 520 | 10 | 3D | Gold | SHG300043 | 282094 |
| 230 | 880 | 10 | 3D | Gold | SHG300042 | 282093 |
| 230 | 1100 | 11*23 | L | Gold | SHG300039 | 282002 |
| 230 | 2800 | 11*23 | L | Gold | SHG300038 | 281997 |
| 230 | 2200 | 10 | 3D | Gold | SHG300045 | 282009 |
| 230 | 2200 | 10 | 3D | Gold | SHG300046 | 282008 |
| 230 | 2000 | 10 | 3D | Gold | SHG3000167 | 314255 |
| 230 | 910 | 10 | 3D | Gold | SHG300056 | 280727 |
| 230 | 810 | 10 | 3D | Gold | SHG300168 | 200728 |
| 230 | 1320 | 10 | 3D | Gold | SHG300037 | 280773 |
| 115 | 410 | 10 | 3D | Gold | SHG300169 | 280770 |
| 230 | 1450 | 10 | 3D | Gold | SHG300170 | 305417 |
| 230 | 1630 | 10 | 3D | Gold | SHG300035 | 305418 |
| 230 | 2290 | 14 | 3D | Gold | SHG300171 | 297058 |
If the parameter is not suitable for you,Please contact me.We have a professional elite team,will provide the professional knowledge and drawings for you!
Infrared Heating Lamp-Radiation Wavelengths and Advantages
Infrared heating technology radiates and conveys large amounts of energy in a short time. By matching different optimum wavelength of infrared, our Quartz Infrared (IR) Lamps are available for all industrial and scientific heating applications. Different objects different matched IR radiation wavelength-Short wave (0.9~1.4μm), Fast response medium wave (1.4~2.0μm), Carbon medium wave (2.0~2.5μm), Medium wave (2.2~3.2μm).
1: E-DEN infrared heating lamps can be switched on and off frequently.
2: 1~2 seconds fast response time to full power IR heating energy.
3: Output power can be adjusted simply by voltage regulator (0V~lamp rated voltage).
4: Accurate(±1 ℃)IR heating temperature control with SCR regulators or solid state relays.
5: Small installation space, flexible horizontal or vertical burning position by our infrared lamps.
6: Our infrared heating lamps are for all industrial heating applications, the highest working temperature up to 1000 ℃.
7: Special Gold reflector (90% reflective rate) and Ceramic white reflector (70% reflective rate) coated on IR lamp quartz tube surface to reflect infrared radiation energy back on heated objects.
8: Different objects different matched IR radiation wavelength-IR lamp Short wave (0.9~1.4μm), Fast response medium wave (1.4~2.0μm), Carbon medium wave (2.0~2.5μm), Medium wave
If the parameter is not suitable for you,Please contact me.We have a professional elite team,will provide the professional knowledge and drawings for you!
