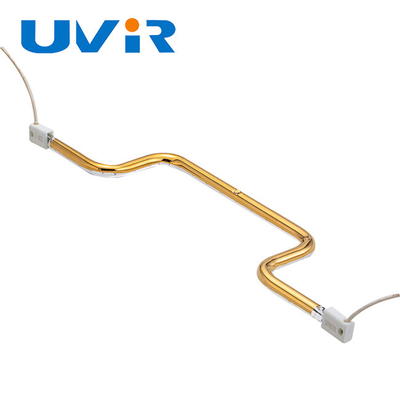

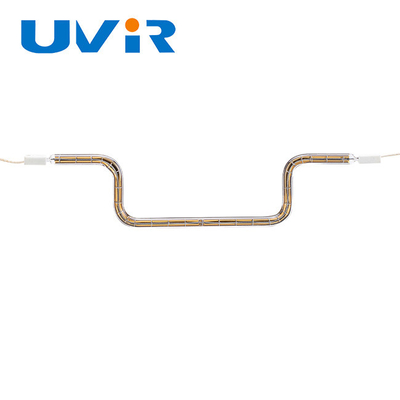

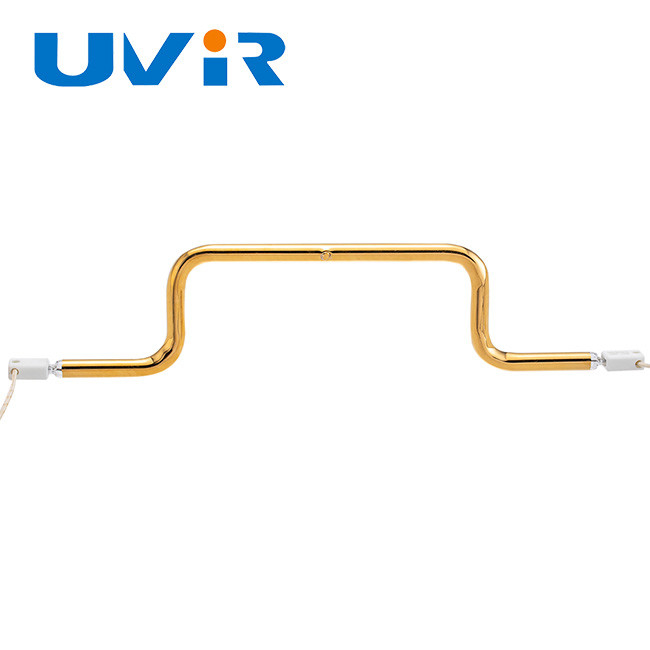

220V 370W Infrared Heating Lamp with Tungsten Filament

220V 370W Infrared Heating Lamp with Tungsten Filament

Brand Name:	UVIR
Model Number:	SHG301016
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,MoneyGram,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Product Name:

Infrared Heating Lamp

Light Source:

Tungsten Filament

Hight Efficiency:

More Than 85% Heat Efficiency Of Full Power

Lifespan (hours):

5000-20000h

Color:

Clear,White,gold,ruby

Quartz Tube Format:

8*18 11*23 15*33mm

Power:

370W

Voltage:

220V

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

370W Infrared Heating Element Tube

220V Infrared Heating Element Tube

Halogen Lamp Sauna Heater Parts

Product Description

220V 370W Infrared Heating Element Tube, Halogen Lamp Sauna Heater Parts

Product Specifications

Attribute	Value
Product name	Infrared Heating Lamp
Light source	Tungsten filament
High efficiency	More than 85% heat efficiency of full power
Lifespan	5000-20000 hours
Color	Clear, White, Gold, Ruby
Quartz tube format	818 1123 15*33mm
Power	370W
Voltage	220V

Product Description

220V 370W Electric Infrared Sauna Heater Parts Tungsten Halogen Lamp

Infrared Heat Lamp Advantages

Long serving life: Over 5000 hours
Fast Reaction Time: About 1-2 seconds to achieve full power output
Energy Saving: Gold and Ceramic coating maximize reflect Infrared radiation up to 90%
Environmentally Friendly: Nontoxic, odorless, and no risk of contamination

Key Features

Manufactured from imported high-end quartz tube
High efficiency with more than 85% heat efficiency at full power
Effective reflective layer (gold or non-organic) for concentrated radiation energy
No surface corrosion or dropping off concerns
Quick controllable heat with adjustable heating time
Clean and odorless operation
Customizable wavelength, dimensions, and filaments
Energy efficient with less consumption and smaller footprint

Technical Details

Product name	Infrared Lamp
UVIR No.	SHG301016
Power	370W
Voltage	220V
Material	Quartz Tube
OEM/ODM	Custom voltage, wattage, length, base, and cables available

Applications

Plastics Processing: IR drying, stretching, shrinking, and packaging
Photovoltaic Industry: String soldering and sputtering preheating
Printing Industry: Ink curing and drying processes
Food & Chemical Industry: Disinfection, food heating, and snow removal
Glass Industry: Preheating, coating drying, and glass cutting
Textiles Industry: Fabric coating drying and laminating
Electronic Industry: Component coating and aging processes

For custom specifications not listed, please contact us. Our professional team can provide technical knowledge and drawings to meet your requirements.
