Your Infrared Radiator Customization Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | UVIR |
| Certification: | CE & ROHS |
| Model Number: | SHG300057 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Each lamp in a cylinder .Then in a professional plywood box |
| Delivery Time: | 5-8 Work day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Hight Efficiency: | More Than 85% Heat Efficiency Of Full Power | Power: | 910W |
|---|---|---|---|
| Material: | Tungsten (filament) Quartz (Tube), Quartz Tube | Light Source: | Tungsten Filament |
| Voltage: | 230V | Lifespan (hours): | 5000-20000h |
| Coating: | Gold | ||
| High Light: | UVIR Infrared Heating Element Tube,U Shape Heater Tungsten Filament,500w U Shape Heater |
||

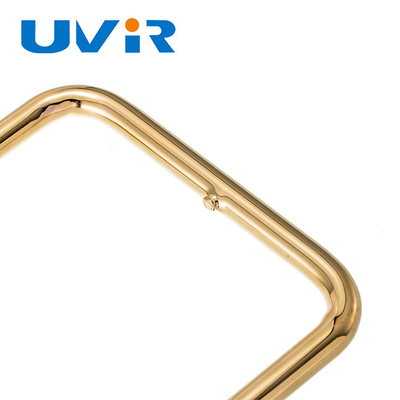

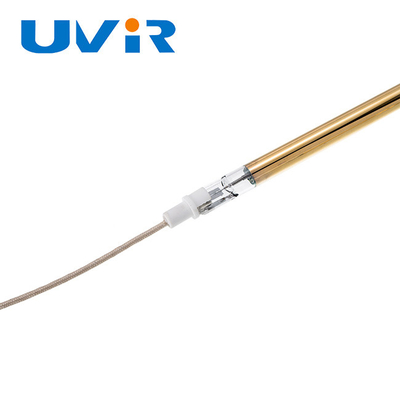

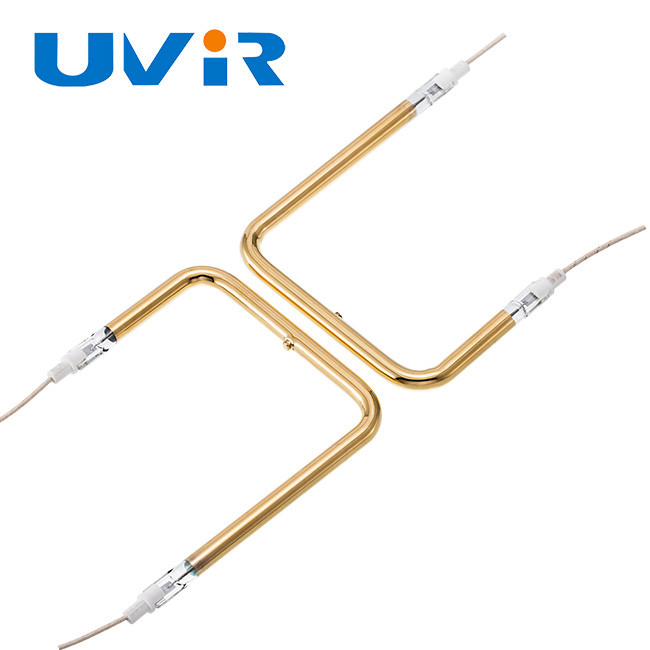

UVIR OEM 500w U Shape IR Heater Lamp Quartz Infrared Heating Element
3D Contoured Infrared Lamp Advantage:
Lamp materials: manufactured from foreign imported high-end quartz tube.
Longer serving life:the mid-temp and low-temp ones 5000 hours.
Hight efficiency:more than 85% heat efficiency of full power.
More effective reflective layer saves energy:gold or non-organic reflective layer have higher heating efficiency to concentrate the radiation energy to the heating object .
Clear heating means:Don't worry about surface corrosion and dropping off.
Quick controllable heat:the heating time is controllable as it is needed.
Clean and adorless:no risk of contamination over environment or target object to be heated.
Tailor made:wavelength,dimensions,filaments and others can be adjusted to ment your requirement.
Energy Saving:less energy consumption,smaller footprint and better heating results.
Product parameters:
|
UVIR No. |
SHG300057 |
| Type |
U |
|
Voltage (V) |
230 |
|
Wattage (W) |
910 |
|
Quartz Tube (mm) |
10 |
| Shape | 3D |
| Reflector | Gold |
| 115 | 410 | 10 | SHG300169 | SHW300001 | SHC300002 | 280770 | |
| 115 | 510 | 10 | SHG300049 | SHW300002 | SHC300003 | 284343 | |
| 115 | 520 | 10 | SHG300043 | SHW300003 | SHC300004 | 282094 | |
| 115 | 600 | 10 | SHG300050 | SHW300004 | SHC300005 | 282016 | |
| 115 | 710 | 10 | SHG300164 | SHW300005 | SHC300006 | 282014 | |
| 115 | 1100 | 10 | SHG300165 | SHW300006 | SHC300007 | 283932 | |
| 115 | 1100 | 11x23 | THG300039 | THW300001 | THC100001 | 282002 | |
| 115 | 1320 | 10 | SHG300037 | SHW300007 | SHC300008 | 280773 | |
| 120 | 1330 | 10 | SHG300166 | SHW300008 | SHC300009 | 284058 | |
| 120 | 1450 | 10 | SHG300170 | SHW300009 | SHC300010 | 305417 | |
| 120 | 1630 | 10 | SHG300035 | SHW300010 | SHC300011 | 305418 | |
| 230 | 2000 | 10 | SHG300167 | SHW300011 | SHC300012 | 314255 | |
| 230 | 2200 | 10 | SHG300045 | SHW300012 | SHC300013 | 282009 | |
| 230 | 2200 | 10 | SHG300046 | SHW300013 | SHC300014 | 282008 | |
| 230 | 2290 | 14 | SHG300171 | SHW300014 | SHC300015 | 297058 | |
| 230 | 2800 | 11x23 | THG300038 | THW300002 | THC300002 | 281997 | |
| 240 | 800 | 10 | SHG300052 | SHW300015 | SHC300016 | 283640 | |
| 240 | 810 | 10 | SHG300168 | SHW300016 | SHC300017 | 280728 | |
| 240 | 800 | 10 | SHG300042 | SHW300017 | SHC300018 | 292093 | |
| 240 | 880 | 10 | SHG300056 | SHW300018 | SHC300019 | 280727 |
If the parameter is not suitable for you,Please contact me.We have a professional elite team,will provide the professional knowledge and drawings for you!
Application
- Heater
- Plastic forming
- Bottle blowing
- Paint drying
- Food catering/processing and etc.
- Pre-heating of PET perform
- Fusing printing ink
- Drying process in paper mill
- Plastics thermoforming
- Silicon wafer manufacturing process in Semiconductor
- And various kind of drying processes
OEM Service
Our company produces and wholesales: ultraviolet lamps, infrared lamps, ultraviolet germicidal lamps, xenon lamps and other special light sources and peripheral accessories products, lamp stands, transformers, etc. Various products can be customized according to customer requirements.
We can advise the customer choosing the right heat lamp for the specific application. Furthermore, the Technical Department can design the right lamp based on the customer’s specific technical instructions.
We can product many sizes and types heat lamp according to customers requirement, and so on.If have drawing is beat, then we can do samples for you.
FQA
1.Are you a factory or trading company?
We are a professional factory.
2.Where is your factory located?How can I visit there?
Our factory is located in JiangMen City,Guangdong Province,China,You can fly to GuangZhou BAIYUN airport directly,Warmly welcome all the clients at home and broad to visit us!
3. Can I get some samples?
We are happy to offer samples for you to check and test.
4.Do you have any MOQ limit?
Low MOQ,2pcs for sample checking is available.
5.What about the lead time?
15days after receive your payment.
6.How does your factory do regarding quality control?
"Quality is priority."UVIR people always attaches more importance to QC from the very begining to the very end.Our factory has gained CE,ISO9001,RoHS,SGS authentication.
7.About customized service?
We can provide right heat solution for you and offer OEM services, we can print your logo on your product as your requirements.
8.About after-sale service?
Any quality issue, once confirmed, we will compensate our customer.
