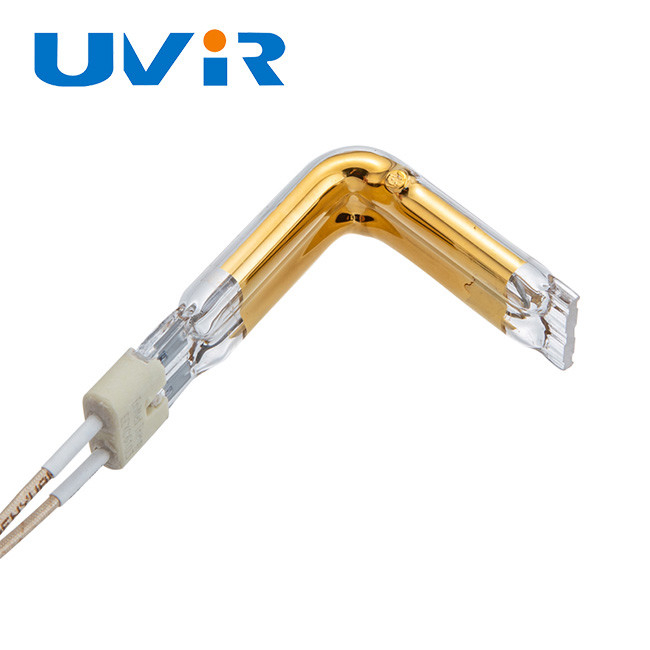

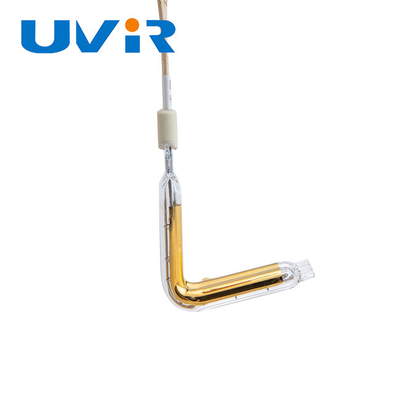

11x23mm Infrared Heating Element Tube 5000 Hours Serving Life

11x23mm Infrared Heating Element Tube 5000 Hours Serving Life

Brand Name: UVIR
Model Number: THG300038
MOQ: Negotiable
Price: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Place of Origin:
China
Certification:
CE & ROHS
Lighting Solutions Service::
Lighting And Circuitry Design
Specification::
OEM
Lamp Luminous Efficiency(lm/w)::
Other
Quartz Tube::
10mm
Reflector::
Gold
Voltage::
240V
Power::
2800W
Packaging Details:
Each lamp in a cylinder .Then in a professional plywood box
Highlight:

11x23mm Infrared Heating Element Tube

,

Infrared Heating Element Tube 5000 Hours

,

infrared heating tubes 5000 Hours

Product Description

Manufacturer OEM Custom Fast Heating 3D Contoured Quartz Tube Infrared Heat Lamp





Benefits of Infrared Heat


1.Clear heating:Don't worry about surface corrosion and dropping off.

2.Quick controllable heat:the heating time is controllable as it is needed.

3.Clean and adorless:no risk of contamination over environment or target object to be heated.





Features


- Lamp materials: manufactured from foreign imported high-end quartz tube.
- Longer serving life:the mid-temp and low-temp ones 5000 hours.
- Hight efficiency:more than 85% heat efficiency of full power.
- More effective reflective layer saves energy:gold or non-organic reflective layer have higher heating efficiency to concentrate
   the radiation energy to the heating object .
- Clear heating means:Don't worry about surface corrosion and dropping off.
- Quick controllable heat:the heating time is controllable as it is needed.
- Clean and adorless:no risk of contamination over environment or target object to be heated.
- Tailor made:wavelength,dimensions,filaments and others can be adjusted to ment your requirement.
- Energy Saving:less energy consumption,smaller footprint and better heating results.





Item: 3D Contour IR Lamps pictorial
Quartz tube: 11x23  (mm)
Reflector: Gold Reflector
Reponse time: 1-2s
Voltage: 240V
OEM: many types of voltage,wattage,length,base,cables,universal burning position is available



11x23mm Infrared Heating Element Tube 5000 Hours Serving Life 0



11x23mm Infrared Heating Element Tube 5000 Hours Serving Life 1



Custom Shape gold Industrial Element Mini Infrared Heating Lamp 2

115 410 10   SHG300169 SHW300001 SHC300002 280770
115 510 10   SHG300049 SHW300002 SHC300003 284343
115 520 10   SHG300043 SHW300003 SHC300004 282094
115 600 10   SHG300050 SHW300004 SHC300005 282016
115 710 10   SHG300164 SHW300005 SHC300006 282014
115 1100 10   SHG300165 SHW300006 SHC300007 283932
115 1100   11x23 THG300039 THW300001 THC100001 282002
115 1320 10   SHG300037 SHW300007 SHC300008 280773
120 1330 10   SHG300166 SHW300008 SHC300009 284058
120 1450 10   SHG300170 SHW300009 SHC300010 305417
120 1630 10   SHG300035 SHW300010 SHC300011 305418
230 2000 10   SHG300167 SHW300011 SHC300012 314255
230 2200 10   SHG300045 SHW300012 SHC300013 282009
230 2200 10   SHG300046 SHW300013 SHC300014 282008
230 2290 14   SHG300171 SHW300014 SHC300015 297058
230 2800   11x23 THG300038 THW300002 THC300002 281997
240 800 10   SHG300052 SHW300015 SHC300016 283640
240 810 10   SHG300168 SHW300016 SHC300017 280728
240 800 10   SHG300042 SHW300017 SHC300018 292093
240 880 10   SHG300056 SHW300018 SHC300019 280727



If the parameter is not suitable for you,Please contact me.We have a professional elite team,will provide the professional knowledge and drawings for you!







OEM Service


We can advise the customer choosing the right heat lamp for the specific application. Furthermore, the Technical Department can design the right lamp based on the customer’s specific technical instructions.



We can product many sizes and types heat lamp according to customers requirement, and so on.If have drawing is beat, then we can do samples for you.



11x23mm Infrared Heating Element Tube 5000 Hours Serving Life 3



FQA


1. What is the payment term?

prepayment 100% advance via wire transfer, Paypal, Western Union



2. Could you provide sample for performance testing and appearance checking?

Yes, we can provide the sample based on your required specs.



3. What information should i provide when enquire?

Lamp’s type, Total length,Heating length ,Wattage,Voltage,Ceramic end connection ,Lead length in mm (Standard lead wire length 300 mm),Coating available - Gold coating / Ceramic coating, quantity, it couldn’t be better if there is drawing or picture can be provided.



4.Payment

We accept T/T, Escrow, and western Union



5.Shipping

Usually your parcels are shipped within 3 days.

We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays.
Delivery Time: Free shipping send by China post, most country can arrive on 15~35 days. Russia and Brazil is slowly, may need 20~90 days. If your don’t receive within 45 days, please write to me, I will check for you.
