Your Infrared Radiator Customization Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | UVIR |
| Certification: | CE & ROHS |
| Model Number: | THW100039 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Each lamp in a cylinder .Then in a professional plywood box |
| Delivery Time: | 15-20Work day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Material: | Glass Tube | Coating: | White |
|---|---|---|---|
| Working Lifetime(Hour): | ≥5000 Hours | Voltage: | 230V |
| Power: | 3000W | Total Length: | 650mm |
| Heating Length: | 500mm | Type: | B |
| Place Of Origin: | Guangdong, China | ||
| High Light: | Quartz Twin Tube Infrared Lamps,White Twin Tube Infrared Lamps |
||

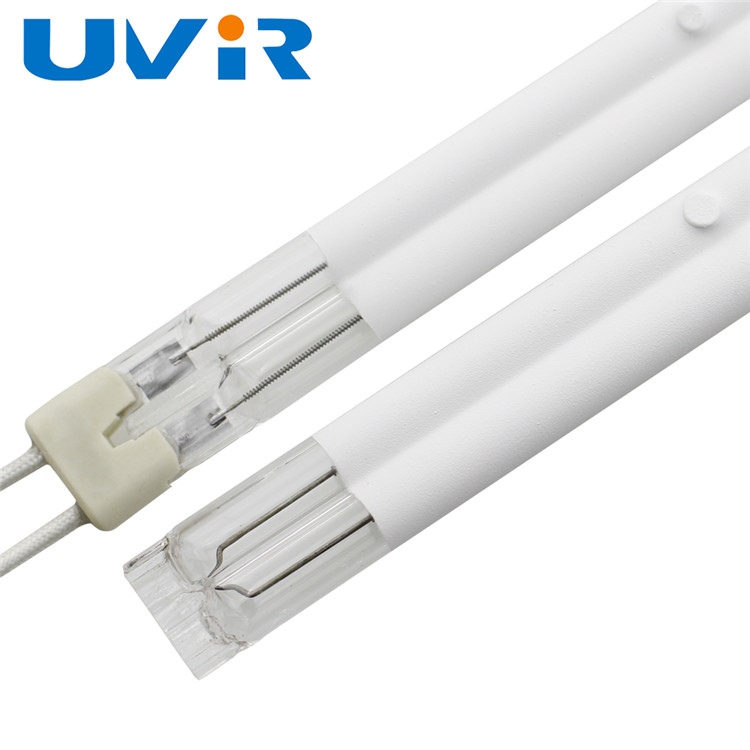

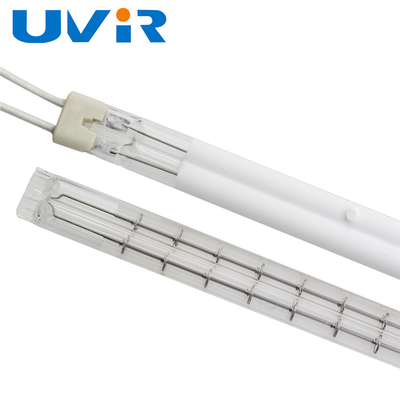

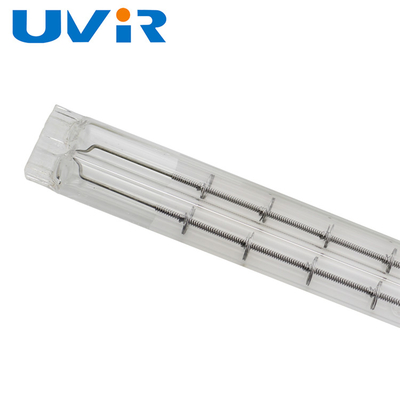

White Quartz Twin Tube Infrared Lamps With 500mm Heat Efficiency
Twin Tube Infrared Lamp Advantage
Lamp materials: manufactured from foreign imported high-end quartz tube.
Longer serving life:the mid-temp and low-temp ones 5000 hours.
Hight efficiency:more than 85% heat efficiency of full power.
More effective reflective layer saves energy:gold or non-organic reflective layer have higher heating efficiency to concentrate the radiation energy to the heating object .
Clear heating means:Don't worry about surface corrosion and dropping off.
Quick controllable heat:the heating time is controllable as it is needed.
Clean and adorless:no risk of contamination over environment or target object to be heated.
Tailor made:wavelength,dimensions,filaments and others can be adjusted to ment your requirement.
Energy Saving:less energy consumption,smaller footprint and better heating results.
Product information:
| Type | Twin Tube Short Wave Halogen Infrared Heating Lamp |
| Size | 11X23mm |
| Coating | White/Gold/Clear |
| Power | 3000W |
| Voltage | 230V |
| OEM/ODM | many types of voltage,wattage,length,base,cables,universal burning position is available |
Product details
Stock and Standard (Non-Stock) Twin Tu be Short-Wave Lamps
| Voltage V |
Wattage W |
Twin Tube |
Total Length |
Heated Length |
Disgn Type |
Gold | White | Clear |
| 55 | 400 | 11x23 | 115 | 50 | B | THG100151 | THW100025 | THC100026 |
| 115 | 400 | 11x23 | 115 | 50 | B | THG100152 | THW100026 | THC100027 |
| 115 | 450 | 11x23 | 70 | 25 | B | THG100153 | THW100027 | THC100028 |
| 115 | 450 | 11x23 | 72 | 25 | B | THG100154 | THW100028 | THC100029 |
| 115 | 600 | 11x23 | 145 | 80 | B | THG100155 | THW100029 | THC100030 |
| 115 | 900 | 11x23 | 170 | 115 | B | THG100156 | THW100030 | THC100031 |
| 115 | 1000 | 11x23 | 192 | 127 | B | THG100157 | THW100031 | THC100032 |
| 115 | 1100 | 11x23 | 205 | 140 | B | THG100158 | THW100032 | THC100033 |
| 120 | 700 | 11x23 | 140 | 89 | B | THG100159 | THW100033 | THC100034 |
| 120 | 800 | 11x23 | 167 | 102 | B | THG100160 | THW100034 | THC100035 |
| 120 | 1180 | 11x23 | 250 | 150 | B | THG100161 | THW100035 | THC100036 |
| 230 | 1200 | 11x23 | 405 | 340 | B | THG100162 | THW100036 | THC100037 |
| 230 | 1500 | 11x23 | 300 | 200 | B | THG100163 | THW100037 | THC100038 |
| 230 | 2350 | 11x23 | 410 | 355 | B | THG100164 | THW100038 | THC100039 |
| 230 | 3000 | 11x23 | 650 | 500 | C | THG100165 | THW100039 | THC100040 |
| 230 | 500 | 15x33 | 510 | 500 | B | THG100114 | THW100061 | THC100061 |
| 400 | 4800 | 15x33 | 500 | 800 | B | THG100141 | THW100062 | THC100062 |
| 400 | 6200 | 15x33 | 1100 | 1030 | B | THG100002 | THW100063 | THC100063 |
| 400 | 15720 | 15x33 | 850 | 1334 | H | THG100186 | THW100064 | THC100064 |
| 480 | 6000 | 15x33 | 1550 | 1000 | B | THG100140 | THW100065 | THC100065 |
If the parameter is not suitable for you,Please contact me.We have a professional elite team,will provide the professional knowledge and drawings for you!
Product Coding Rule Table
Infrared applications
After Sales Service
1. Package tracking
2. Technical support
3. 24 hours working time
4. Discount for reorder
5. Replacements for quality problems
6. Confidentiality of customer information
FAQ
1.Are you a manufacturer or trading company?
We are a professional manufacturer.
2.If I want to buy a lamp, what parameters need to provide?
Input Voltage,Lamp Wattage,Total Length,Heated Length,Tube Diameter,Reflector,Lead wire
3. how to place the order?
Let us know your required lamp specifications including lamp type,diameter, length, power, voltage,reflector...then we send you the
quotation,after payment,production will be started, after finished, they will be shipped to your side.
4. What is the payment term?
prepayment 100% advance via wire transfer, Paypal, Western Union
5. Shipping
Usually your parcels are shipped within 15 days.
