Your Infrared Radiator Customization Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | UVIR |
| Certification: | CE & ROHS |
| Model Number: | RHW800024 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Each lamp in a cylinder .Then in a professional plywood box |
| Delivery Time: | 5-8 Work day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Lifespan (hours):: | 5000-20000h | Specification:: | 8mm |
|---|---|---|---|
| Outside Diameter:: | 76mm | Power:: | 500W |
| Color:: | White Reflector | Customized:: | Yes |
| Highlight: | 500W Ring Infrared Lamps,White Reflector Ring Infrared Lamps,White Reflector Quartz Halogen Infrared Heater |
||

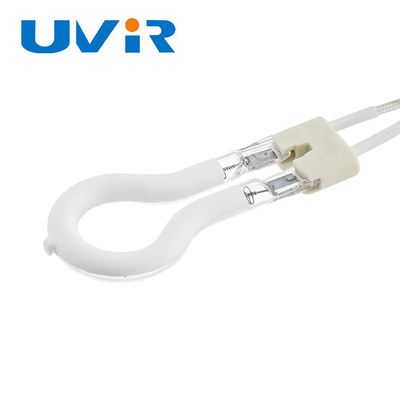

500W Ring Infrared Lamps White Reflector Quartz Halogen Infrared Heater for industrial production
Infrared lamp Features
1.High efficiency.
2.Economical to run.
3Have a fast response switching on and off time.
4.Effectively transmit and focus heat on materials.
OEM Service
We can advise the customer choosing the right heat lamp for the specific application. Furthermore, the Technical Department can design the right lamp based on the customer’s specific technical instructions.
We can product many sizes and types heat lamp according to customers requirement, and so on.If have drawing is beat, then we can do samples for you.
Product information
| Pipe diameter | 8mm-14mm |
| Diameter | 39mm-606mm |
| Voltage | 24V-575V |
| Power | 100W-7600W |
| Wavelength | Short wave, medium wave, long wave |
| Coating | Gold/White/Clear |
| Shape | Ring, oval, omega, etc., can be customized according to customer requirements |
QUICK CONNECT RING 39 mm
Stock and Standard (Non-Stock) Ring Short-Wave 0 =39 mm Quick Connect Lamps
| 1 | 115 | 200 | 8 | RHC800300 | RHG800300 | RHG800306 | RHG800312 |
| 2 | 115 | 200 | 10 | RHC800301 | RHG800301 | RHG800307 | RHG800313 |
| 3 | 115 | 450 | 8 | RHC800302 | RHG800302 | RHG800308 | RHG800314 |
| 4 | 220 | 200 | 8 | RHC800303 | RHG800303 | RHG800309 | RHG800315 |
| 5 | 220 | 300 | 8 | RHC800304 | RHG800304 | RHG800310 | RHG800316 |
| 6 | 220 | 450 | 8 | RHC800305 | RHG800305 | RHG800311 | RHG800317 |
Product details:
Product Coding Rule Table:
SAFETY PRECAUTIONS
1. There is no flammable, explosive, corrosive gas and conductive dust in the surrounding environment.
2. The electric heating pipe should be well positioned and fixed. The electric heating pipe is generally equipped with corresponding metal pipe clamps and ceramic pipe clamps according to the porcelain seats at both ends.
3.Insulating material of infrared electric heating tube The quartz glass is a brittle material. When installing and using it, it should be safe and use it according to the specific conditions of the heated object.
Take necessary protective measures to avoid mechanical damage
FAQ
1. How I make the order from your company?
Usually we will quote you the best price within 24 hours after your inquiry.
As for samples, it will take 5-7 days.
If it's special customized heating lamp, the time needed for samples could be longer.
2. Order quantity?
A: lamp tube and minimum order quantity is 3-5 above. The MOQ of the equipment is 1 set. Please refer to the instructions after contacting the customer service.
3. Can you do the design for us?
Yes. We have a professional team having rich experience in box design and manufacturing. Just tell us your idea and we will help to carry out your ideas into perfect packing boxes. It does not matter if you do not have someone to complete files. Send us high resolution images, your logo and text and tell us how you would like to arrange them. We will send you finished files for confirmation.
