Your Infrared Radiator Customization Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | UVIR |
| Certification: | CE & ROHS |
| Model Number: | SHW300081 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Each lamp in a cylinder .Then in a professional plywood box |
| Delivery Time: | 15-20 Work day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Input Voltage(V): | 230V | Lighting Solutions Service: | Lighting And Circuitry Design |
|---|---|---|---|
| Item: | Ring Tube IR Lamp | Tube Diameter: | 8mm |
| Reflector: | White | Cable Wire: | Teflen / Textile Wire / High Temperature Resistant Wire |
| Power: | 1500W | Line Length: | 1000mm |
| Silk Length: | 475mm | ||
| Highlight: | 600mm Ring Infrared Lamps,Clear Reflector Ring Infrared Lamps |
||

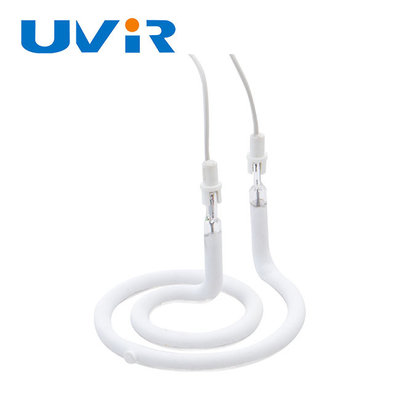

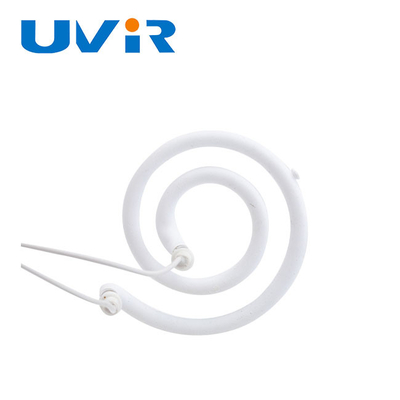

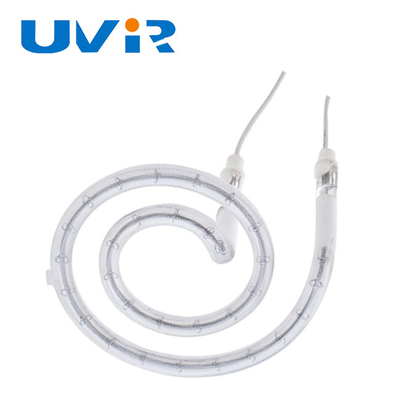

Replace Convection Oven Parts Ring Tube Infrared Heating Lamp For Flavor Wave Turbo Oven Parts
Features
- Lamp materials: manufactured from foreign imported high-end quartz tube.
- Longer serving life:the mid-temp and low-temp ones 5000 hours.
- Hight efficiency:more than 85% heat efficiency of full power.
- More effective reflective layer saves energy:gold or non-organic reflective layer have higher heating efficiency to concentrate the radiation energy to the heating object .
- Clear heating means:Don't worry about surface corrosion and dropping off.
- Quick controllable heat:the heating time is controllable as it is needed.
- Clean and adorless:no risk of contamination over environment or target object to be heated.
- Tailor made:wavelength,dimensions,filaments and others can be adjusted to ment your requirement.
- Energy Saving:less energy consumption,smaller footprint and better heating results.
Product parameters
| Product name | Ring tube infrared lamp |
| Power | 1500W |
| Voltage | 230V |
| Tube Diameter | 8mm |
| Over Diameter | 102mm |
| High | 64mm |
Stock and Standard (Non-Stock) Short-Wave Ring Lamps
| 115 | 250 | 8 | 39 | 0 | RHC800023 | RHG800063 | RHG800064 | RHG800065 |
| 120 | 650 | 10 | 32 | 90 | RHC800028 | RHG800078 | RHG800043 | RHG800093 |
| 230 | 1500 | 8 | 80 | 0 | RHC800024 | RHG800066 | RHG800067 | RHG800068 |
| 230 | 1850 | 8 | 102 | 90 | RHC800025 | RHG800025 | RHG800025 | RHG800025 |
| 230 | 2000 | 8 | 154 | 90 | RHC800026 | RHG800072 | RHG800073 | RHG800074 |
| 230 | 2200 | 8 | 180 | 90 | RHC800027 | RHG800075 | RHG800076 | RHG800077 |
| 240 | 1000 | 10 | 65 | 90 | RHC800029 | RHG800079 | RHG800048 | RHG800094 |
| 240 | 1600 | 10 | 97 | 90 | RHC800030 | RHG800080 | RHG800049 | RHG800095 |
| 240 | 1750 | 10 | 129 | 90 | RHC800031 | RHG800081 | RHG800050 | RHG800096 |
| 480 | 2100 | 10 | 161 | 90 | RHC800032 | RHG800082 | RHG800051 | RHG800097 |
| 480 | 2500 | 10 | 193 | 90 | RHC800033 | RHG800083 | RHG800052 | RHG800098 |
| 480 | 2850 | 10 | 223 | 90 | RHC800034 | RHG800084 | RHG800053 | RHG800099 |
| 480 | 3180 | 10 | 252 | 90 | RHC800035 | RHG800085 | RHG800054 | RHG800100 |
| 480 | 3520 | 10 | 282 | 90 | RHC800036 | RHG800086 | RHG800055 | RHG800101 |
| 480 | 3800 | 10 | 312 | 90 | RHC800037 | RHG800087 | RHG800056 | RHG800102 |
| 480 | 4200 | 10 | 341 | 90 | RHC800038 | RHG800088 | RHG800057 | RHG800103 |
| 480 | 4600 | 14 | 371 | 90 | RHC800039 | RHG800089 | RHG800058 | RHG800104 |
| 480 | 5000 | 14 | 404 | 90 | RHC800040 | RHG800090 | RHG800059 | RHG800105 |
| 480 | 5700 | 14 | 478 | 90 | RHC800041 | RHG800091 | RHG800060 | RHG800106 |
| 480 | 6000 | 14 | 511 | 90 | RHC800042 | RHG800092 | RHG800061 | RHG800107 |
If the parameter is not suitable for you,Please contact me.We have a professional elite team,will provide the professional knowledge and drawings for you!
Product Coding Rule Table:
| Industrial Applications | |||
| Support | Application | Support | Application |
| Plastics | • Bottle blowing | Wood & Composites | • Drying |
| • Thermoforming | • Curing | ||
| • Plastic forming | • Powder coating | ||
| • Welding | Shoes & Fabrics | • Drying | |
| • Serigraphy | • Curing | ||
| • Strapping | Metal | • Strapping | |
| Paper | • Drying | • Coil coating | |
| • Copying | • Powder coating | ||
| • Offset printing | Paint | • Automobile repair shops | |
| • Ink jet | • Powder coating | ||
| • Serigraphy | Animal care | • Breeding and rearing of animals | |
| Food | • Food catering | • Veterinary clinics, zoos,pet shops and beauty parlors | |
| • Food processing | |||
FQA
1. how to place the order?
Let us know your required lamp specifications including lamp type,diameter, length, power, voltage,reflector...then we send you the
quotation,after payment,production will be started, after finished, they will be shipped to your side.
2. What information should i provide when enquire?
Lamp’s type, Total length,Heating length ,Wattage,Voltage,Ceramic end connection ,Lead length in mm (Standard lead wire length 300 mm),Coating available - Gold coating / Ceramic coating, quantity, it couldn’t be better if there is drawing or picture can be provided.
3. Where is your factory? Can I visit your factory?
Our factory is in Lianyungang City, Jiangsu Province. It's 1 hour by plane from Shanghai,
Welcome every customer to visit our factory, we will be happy to show you our production, QC, warehouse, etc.
