Your Infrared Radiator Customization Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | UVIR |
| Certification: | CE & ROHS |
| Model Number: | RHW800031 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Each lamp in a cylinder .Then in a professional plywood box |
| Delivery Time: | 5-8 Work day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Ring Diameter: | 102mm | Reflector: | White |
|---|---|---|---|
| Material: | Quartz Tube | Input Voltage(V): | 230V |
| Place Of Origin: | Guangdong, China | Power: | 1500W |
| High: | 64mm | Over Diameter: | 102mm |
| Line Length: | 1000mm | ||
| Highlight: | UVIR Ring Infrared Lamps,Quartz Tube Halogen Ir Lamp,Ring Infrared Lamps 230V |
||

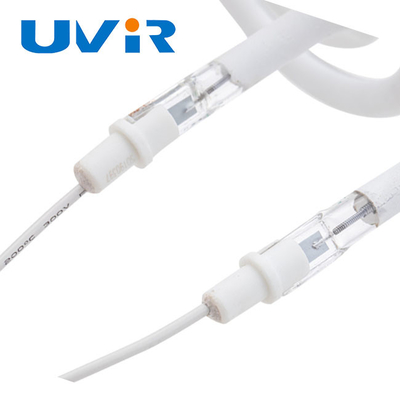

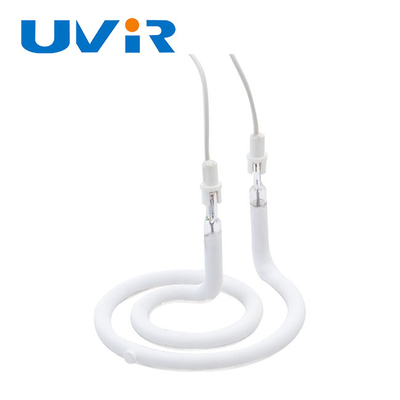

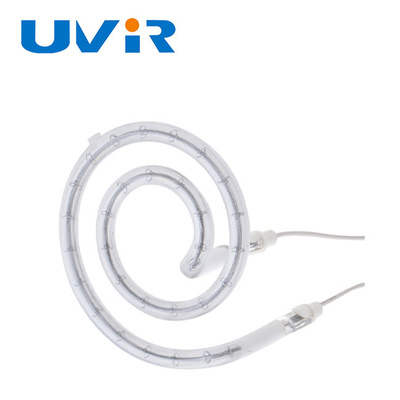

UVIR Ring Infrared Lamps , White coating Quartz Tube Halogen Ir Lamp 230V 1500W
Main Design Characteristics
●Ring diameter from 39 up to 600 mm
Voltage from 24 to 575 V
●Short, Medium and Long-Wave IR designs
●Availability in various tube colors
●The tube diameter can be from 8 - 14 mm.
Its selection depends on the heater's diameter
and the voltage/wattage relationship
●Standard stock items for immediate delivery
●Custom and OEM designs are available
Product information:
| Product Name | Halogen Ring Infrared Ir Heating Lamp |
| Voltage | 230V |
| Diameter | 102mm |
| Power | 1500W |
| Pipe diameter | 8-14mm |
| Brand | UVIR |
| Coating | White |
Passing a rotating object through a ring, elliptical or omega-shaped radiator can achieve a single radiator to heat the entire body of the rotating object. These specially shaped radiators are particularly suitable for use in automatic industrial production equipment, such as welding, bending and heating plastic parts accessories in plastic heating equipment.
Stock and Standard (Non-Stock) Short-Wave Ring Lamps
| 115 | 250 | 8 | 39 | 0 | RHC800023 | RHG800063 | RHG800064 | RHG800065 |
| 120 | 650 | 10 | 32 | 90 | RHC800028 | RHG800078 | RHG800043 | RHG800093 |
| 230 | 1500 | 8 | 80 | 0 | RHC800024 | RHG800066 | RHG800067 | RHG800068 |
| 230 | 1850 | 8 | 102 | 90 | RHC800025 | RHG800025 | RHG800025 | RHG800025 |
| 230 | 2000 | 8 | 154 | 90 | RHC800026 | RHG800072 | RHG800073 | RHG800074 |
| 230 | 2200 | 8 | 180 | 90 | RHC800027 | RHG800075 | RHG800076 | RHG800077 |
| 240 | 1000 | 10 | 65 | 90 | RHC800029 | RHG800079 | RHG800048 | RHG800094 |
| 240 | 1600 | 10 | 97 | 90 | RHC800030 | RHG800080 | RHG800049 | RHG800095 |
| 240 | 1750 | 10 | 129 | 90 | RHC800031 | RHG800081 | RHG800050 | RHG800096 |
| 480 | 2100 | 10 | 161 | 90 | RHC800032 | RHG800082 | RHG800051 | RHG800097 |
| 480 | 2500 | 10 | 193 | 90 | RHC800033 | RHG800083 | RHG800052 | RHG800098 |
| 480 | 2850 | 10 | 223 | 90 | RHC800034 | RHG800084 | RHG800053 | RHG800099 |
| 480 | 3180 | 10 | 252 | 90 | RHC800035 | RHG800085 | RHG800054 | RHG800100 |
| 480 | 3520 | 10 | 282 | 90 | RHC800036 | RHG800086 | RHG800055 | RHG800101 |
| 480 | 3800 | 10 | 312 | 90 | RHC800037 | RHG800087 | RHG800056 | RHG800102 |
| 480 | 4200 | 10 | 341 | 90 | RHC800038 | RHG800088 | RHG800057 | RHG800103 |
| 480 | 4600 | 14 | 371 | 90 | RHC800039 | RHG800089 | RHG800058 | RHG800104 |
| 480 | 5000 | 14 | 404 | 90 | RHC800040 | RHG800090 | RHG800059 | RHG800105 |
| 480 | 5700 | 14 | 478 | 90 | RHC800041 | RHG800091 | RHG800060 | RHG800106 |
| 480 | 6000 | 14 | 511 | 90 | RHC800042 | RHG800092 | RHG800061 | RHG800107 |
If the parameter is not suitable for you,Please contact me.We have a professional elite team,will provide the professional knowledge and drawings for you!
Product Coding Rule Table:
Applications
--Laminating paper,plastics,metal,textiles
--Coating paints,adhesives
--Stretching foil
--High temperature disinfection
--Food catering backing,heating and heat preservation
--Industrial production oven.
--Car painting
--Wood drying and preheating before painting
--Beauty apparatus,infrared physical therapy care
--Drying for Shoes making machine
--Heating of PET preforms for bottles prior to strech-blow molding
--Heating PVC flooring prior to embossing
--Curing ink on plastic
--Curing water based reflective paint on aluminium light cluster
--Coating of lacquer to preserve metal tubes for pipelines
--Gelling and curing of powder coating on metal bottle openers
Our Services & Strength
* Expert sales teams are responsible for accurate communication.
* Professional technical teams are responsible for new product development.
* Technical production teams are responsible for assembly line production.
* Expert quality inspection teams are responsible for quality inspection.
* Experienced after-sales teams are for all customers.
FAQ
Q1. Can all the products be customized?
A: all infrared ray, ultraviolet ray product can be customized, equipment and repair also can come graph processing.
Q2. Can you do the design for us?
Yes. We have a professional team having rich experience in box design and manufacturing. Just tell us your idea and we will help to carry out your ideas into perfect packing boxes. It does not matter if you do not have someone to complete files. Send us high resolution images, your logo and text and tell us how you would like to arrange them. We will send you finished files for confirmation.
Q3. What about the lead time for mass production?
It depends on the order quantity and the season you place the order. Generally speaking, the lead time of MOQ is about 15 to 20 days. We suggest that you start inquiry at least two months before the date you would like to get the products at your country
Q4. How I make the order from your company?
Usually we will quote you the best price within 24 hours after your inquiry.
As for samples, it will take 5-7 days.
If it's special customized heating lamp, the time needed for samples could be longer.
Q5. What is your term of delivery?
We accept FOB, CIF, EXW etc. Usua
lly our company send Express by DHL,UPS, FedEx,TNT,EMS. If weight is heavy, our company suggest it by Air or Sea.
